Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, ROHS, ISO9001
Model Number: HP-880M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 60-180
Payment Terms: L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 50 units per month

Binocular MUTI-FUNCTION BINOCULARS INSTRUCTIONS

Description
Digital Zoom: 2x And 4x Pixel Count: 640 X 480
Detector Type: Uncooled Focal Plane Array Image Processing: Digital Detail Enhancement, Image Fusion, Picture-in-Picture
Display: 640 X 480 LCD Focus: Manual
Operating Temperature: -20°C To +50°C Storage Temperature: -40°C To +70°C
Pixels: 1280x720 Objective Lens Diameter: 50mm
Video Format: Analog Video: PAL(25Hz) Lens: 75mm, F1.0
Refresh Rate: 50 Hz Pixel Pitch: 30μm
Image Storage: 4G Memory Card Display Type: OLED Display
Focal Length: 35mm/F1.2 Weight: 850 Grams
Operating Voltage: 12v Power Consumption: Power Consumption
Position: Beidou Or GPS
Highlight:

multi-function thermal imaging binoculars

,

thermal binoculars with instructions

,

thermal imaging binoculars with warranty

Product Description:

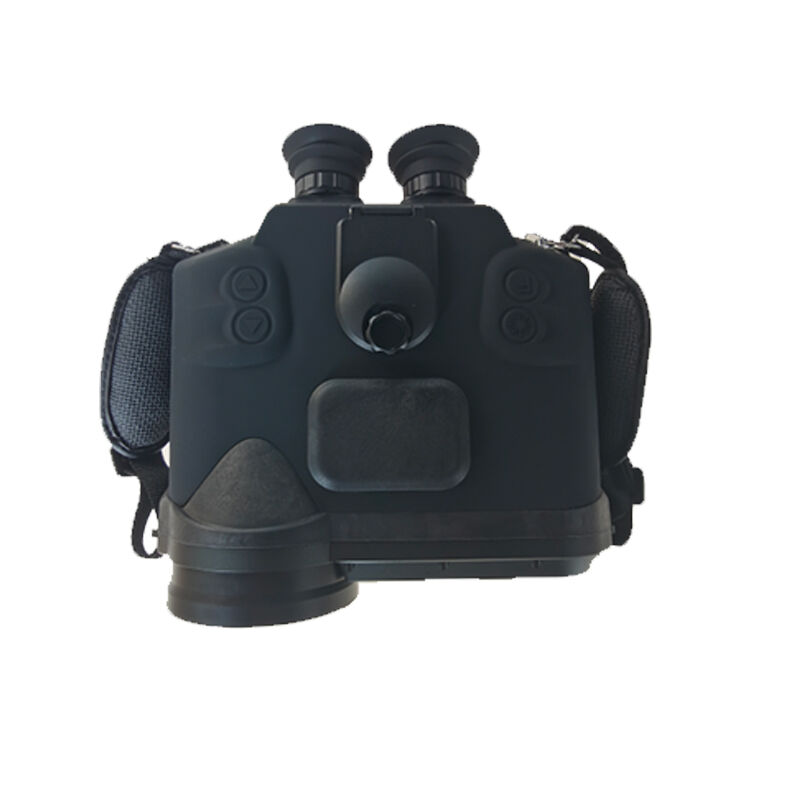

The HP-880M is a multi-purpose reconnaissance system, advanced hand-held, fully integrated muti-function thermal imager binocular, which allows the user to detect and located target. It can get the coordinates and directions of the targets in day and night with thermal image or day light Camera. AGT-960 series equipped with a latest UN-cooled thermal imager, eye safe laser range finder, integrated GPS/GNSS, digital magnetic compass (DMC) and visible light camera. The system provides silent operation, advanced target location and image storage capability to work well in a wide variety of battlefield conditions.

Technical Parameters:

Model: HP-880M
Thermal Imager
Detector Type Uncool-ed VoX
Array Size/Resolution 640×512
Spectral Band 8~12μm
Detector Pitch 12μm
Frame Rate 50Hz(PAL)
Polarity White hot/Black hot(pseudo-color)
NETD ≤40mK@25℃,F#1.0
Contrast/Brightness Auto/Manual
Image Processing
Image Denoise Digital filter
Image Enhancement Digital Detail Enhancement
E-Zoom 1~4×
Infrared Optical
Focus mode Motorize Focus
IR Lens f=75mm, F# 1.0
Field of view 5.9°×4.7°
Focus Range 8m~∞
Micro Display 2×0.5’ OLED(1024×768 pixels )
Eyepiece Magnification 12×
Day Light Camera
Sensor Colour CMOS
Optical Zoom 12×
FOV(Horizon) 53.6°~4.6°
Laser Range Finder
Wave Length 1.54μm (Eye safety)
Range distance 50m~5000m(Max 6000m)
Accuracy < ±1m
Accuracy Rating > 98%
Laser Point
Wave Length 850nm
Classification Class III
GPS /GNNS
Accuracy CEP< 2m
Digital Magnetic Compass
Azimuth <±0.8° (RMS)
Pitch <±0.2° (RMS)
System Parameters
Target Coordinate Calculation Real Time
External interface USB2.0/RS-232C
Mount Adaptor 1/4' Standard tripod mounting
Power Supply
Battery 7.2V/3200mAH; 4×18650 Lithium ion
Average Power <5W (Observation mode)
Operating Time ≥ 8hours (Observation Mode)
Environmental
Protect standard MIL STD 810F
Operating Temperature -32℃~+55℃
Storage Temperature -40℃~+60℃
Humidity 5%~95%(Non-Condensing)
Vibration

Sweep frequency:

5-200-5Hz,Acceleration 2.5g

Impact 10g/11ms Half sine wave
Physical parameters
Dimension(mm) 255×230×95(L×W×H)
System weight ~2.1Kg
Housing Magnesium alloy/Poly-carbon/Rubber
Suitcase Dimension (mm) 460×350×180(L×W×H)
Observation Distance

Man

(USDD)

Detection ~4000m(IR)
Recognition ~1500m(IR)

Vehicle

(NATO Tank)

Detection ~7500m(IR)
Recognition ~3000m(IR)

Applications:

Thanks to its digital zoom options of 2x and 4x, users can easily focus on distant objects without losing image clarity. This feature is highly beneficial for hunters tracking game, law enforcement officers conducting covert operations, and industrial inspectors checking equipment in low visibility conditions. Moreover, the binoculars' video output supports both NTSC and PAL formats, allowing seamless integration with various recording and display devices.

The product is powered by 2 CR123A lithium batteries, ensuring long-lasting operation and portability. It operates efficiently within a wide temperature range of -20°C to +50°C, making it suitable for use in extreme weather conditions, from cold winter nights to hot summer days. This durability and versatility make the Hope-Wish HP-DG a reliable companion for adventure seekers and professionals alike.

As a cheap thermal camera option without compromising on quality, the Hope-Wish HP-DG stands out in the market by combining affordability with advanced features. Its robust construction and user-friendly interface make it accessible to beginners while still meeting the demands of experienced users. Whether you are looking for a thermal imaging camera for personal use or professional applications, this model represents an excellent investment.
