Product Description:

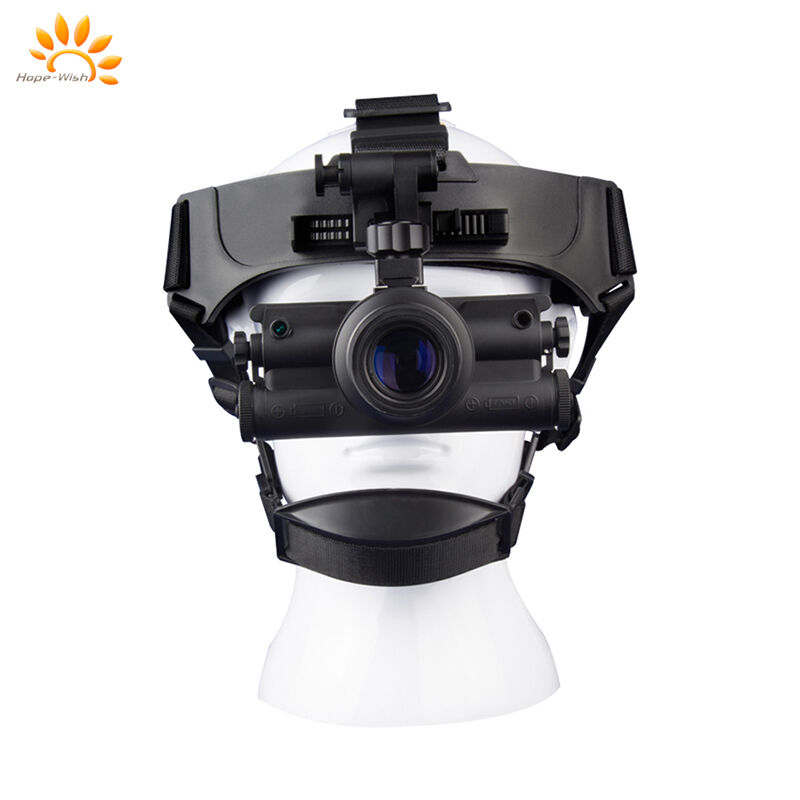

HP-DG3051 is light and compact multifunctional night vision devices, which can be worn on the head or helmet to bring convenience to users for night observation. The binocular monocular design also brings users comfortable observation experience. The built-in long-distance infrared auxiliary light source ensures that you can also observe clearly in a completely dark environment. Can use CR123 or AA batteries, no accessories required.
In summary, the Thermal Imaging Binoculars combine advanced thermal sensing within the 7.5 - 13.5 μm spectral range, a generous 7.5° X 6.0° field of view, manual focus control, and versatile video output options to deliver a high-performance handheld thermal camera experience. Its rugged construction and wide storage temperature range further ensure dependable operation under the most challenging conditions. Whether you require a reliable Night Vision Scope for tactical operations, wildlife tracking, or outdoor adventures, these binoculars provide the clarity, precision, and durability necessary to excel in the dark and beyond.
Features:
1. Added Auto working mode: In Auto mode, when the ambient illuminance is lower than 0.05lux, the infrared auxiliary light source will be automatically turned on, and when the ambient illuminance exceeds 0.1lux, the infrared auxiliary light source will be automatically turned off.
2. The helmet can be adjusted freely: the helmet device can be adjusted freely according to the size of the head of different users.
3. Multi-layer coating standard: ultra-broadband multi-layer anti-reflection coating can suppress the broadband reflection of the glass surface of the lens, reduce light loss, and allow more light to pass through the lens to obtain better observation effects.
4. Automatic brightness adjustment: When the brightness of the surrounding environment changes, the brightness of the image we see from the night vision device remains unchanged, which can ensure stable observation and protect eyesight.
5. Anti-glare protection: When the ambient light intensity exceeds 40Lux, the power of the device will be automatically turned off within 10 seconds to prevent damage to the image intensifier.
6. Low battery indicator: When the battery is low, the green indicator light at the edge of the green fluorescent screen can be observed to flicker through the eyepiece.
Technical Parameters:
| Model |
HP-DG3051 |
| IIT |
Gen3 |
| Resolution (lp/mm) |
57-64 |
| Photocathode type |
GaAs |
| S/N (dB) |
21-24 |
| Luminous sensitivity (μА/lm) |
1500-1800 |
| MTTF (hrs) |
10,000 |
| Magnification |
1x |
| FOV (deg) |
40 |
| Detection distance (m) |
220-240 |
| Diopter (deg) |
+5/-5 |
| Lens system |
F1.2, 25.8mm |
| Range of focus (m) |
0.25--∞ |
| Dimensions (mm) |
149x121x51 |
| Weight (g) |
413 |
| Power supply (v) |
2.0-4.2V |
| Battery type (v) |
CR123A (1) or AA (2) |
| Battery life (hrs) |
80(w/o IR)
40(w IR)
|
| Operating temperature(℃) |
-40/+60 |
| Environmental rating |
IP67 |
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
