Product Description:

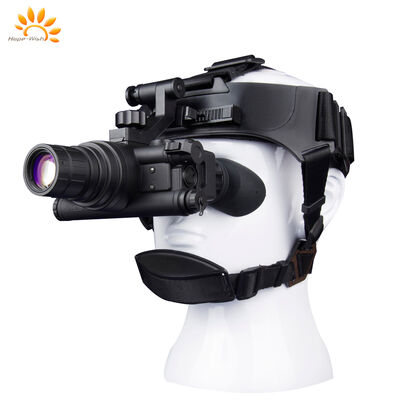

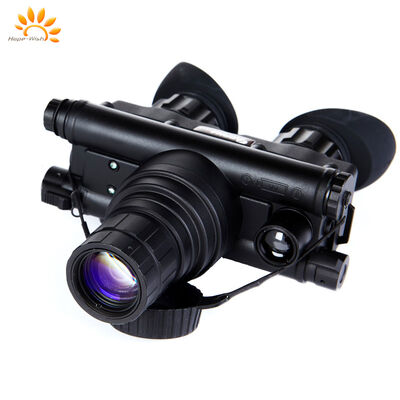

HP-DG2071 adopt high-performance ultra-second-generation third-generation image intensifiers, which have excellent performance, small size, light weight, clear imaging, powerful functions, easy operation, adjustable eye distance, and magnification can be changed by changing the objective lens , the biggest feature is that the eye distance can be adjusted at will according to the user's requirements, and the image seen at night can be converted into video output and so on. The product can be connected to the helmet, and can also be used separately for handheld observation. The night vision device has a built-in dual-band infrared auxiliary light source and an automatic anti-glare protection system.
In summary, these binoculars provide a comprehensive package for thermal imaging enthusiasts and professionals alike. With manual focusing, a wide operating temperature range of -20°C to +50°C, a spectral range of 7.5 to 13.5 μm, and sophisticated image processing including Digital Detail Enhancement, Image Fusion, and Picture-in-Picture, they set a new standard in handheld thermal cameras. The inclusion of NTSC or PAL video output further extends their capabilities, making these binoculars a versatile and powerful night vision scope for diverse applications.
Features:
1. Waterproof and dustproof IP67: the device can work normally under 1m deep water for 1 hour
2. Direction-sensing automatic switch: When you don’t need to use the device temporarily, you can press a button on the helmet to raise the device up and then let go, and the device will automatically turn off at this time. When it is necessary to continue to use, press the same button to put down the device to the observation position, and the device will automatically return to the working state at this time.
3. Standby zero consumption: When not in use for a long time, the battery will not lose power when placed in the battery holder
4. The battery cover spring is embedded: it can better contact the battery and the spring is not easy to be damaged, and it is easier to twist the battery cover.
5. Ordinary battery: Two AA batteries can be used normally, equipped with a battery anti-reverse circuit, the battery will not damage the product if it is installed reversely.
6. Added a variety of working modes: strong light protection forced off, direction detection forced off, automatic mode, etc. In Auto mode, when the ambient illuminance is lower than 0.05lux, the infrared auxiliary light source will be turned on automatically, and when the ambient illuminance exceeds 0.1lux, the infrared auxiliary light source will be automatically turned off.
Technical Parameters:
| Model | HP-DG2071 |
| IIT | Gen2+ |
| Magnification | 1x |
| Resolution (lp/mm) | 57-64 |
| Photocathode type | S25 |
| S/N (dB) | 17-21 |
| Luminous sensitivity(ìÀ/lm) | 500-600 |
| MTTF (hrs) | 10,000 |
| FOV (deg) | 40 |
| Detection distance (m) | ﹥220 |
| Diopter (deg) | +5/-5 |
| Lens system | F1.2, 25.8mm |
| Range of focus (m) | 0.25--∞ |
Adjustable interpupillary
distance(mm) |
58-72mm |
| Wavelength for IR illuminator |
808nm & 850nm |
| Dimensions (mm) | 152x143x58 |
| Weight (g) | 450 |
| Video output | Video |
| Power supply (v) | 2.0-4.2V |
| Battery type (v) | AA (2) |
| Battery life (hrs) | 80(w/o IR)
40(w IR) |
| Operating temperature(℃) | -40/+60 |
| Relative humility | 98% |
| Environmental rating | IP67 |
Applications:
This product has strong practicability and can be used for night hunting, night fishing, forest fire prevention, power line inspection, home security, public security night patrol, investigation and evidence collection, frontier anti-smuggling, etc. It is an ideal device for both military and civilian use.
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
