Product Description:
The Portable Infrared Camera is a versatile and advanced device designed for various applications, offering exceptional imaging capabilities in a compact and easy-to-use package. With its multiple image modes, including Thermal, Visual, Picture-in-Picture, and Fusion, this portable infrared camera provides users with flexibility and precision in capturing and analyzing thermal data.
Equipped with cutting-edge technology, this handheld thermal imager utilizes Night Vision Infrared technology to deliver high-quality images even in low-light or dark conditions. Whether used for security monitoring, search and rescue operations, wildlife observation, or industrial inspections, this monocular camera ensures reliable performance and accurate results.

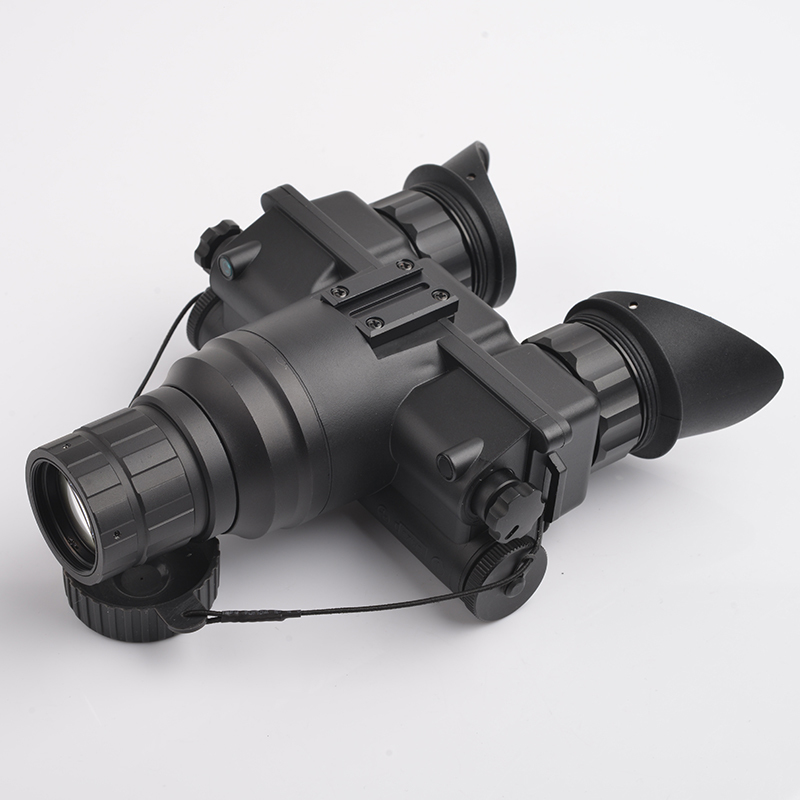

HP-NG2051 are light and compact multifunctional night vision devices that can be worn on the head or on a helmet to bring convenience to users' night observation. The binocular and monocular design brings comfortable observation to users. Experience. The built-in remote infrared auxiliary light source ensures that you can also observe clearly in a completely dark environment. CR123 or AA batteries can be used, and the standby time can reach 80 hours.
Features:
Optional 2nd generation + or quasi 3rd generation image enhancement tube
★Hands-free use with headset/helmet, automatically power off after turning up the night vision goggles
★Change the objective lens to change the magnification, optional 4x extender or 6x lens
★Optional separate infrared intensifier
★Automatic adjustment of image brightness and automatic shutdown of bright light (when the light conditions exceed the system default value, it will automatically shut down or reduce the image brightness)
★With IP68 waterproof and dustproof level (optional)
★Built-in infrared indicator light and low battery indicator (displayed in the eyepiece)
★Multi-layer coating standard: Ultra-wideband multi-layer antireflection coating can suppress the broadband reflection on the glass surface of the lens, reduce the loss of light, and allow more light to pass through the lens to obtain a good observation effect
★The night vision device has anti-glare and anti-dazzle functions
★Zero standby consumption: when not used for a long time, there will be no power loss when the battery is placed in the battery canister
★Meticulous workmanship, strong and durable
★Battery cover spring embedded
Technical Parameters:
| Model |
HP-NG2051 |
| Enhancement Tube |
Gen2+/Super Gen2+ |
| Resolution (lp/mm) |
48-65 |
| Cathode Surface |
S25 |
| Signal to Noise Ratio (dB) |
17-21 |
| Optical Sensitivity (microampere/lumens) |
550-650 |
|
Trouble-free
Time(h)
|
10000 |
| Magnification |
1x |
| FOV |
40° |
| Diopter Adjustment Range |
+5/-5 |
| Lens system(mm) |
F1.2, 25.8 |
| Objective Lens Adjustment Range |
0.25—∞ |
| Volume(mm) |
150x121x58 |
| Weight(g) |
461(770 with helmet) |
|
Power Supply
Voltage (V)
|
2.0-4.2 |
| Battery Type |
CR123A (1) or AA (2) |
| Continuous working time (h) |
80h(Without Infrared) |
| 40h(Infrared) |
| Operational temp. (°C ) |
-40/+60 |
| Dustproof and Waterproof Grade |
IP68(Optional Accessories) |
|
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
