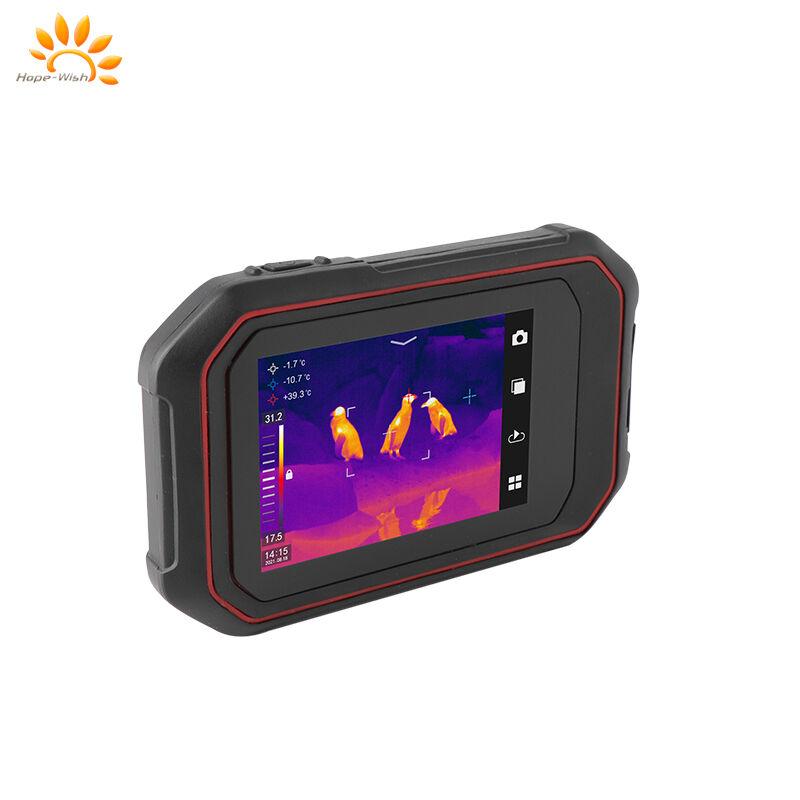

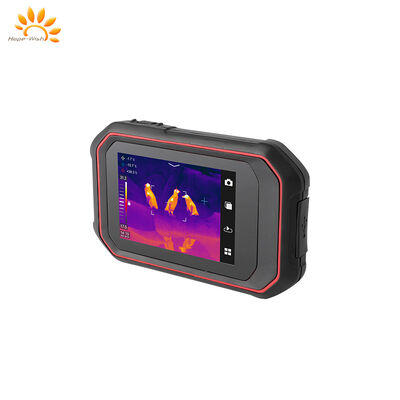

handheld thermal camera Less Than 1kg Lightweight IR Camera

handheld thermal camera Less Than 1kg Lightweight IR Camera
handheld thermal camera Less Than 1kg Lightweight IR Camera handheld thermal camera Less Than 1kg Lightweight IR Camera

Large Image :  handheld thermal camera Less Than 1kg Lightweight IR Camera

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, ROHS, ISO9001
Model Number: HP-MTC-C25
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 60-180
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 units per month

handheld thermal camera Less Than 1kg Lightweight IR Camera

Description
Laser: 915nm NIR Effective Visual Distance: 700-1600m
Image Modes: Thermal, Visual, Picture-in-Picture, Fusion Technology: Night Vision Infrared
Weight: Less Than 1kg Battery: Lithium , AC220V Adapter,
Display: 3.5 Inch LCD
Highlight:

lightweight handheld thermal camera

,

portable infrared camera under 1kg

,

handheld IR camera with warranty

Product Description:

Professional temperature measurement
The high and low temperatures could capture real-time point temperature measurement, line temperature measurement, regional temperature measurement, and temperature alarm

Multi-mode image display
Infrared/visible light/picture-in-picture/fusion mode 6 pseudo-color modes to assist observation



Features:

  • Wi-Fi function
  • Data upload
  • 3.5 inch LCD touch screen
  • Real-time analysis
  • Collaborative detection
  • Brand new UI design
  • Simple,direct,and promoted experience
  • Gravity sensor Horizontal and vertical freely


Technical Parameters:

ItemsHP-MTC-C25
DetectorTypeVOx
Resolution256×192
ImageLens6.0mm/F1.0
Spatial resolution2.0mrad
NETD≤0.05℃@30℃
Frame rate50Hz
FocalFocus free
Spectral range8-14um
DisplayLCD3.5”TFT color LCD, touch screen
Image displayInfrared image and visible light image can be quickly switched, and infrared image and visible light image can be picture-in-picture and fusion
Palette6 kinds of palettes to choose from (including iron red, rainbow, black and white, black and white reverse, etc.)
Image ProcessingAutomatic/manual adjustment of contrast and brightness, automatic enhancement mode
MeasurementMeasurement range-20℃ ~ +300℃
Precision±2°C or ±2% (reading range), whichever is greater
Temperature measurement correctionAutomatic / manual
Measurement modeReal-time movable point, movable area (maximum temperature, minimum temperature, and average temperature measurement), line temperature measurement, temperature alarm (sound, color)
Power systemBatteriesRechargeable lithium battery, built-in
Battery working time≥4h
Charging typeUSB charging
Power saving modeAutomatic sleep and shutdown
OthersStorageBuilt-in 16G
FlashlightSupport
Gravity sensorYes, the UI automatically turns the direction
LanguageChinese, English and other languages
ColorRed & Black
Image formatJPEG, with infrared raw measurement data images;
MPEG4, with infrared raw measurement data images;
EnvironmentWorking temp.-15℃-+50℃
Storage temp.-40℃~+70℃
Humidity≦95%(non-condensing)
EncapsulationIPX6
Shock resistance30G,IEC68-2-29
Vibration resistance2G,IEC68-2-6
Anti-drop2m
PhysicalWeight200g
Dimension135mm×90mm×26mm
InterfacePortUSB Type C,data transfer and charging
WifiYes, connecting to the Android App via WiFi, you can analyze and upload data in real time.


Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

handheld thermal camera Less Than 1kg Lightweight IR Camera 0handheld thermal camera Less Than 1kg Lightweight IR Camera 1
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
handheld thermal camera Less Than 1kg Lightweight IR Camera 2handheld thermal camera Less Than 1kg Lightweight IR Camera 3handheld thermal camera Less Than 1kg Lightweight IR Camera 4
