| Detector Type: | Uncooled Focal Plane Array | Display: | 640 X 480 LCD |
|---|---|---|---|
| Start-up Time: | Less Than 5 Seconds | Image Processing: | Digital Detail Enhancement, Image Fusion, Picture-in-Picture |
| Spectral Range: | 7.5 - 13.5 μm | Focus: | Manual |
| Power Supply: | 2 X CR123A Lithium Batteries | Objective Lens Diameter: | 50mm |
| High Light: | Night Vision Scope Thermal Imaging Binoculars,50mm Lens Diameter Thermal Imaging Monocular |
||

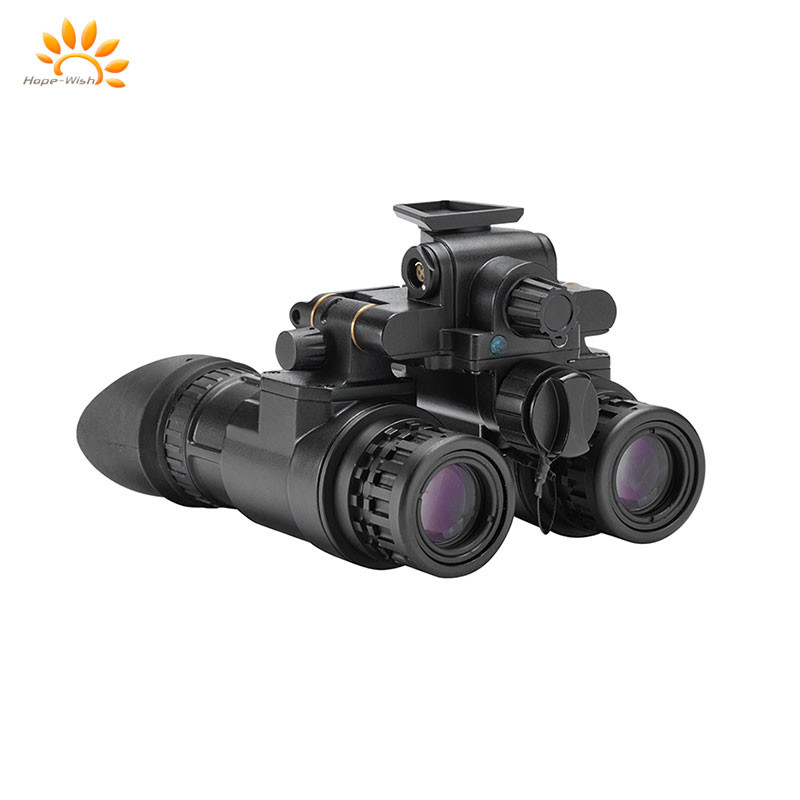

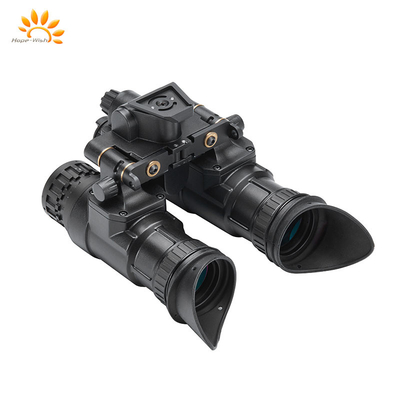

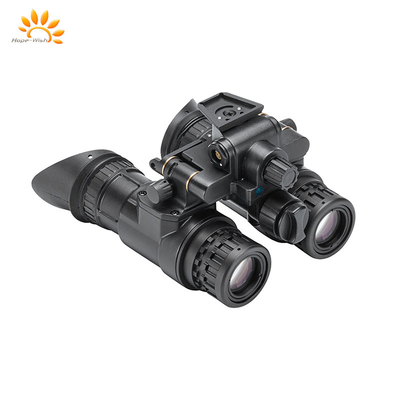

Can be used by hand, can also be used with head wear and helmet installation; optional high magnification lens
High-performance 2nd generation + image intensifier, an advanced dual-channel design, and uses two high-performance image intensifier tubes to provide clearer images in dark environments. Can be connected with digital cameras, camcorders, mobile phones, etc.
Eye distance locking function: The eye distance can be adjusted continuously within the range of 50-80mm, and the eye distance can be locked manually.
With IP68 waterproof and dustproof level (optional)
Multi-layer coating standard: Ultra-wideband multi-layer antireflection coating can suppress the broadband reflection on the glass surface of the lens, reduce the loss of light, and allow more light to pass through the lens to obtain a good observation effect
Quick switching between single-eye and double-eye viewing modes: the single-side lens barrel can be turned up and down independently by 140°, realizing fast switching between single-eye and double-eye viewing modes, and has an automatic shutdown function when the single-side lens barrel is turned up to 45°.
Our Thermal Imaging Binoculars are also equipped with an IR Illuminator, which allows for enhanced visibility in low light conditions. This feature is especially useful for night-time use, providing users with a clear view of their surroundings in complete darkness.
Whether you're in need of a cheap thermal camera for personal use or a professional thermal IP camera for your line of work, our Thermal Imaging Binoculars are the perfect solution. With their advanced features and durability, they are a reliable choice for all your
thermal imaging needs.
| Model | HP-DB2061 |
| Structure Appearance | Binocular |
| Intensifier tube level | Gen2+ |
| Resolution (line pair, lp/mm) | 48-65 |
| Magnification (X) | 1 |
| Field of view | 50 |
| Diopter adjustment range (diopter, °) | +5/-5 |
| Eye distance adjustment range (mm) | 55-80 |
| Lens | F1.2, 25mm |
| Focus range (m) | 0.25 - ∞ |
| Volume (L*W*H mm) | 115X178X58/115X105X85 |
| Weight(kg) | 0.612 |
| Switch style | Knob type |
| Supply voltage (v) | 2.6-4.2 |
| Power type | 1* CR123A battery |
| Standby time (hours) |
Battery power supply: 40h (infrared on) 80h (infrared off) |
| Battery box power supply: 300h | |
|
Strong light automatic power-off protection function |
Have |
| Direction sensing automatic switch function | Have |
| Infrared Auxiliary Light | Have |
| Infrared light wavelength (nm) | 850 |
| Multi-layer Broadband Coating | Have |
| Eye distance range lock function | Have |
| Operating Temperature Range (°C ) | -51 ~+49 |
| Storage Temperature Range (°C ) | -51 ~ +85 |
| Relative humidity | 5%-98% |
| Time between failures | 10000 Hours |
| Dustproof and waterproof level | IP65(optional IP68) |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Our Thermal Imaging Binoculars are packed with great care and attention to ensure they reach you in perfect condition. We use high-quality materials and sturdy packaging to protect the binoculars during transportation.
Each binocular is placed in a foam-lined box and securely wrapped with bubble wrap to prevent any damage during shipping. The box is then sealed and labeled with the necessary shipping information.
We offer different shipping options to suit your needs. Our standard shipping method is through reputable courier services, which usually takes 3-5 business days for delivery. We also offer expedited shipping for those in need of faster delivery, with options for overnight or two-day shipping.
For international orders, we use trusted international courier services to ensure timely and safe delivery. However, please note that international shipping may be subject to additional customs fees and import taxes, which are the responsibility of the buyer.
Once your order is shipped, you will receive a tracking number via email, which you can use to track the status of your package. Please note that shipping times may vary depending on the destination and any unforeseen delays.
We take great pride in our packaging and shipping process to ensure your Thermal Imaging Binoculars reach you in perfect condition. If you have any questions or concerns about your order, please don't hesitate to contact us.
Thank you for choosing our Thermal Imaging Binoculars and we hope you enjoy using them for all your outdoor adventures. Happy exploring!
