Product Details:
|
| Image Resolution: | 640 X 480 | Product Name: | Thermal Imaging Monocular |
|---|---|---|---|
| Dimensions: | 190 X 80 X 60 Mm | Storage Temperature: | –40°C To +60°C |
| Field Of View: | 20° X 16° | Power Supply: | 4 X AA Batteries |
| Weight: | 3kg | Humidity: | 95% (non-condensing) |
| Highlight: | 640 X 480 Thermal Camera Binoculars,Dustproof Thermal Camera Binoculars,Night Vision Heat Detection Binoculars |
||

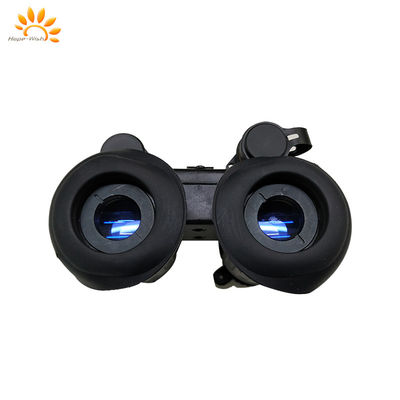

HP-DB2041 are very popular multifunctional night vision googles in the market. Can be held in the hand, can be worn on the head or helmet. The advanced dual-channel design utilizes two high-performance image intensifier tubes to provide clearer images even in dark environments. Watch with binoculars, protect your eyesight, and you will not feel eye fatigue even if you use it for a long time. The product has a wide range of applications, and is suitable for night field observation, night fishing, forest fire prevention, home security, night walking and driving, etc. It can also be used with cameras or video cameras for night scene shooting. It is an ideal outdoor night vision device.
1.Waterproof and dustproof IP67: the device can work normally under 1m deep water for 1 hour
2. Direction-sensing automatic switch: When you don’t need to use the device temporarily, you can press a button on the helmet to lift the device up to the top position and then let go, and the device will automatically turn off. 2. 3. When it is necessary to continue to use, press the same button to put down the device to the observation position, and the device will automatically return to the working state at this time.
4. Standby zero consumption: When not in use for a long time, the battery will not lose power when placed in the battery holder
5. The battery cover spring is embedded: it can better contact the battery and the spring is not easy to be damaged, and it is easier to twist the battery cover.
| Model | HP-DB2041 |
| IIT | Gen2+ |
| Resolution (lp/mm) | 57-64 |
| Photocathode type | S25 |
| S/N(dB) | 17-21 |
| Luminous sensitivity(μA/lm) | 500-600 |
| MTBF (hrs) | 10,000 |
| Magnification | 1x |
| FOV | 40 |
| Detection distance (m) | 220-240 |
| Diopter (deg) | +5/-5 |
| Lens system | F1.2, 25.8mm |
| Range of focus (m) | 0.25--∞ |
| Dimensions (mm) | 120 x 110 x 65 |
| Weight (g) | 628 |
| Power supply | 2.0-4.2V |
| Battery type (v) | 1 lithium battery |
| Battery life (hrs) | 80(w/o IR) 40(w IR) |
| Operating temperature(℃) | -40/+60 |
| Environmental rating | IP67 |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
We provide technical support and service for the Thermal Imaging Monocular. Our service includes:
If you are having any difficulties with your Thermal Imaging Monocular, please feel free to contact us. We are available to answer your questions and provide guidance on how to make the most of your product.
