Product Details:
|
| High Light: | ISO9001 Long Range Thermal Camera,1280×1024 Thermal Camera Long Distance,Aquaculture PTZ Thermal Imaging Camera |
||
|---|---|---|---|
Key Benefits:

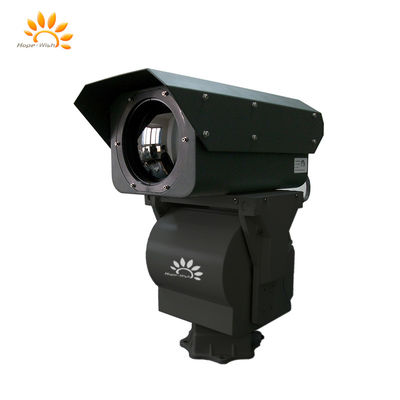

HP-TC12618C ultra-long range continuous zoom thermal imaging camera is based on the latest uncooled IR technology and continuously IR optical zoom. User could get a best imaging details with 1280×1024 resolution, advanced digital circuit and image processing algorithm. Special design of continuous zoom lens have detection distance 16km, suit for both seeking and watching. One integral aluminum alloy housing make sure the camera IP66 sealing rates and works well in harsh outdoor conditions.
HP-TC12618C series thermal camera integrate high sensitive FPA sensor, electronic and optical systems, could penetrate fog/dirt/rain/snow and image 24 hours.
Overview:
NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather.
Unique AS+DOE optical design and 3CAM high-precision optomechanical design suit for both large-scale seeking and long-distance watching.
Non-uniform image correction technology, stable working temperature without TEC, good image uniformity and dynamic range. SDE digital image processing, no image noise, 10 pseudo color image and B/W switch.
Digital control PT, 360° continuously rotation observation, no dead corner, stable operation, small dithering.
One integral aluminum alloy housing, weatherproof IP66, waterproof, anti-dust.
Technical specification:
| Model | HP-TC12618C |
| Detection | Vehicle: 16400m |
| Human: 5800m | |
| Recognition | Vehicle: 4200m |
| Human: 1900m | |
| Sensor |
1,Detector:5th generation UFPA Vox Detector ; 2,Resolution:1280×1024 3,NETD:50mK(@25℃ F1.0) 4,Spectral range:12μm |
| NETD | 50mK(@25℃ F1.0) |
| Focal length |
1,Length: 30~180mm 2,FOV:28.7°×23.1°～4.9°×3.9° 3,optical zoom, auto focus ; 4,AS+DOE advanced optical design, high infrared transmission; 5,Applied 3CAM high precision design; |
| IFOV | 0.067～0.4mrad |
| Image processing | |
| 2. SDE digital image processing | |
| 3. 10 pseudo color and B/W, B/W inverse | |
| 4. AGC | |
| 5. 1-8X continuous digital amplification,Optical electronic relay zoom | |
| Housing |
1,Material:aluminum alloy housing,waterproof; 2,Structure:Integral single window design ; 3,Surface:PTA coating, anti sea water corrosion; 4,Sealing rate:IP66 5,Built-in temperature controller,thermal balance design; 6,Interface:aviation waterproof connector ; |
| PTZ(optional) |
1,Load:50kg military level digital PT ; 2,Angle:pan 0～360°,tilt -45°～+45° 3,Speed:0.01～30°/S high precision variable speed control and locking ; 4,Preset:80 presets,support lens zoom and focus memory,variable speed scanning 0～30°/S ,support apple peel scanning function;
|
| Enhancements |
1. Strong light protection: support, anti sun burn function 2. Intelligent analysis: support intrusion detection, out-of-bounds detection, entry/exit area detection, motion detection 3. Scene mode: support multi-configuration scene, adapt to different environment applications 4. Auto focus tuning: support remote auto focus accuracy parameter adjustment to adapt to different scenarios 5. Lens Servo: Support lens preset, focal length return, focal length positioning functions 6. Full life management: health index recording function, support working time, shutter times, working temperature, extreme temperature, etc. 7. Remote maintenance: with fault query, self-check, remote restart functions; online upgrade, remote upgrade 8. Configuration file: support configuration file import and export functions |
| Consumption ,weight |
1,Consumption(PT included):min.40W,max.120W 2,weight(PT included):≤45kg |
| Interface | 1. RJ45 interface |
| 2. Remote OSD setting | |
| 3. PAL/NTSC video output | |
| 4.AC/DC24V, anti-reverse connection protection | |
| 5. Waterproof connector | |
| Environment indicator |
1,Working temperature:-25℃～+55℃(-40℃ optional) 2,Storage temperature:-35℃～+75℃ 3,Humidity:<90% 4,Anti-shock:0.2g(GB/T15211—20135.4 harshest level 2 standard) 5,Anti-resistance:15g(GB/T15211—20135.3 harshest level 3 standard) 6,Anti-lightening:power 4000V,signal 2000V 7,Anti salty:PH6.5～7.2,continuous sprarying 48 hours ; 8,Protection rate:IP66 |
