Product Details:
|
Pan: | N × 360 ° Continuous Rotation | Spectral Range: | 7.5μm To 14μm |
---|---|---|---|
Temperature Range: | -40°C To +70°C | Minimum Focus Distance: | 5-10KM |
Weight: | 15kg | Tilt: | -45 ° ~ + 90 ° |
Detection Range: | 5-10KM | Sensor Type: | PTZ Thermal |
Highlight: | PTZ Thermal Camera,Dual Sensor Thermal Camera,Long Distance Thermal Camera |

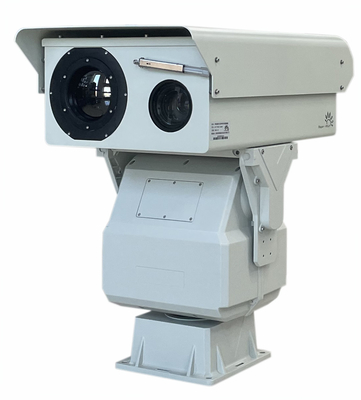

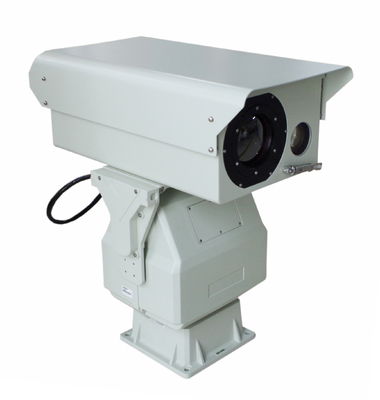

Equipped with advanced features and state-of-the-art technology, the Long Range Thermal Camera sets a new standard for long-distance thermal imaging. Its precision optics and sophisticated thermal sensor ensure exceptional image quality and thermal sensitivity, enabling users to detect and identify objects, individuals, and anomalies with ease.
Whether used for surveillance, security, or monitoring applications, the Long Range Thermal Camera excels in providing critical thermal imaging capabilities for long-range scenarios. Its versatility and reliability make it a valuable asset for organizations and professionals who require dependable thermal imaging solutions for their operations.
Model | HP-TVC6511-2150 |
Detection | Vehicle: 8.6km,Human:3.4km |
Identification | Vehicle:2.4km, Human: 900m |
Thermal Camera System | |
Sensor | 5th generation FPA VOx uncooled detector |
640*512 resolution (optional 384*288 resolution) | |
Spectral range | 7.5~14μm |
NETD | 50mK (@25℃ F1.0) |
Focal length | 25mm~105mm, 5X continuous zoom, auto focus |
FOV | 30°X23°~6.2°X4.6° |
Image process |
1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display 5. NUC correction: automatic / manual correction, background correction |
Lens Control |
1.Zooming: Electrical Zoom. 2.Focusing: Manual/Auto Focus 3. Optical machine: 3CAM mode and AS+DOE optical structure, high infrared over transmission, zoom process without virtual focus, smaller axis. |
Visible Camera System | |
Camera | 1/2.8” star level CMOS, 0.05lux/0.01lux color to B/W CCD |
2 MP ,1920X1080 | |
Automatic ICR switch | |
H.264/H.265 MPEG4/MIPEG | |
32Kbps~16Mbps,60Hz30 FPS | |
Visible lens | 8mm~320mm, 2MP, 40X zoom, auto focus |
Optical IR correction design, diurnal focus | |
Housing | |
Material | High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated |
Structure | Integrated single-window design |
Surface coating | PTA three-resistance coating, Seawater corrosion resistance |
Temp. Control | Built-in thermostat, design of thermal equilibrium |
Interface | Aviation waterproof plug |
PTZ | |
Load Capacity | 30kg |
Range/Speed | Range:Pan: 0~360°, Tilt: +45°~-45°; Speed: Pan: 0.01~60°/S, Tilt: 0.01~30°/S |
Preset | 255 |
Scan | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising. |
Interface | |
Network Interface | RJ45 |
Network Protocol | Support TCP/IP, UDP, IPv4/v6; Support HTTP,RTP,RTSP,NFS,HDCP,NTP,SMTP,,PPPoE,DNS, FTP, Onvif |
Power Supply | AC/DC24V, anti-reverse connection protection |
Environment Parameter | |
Working/Storage Temp. | Working temperature: -25℃~+60℃(-40℃for optional); Storage temperature: -45℃~70℃ |
Seismic/Impact Resistance | 0.2g/15g |
Anti-lighting | Built-in auto Fuse-protected device, Power 4000V,Signal 2000V |
Weight & Power Consumption | |
Weight: 35kg (include PT); Power consumption: 150W |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
The Long Range Thermal Camera product by Hope-Wish, model HP-TTVC, is a cutting-edge thermal imaging camera designed for long-distance surveillance and monitoring. With a place of origin in China, this high-quality camera is equipped with advanced features to meet the demands of various application occasions and scenarios.
With a weight of 15kg, the Long Range Thermal Camera is suitable for both stationary and mobile installations, making it ideal for applications such as border security, perimeter surveillance, wildlife monitoring, and search and rescue operations. The camera's minimum focus distance of 5-10KM allows for long-range detection capabilities, enabling users to monitor vast areas with precision.
The temperature range of -40°C to +70°C ensures reliable performance in extreme weather conditions, making the camera suitable for both hot and cold environments. The PTZ thermal sensor type provides high-quality thermal imaging, allowing users to detect objects and individuals with clarity even in low-light conditions.
Equipped with a tilt range of -45 ° ~ + 90 °, the Long Range Thermal Camera offers versatile viewing angles, making it suitable for monitoring both horizontal and vertical spaces. Whether used for surveillance in remote locations, industrial applications, or defense and security purposes, this camera delivers exceptional performance and reliability.
Overall, the Long Range Thermal CameraThermal Imaging Camera by Hope-Wish is a valuable tool for long-distance thermal imaging applications, providing clear and accurate thermal data for various scenarios. Its advanced features and durable design make it a versatile solution for professionals in need of reliable long-range surveillance capabilities.
The Long Range Thermal Camera product offers comprehensive and reliable Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our technical support team is dedicated to assisting customers with any product-related inquiries, troubleshooting, and maintenance needs. Additionally, we provide a range of services such as installation support, repair services, and product training to enhance the overall user experience.
Q: What is the brand of this Long Range Thermal Camera?
A: The brand of this camera is Hope-Wish.
Q: What is the model number of this Long Range Thermal Camera?
A: The model number of this camera is HP-TTVC.
Q: Where is this Long Range Thermal Camera manufactured?
A: This camera is manufactured in China.
Q: What is the maximum range of this Long Range Thermal Camera?
A: The maximum range of this camera is X meters.
Q: Does the Long Range Thermal Camera come with any warranty?
A: For warranty-related information, please refer to the product warranty documentation.
