Multi Functional Heat Detecting Binoculars Handheld Cooled 320 × 256 With 10km Detection

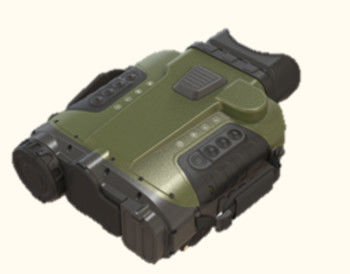

Large Image : Multi Functional Heat Detecting Binoculars Handheld Cooled 320 × 256 With 10km Detection

Product Details:

Place of Origin:	China
Brand Name:	Hope-Wish
Certification:	CE,FCC
Model Number:	HP-FCT330

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	wooden case
Payment Terms:	L/C, T/T, Western Union

Contact Now

Multi Functional Heat Detecting Binoculars Handheld Cooled 320 × 256 With 10km Detection

Description

Resolution:	320×256	CCD:	1/4”
Detector:	Mid-wave Cooled FPA, MCT	Video Format:	Analog Video: PAL(25Hz)
Digital Zoom:	×1, ×2, ×4	Product Name:	Heat Detecting Binoculars
High Light:	thermal vision binoculars , thermal camera binoculars

Multi-functional Handheld Cooled Thermal Imaging Binocular with 10km Detection

Features:

Compact design;
Continuous zoom: while tracking, user can zoom in for closer observation of target.
Multi-components, all in one: an IR system combined with GPS, E-compass and LRF provides user precise position, thus ensuring the target is hit with zero error;
Flexible image display: video can be either displayed on color OLED of this camera or viewed on a bigger screen in control center;
Storage: extendable to 16GB
Max storage: 5 hours video/10000 pictures
Digital video compression: 100 megabits Ethernet, video compressed(H.264) to relieve network loads.

Application:
Patrol ;Surveillance ;Detection ;Security surveillance ;Military / border / customs security .

Model	HP-FCT330	HP-FCT630			HP-FCT3324
IR detector
Detector	Mid-wave cooled FPA, MCT
Resolution	320×256	640×512			320×256
Pixel size	30μm	15μm			30μm
Spectral response	3.7μm ~4.8μm
Lens
Focal length	30mm~300mm continuous zoom, auto focus.				60mm/240mm, bi-FOV
F#	4.0
FOV	18.18°×14.59°~2.29°×1.83°				9.15°×7.32°~2.29°×1.83°
Detection
Human (1.8m×0.5m)	Detection: 6.5km Recognition: 2.5km	Detection: 8.6km Recognition: 4.2km			Detection: 6.5km Recognition:2.5km
Tank (2.3m×2.3m)	Detection: 9.2km Recognition:　4.1km	Detection: 13.4km Recognition: 7.2km			Detection :9.2km Recognition: 4.1km
Visible camera
Resolution	640×512	752×582			800×600
Focal length	120mm fixed focus	3.3mm ～120mm			50mm
CCD	1/4”	1/4”			1/4”
Video format	Analog video: PAL(25Hz) Network video(100M)
OLED eyepiece	0.5 inch high-resolution OLED 800×600
Digital zoom	×1, ×2, ×4
Image enhancement	Auto image filter, DDE, partition loads and blank-off(IR526B is equipped with micro-scanning enhancement function).
Brightness / contrast	Auto / manual
Color mode	Hot-white / hot-black, color .
Storage
Storage	16G SD card
Picture storage	.JPEG format picture7000pcs					.JPEG format picture 10000pcs
Video storage	MP4 format video 5h					AVI no loss compression video 2.5h
GPS
Accuracy	±5m
E-compass
Resolution	0.1°
Precision	0.5(RMS)
LRF
Laser wavelength	1.57μm, eye-safe level.
Accuracy	±5m
Measuring distance	2.3m×2.3m target, ≥6km		5m×5m target, ≥10km		2.3m×2.3m target, ≥4Km
Power supply
Input power	24V adapter or standard lithium battery.
Battery working time	>4h					>5h
Interface
Electric interface	Power supply, serial port, USB, analog video port, network port
Mechanical interface	1/4 inch spider
Physical characteristics
Weight	5.2kg (4.7kg battery excluded)			5.0kg (4.5kg battery excluded)	＜3.5kg(battery included )
Dimension (eyepiece included)	368mm×255mm×111mm			378mm×247mm×118mm	360mm×236mm×118mm
