Product Details:
|
| NETD: | 50mK | Digital Zoom: | 2× |
|---|---|---|---|
| Sensor: | Uncooled UFPA Sensor | Color Mode: | Hot White/Hot Black |
| Feature: | GPS,LRF | Waterproof: | IP66 |
| High Light: | infrared night vision binoculars,thermal camera binoculars |
||

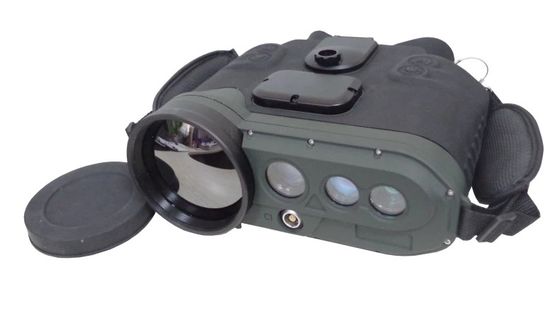

Multi Function long range thermal imaging binoculars with LFR GPS
Application
City safety, oilfield safety, railway security, night gathering evidence.
Feature
1. Incorporates long-range laser rangefinder, GPS and digital electronic compass, can locate the observation position and orientation of the target coordinates and other geographical information.
2. Based on the fifth generation miniaturized detection technology, ultra-compact design, reducing the overall size and cost, easy to carry and operation.
3. Aluminum alloy shell, shock resistance, IP67 protection, anti-rain, anti-dust.
4. NETD 50mk, higher than the sensitivity of conventional products, obtain more delicate picture quality, less effect by rain, snow and fog.
5. Unique AS optical design and high-precision optical machine design, excellent image quality
6. Excellent image non-uniformity correction without TEC temperature control, has good image uniformity and dynamic range.
7. SDE image detail enhancement, image smoothing noise-free, hot black, hot white, pseudo color optional, adaptable, easy to find low-contrast and hidden object.
Technical specification
| Model | MFC6110-5K |
| Detection | Vehicle 8600m; Human:3400m |
| Identification | Vehicle 2400m; Human: 900m |
| Sensor | 5th generation UFPA |
| Resolution | 640*512,25HZ |
| Spectral response | 7.5~14μm |
| NETD | 50mk |
| Digital zoom | 2× |
| Color mode | Hot white/Hot black |
| Lens | 100mm F1.0,motorized focus |
| FOV | 6.2×5 |
| LRF | 50~5000m, accuracy: ±1m, >98%(visibility>20km,reflectivity>30%) |
| Repetition frequency | 10~20 times/minutes |
| GPS location | Positional accuracy CEP<5m |
| Digital compass | 3D,accuracy<±1o |
| Eyepiece | 800×600 OLED ocular lens, with goggles, covert |
| Storage | 8G memory card,optional 32G,video format MPEG-4,resolution 720X576,USB export |
| Power saving mode | automatically senses |
| Operation | Hands four buttons,ergonomic design |
| Battery type |
Input 8V~12V/DC Power consumption 4W Lithium battery 7.4V/2800mAH Continuous working time >4 hours; Service life not less than 500 times charging and discharging cycles |
| System startup time | <3s |
| Interface |
BNC video output,PAL Image storage USB2.0 Power supply 8V~12V/DC max current 4A |
| Ingress protection | IP67(airtight) |
| Humidity | 5%~95%(non-condensing) |
| Storage temp. | -45℃~+60℃ |
| Operational temp. | -35℃~+50℃ |
| Weight | <2.8kg(battery included) |
| Dimension | 230(L)X230(W)X103(H)mm |
| Accessories | Video cable, lens cap, rubber cover, charger, lithium battery, carrying case |
* The detection distance is related to the object and environment etc. Please contact with us for further information.
