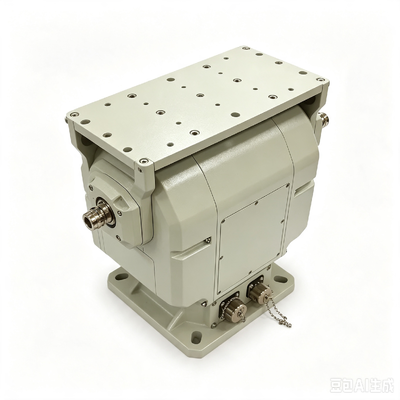

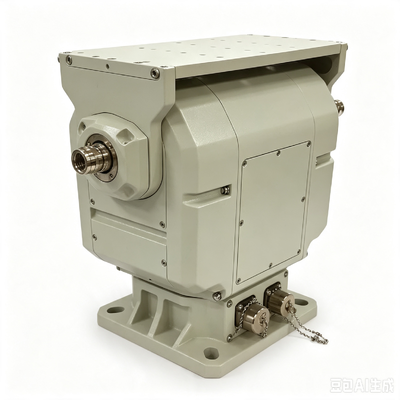

Heavy Duty Pan Tilt Units 30kg Industrial Motorized Positioning

Large Image : Heavy Duty Pan Tilt Units 30kg Industrial Motorized Positioning

Product Details:

Place of Origin:	China
Brand Name:	Hope-Wish
Certification:	CE,FCC, ISO
Model Number:	HP–S030W-PT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	500
Packaging Details:	Wooden packaging
Delivery Time:	5~10 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	2000 units per month

Contact Now

Heavy Duty Pan Tilt Units 30kg Industrial Motorized Positioning

Description

Highlight:

Heavy Duty pan tilt units

30kg pan tilt units

Industrial pan tilt units

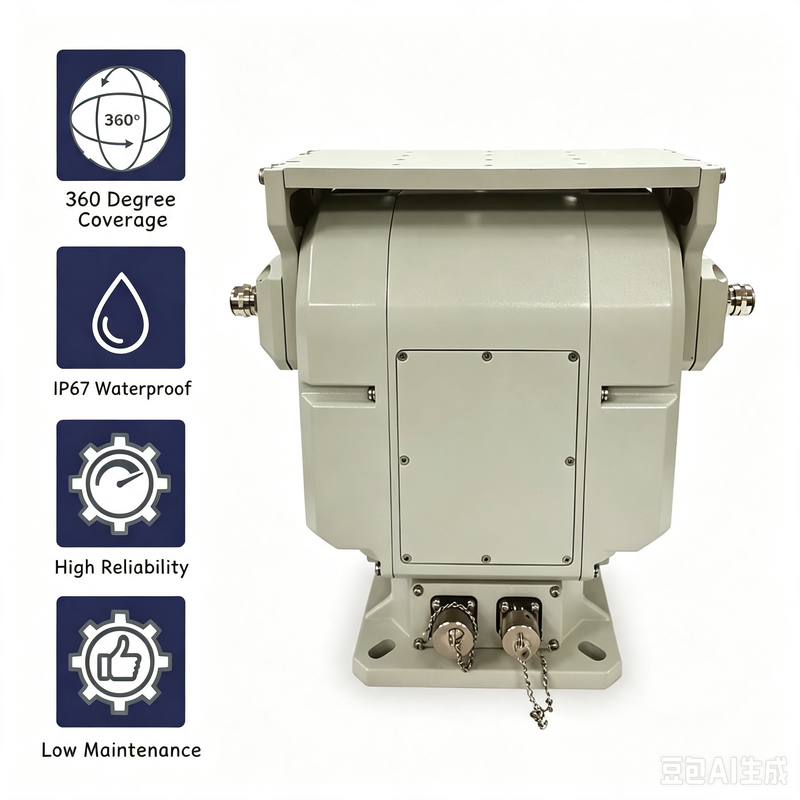

Heavy Duty Pan Tilt Units – 30kg Industrial Motorized Positioning

• Maximum Load: 30 kg

• Weight: 14 kg

• Rotation: Horizontal 360° continuous; Tilt -60° to + 20°

• Speed: Horizontal 0.01°– 20°/s; Tilt 0.01°– 10°/s

• Repeat Positioning Accuracy: ±0.1°

• Ingress Protection: IP66

• Auto Patrol: 2 routes, 40 presets per route

• Communication Protocol: PELCO-D

• Interface: RS422

• Operating Temperature: -25°C to +65°C

• Installation: Fixed

Heavy Duty Pan Tilt Units 30kg Industrial Motorized Positioning

Technical Parameters:

Model	H–S030W-PT
Rotation Angle	Pan: 0° to 360° ; Tilt: -60° to +20°
Rotation Speed	Pan: 0.01 to 10°/s ; Tilt: 0.01 to 5°/s
Preset Positions	200
Positioning Accuracy	±0.1°
Power-On Self-Test	Support
Angle Feedback	Query-based / Real-time
Auto Cruise	2 patterns, 40 points each
Auto Home	Configurable (1～60 min)
Auto Scan	1 pattern
Salt Spray Resistance	No significant surface change after 48hrs continuous spray (PH 6.5-7.2).
Communication Protocol	PELCO_D
Baud Rate	9600bps(2400/4800/115200bps)
Communication Interface	RS422
Power Supply Voltage	DC 24V
Power Consumption	≤ 150W (Operating)
Temperature	-40℃～+65℃(working),-25℃～+65℃(storage)
Payload	30 kg
Dimensions (LWH)	272 x 270 x 300 mm
Weight	14 kg
Mounting Type	Top Mount
Self-Locking	Support
Ingress Protection (IP)	IP66
Installation Environment	Fixed Installation
System Type	Open-Loop System (No Encoder)
Top Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable (8-core) 1x DC24V Output Power Cable (15A)
Bottom Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable (8-core) 1x DC24V Input Power Cable (System Power) 1x RS422 (Unit Communication)
