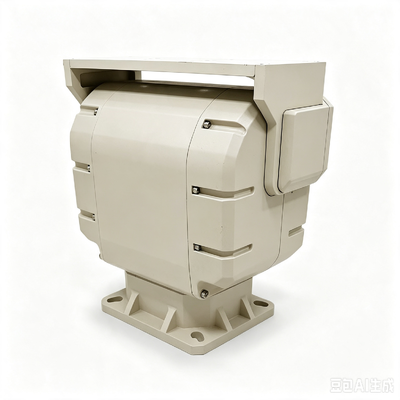

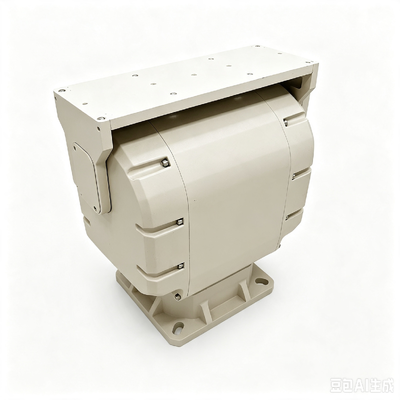

Heavy Duty Pan Tilt Unit With 50kg Payload 360° Rotation IP66 Protection For Industrial

Heavy Duty Pan Tilt Unit With 50kg Payload 360° Rotation IP66 Protection For Industrial
Heavy Duty Pan Tilt Unit With 50kg Payload 360° Rotation IP66 Protection For Industrial Heavy Duty Pan Tilt Unit With 50kg Payload 360° Rotation IP66 Protection For Industrial Heavy Duty Pan Tilt Unit With 50kg Payload 360° Rotation IP66 Protection For Industrial

Large Image :  Heavy Duty Pan Tilt Unit With 50kg Payload 360° Rotation IP66 Protection For Industrial

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE,FCC, ISO
Model Number: HP–S00W-PT5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 900
Packaging Details: Wooden packaging
Delivery Time: 5~10 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 2000 units per month
Contact Now

Heavy Duty Pan Tilt Unit With 50kg Payload 360° Rotation IP66 Protection For Industrial

Description
Highlight:

50kg Payload Pan Tilt Unit

,

360° Rotation Pan Tilt Unit

,

IP66 Protection Pan Tilt System

Product Description:

Heavy Duty Pan Tilt Units – 50kg payload

  •  Maximum Load: 50 kg
  • Rotation: Horizontal 360° ; Tilt -60° to +20°
  • Speed: Horizontal 0.01° to 8°/s; Tilt 0.01° to 4°/s
  • Positioning Accuracy: ±0.1°
  • Worm gear transmission with auto-locking upon power outage
  •  Support Query feedback/Real-time feedback
  •  Ingress Protection: IP66
  • Communication Protocol: PELCO-D
  •  Interface: RS422

Heavy Duty Pan Tilt Unit With 50kg Payload 360° Rotation IP66 Protection For Industrial

Technical Parameters:

Model

HP–S050W-PT

Rotation Angle

Pan: 0° to 360° ; Tilt: -45° to +45°

Rotation Speed

Pan: 0.01 to 10°/s ; Tilt: 0.01 to 5°/s

Preset Positions

200

Positioning Accuracy

±0.1°

Power-On Self-Test

Support

Angle Feedback

Query-based / Real-time

Auto Cruise

2 patterns, 40 points each

Auto Home

Configurable (1～60 min)

Auto Scan

1 pattern

Salt Spray Resistance

No significant surface change after 48hrs continuous spray (PH 6.5-7.2).

Communication Protocol

PELCO_D

Baud Rate

9600bps(2400/4800/115200bps)

Communication Interface

RS422

Power Supply Voltage

DC24V

Power Consumption

≤90W (Operating)

Temperature

-40℃～+65℃(working),-25℃～+65℃(storage)

Payload

50 kg

Dimensions (LWH)

336 x 190 x 372 mm

Weight

22kg

Mounting Type

Top Mount

Self-Locking

Support

Ingress Protection (IP)

IP66

Installation Environment

Fixed Installation

System Type

Open-Loop System (No Encoder)

Top Cable Pass-through

1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Output Power Cable (15A)

Bottom Cable Pass-through

1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Input Power Cable (System Power)
1x RS422 (Unit Communication)

Heavy Duty Pan Tilt Unit With 50kg Payload 360° Rotation IP66 Protection For Industrial
