Product Details:
|
| Weight: | 2.5kg | Image Frequency: | 9Hz |
|---|---|---|---|
| Sensor Type: | Thermal | Power Supply: | DC12V |
| Operating Temperature: | -20°C To +50°C | Minimum Focus Distance: | 1.5m |
| Spectral Range: | 7.5μm To 14μm | Interface: | Ethernet |
| High Light: | Lightweight Handheld Thermal Camera,9Hz Handheld Thermal Camera,9Hz Handheld Monocular Thermal Camera |
||

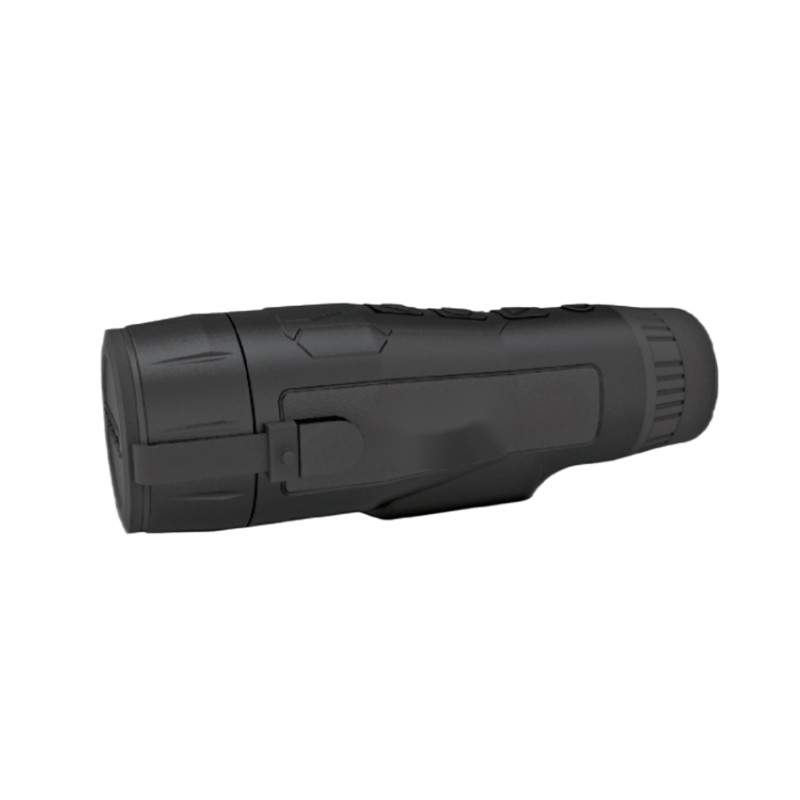

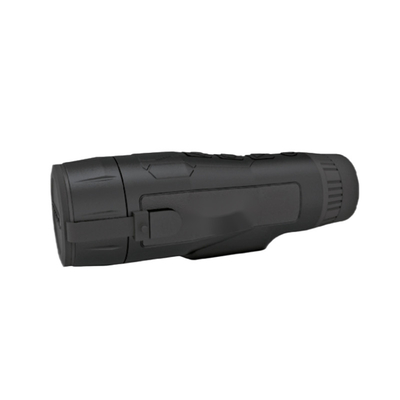

Hope-Wish handheld monocular thermal camera is specially designed for mobile observation. With uncooled infrared technology, unique imaging circuit components and AS optical design, it could search and observe object effectively. It have advantage like low weight, low consumption.
The camera is equipped with a high-quality rubber soft cover as per human hands design, which suit both portable and fixed observation, for night hunting, search targets. Functions of wifi, auto gain, polarity conversation, reticle, photo storage, brightness, digital zoom, and so on. IP66 protection to enable the camera works well in severe weather conditions.
| Items | AGT-MTC4125P-LFZ | |
|
Detection Distance |
Vehicle | 1500m |
| Human | 1000m | |
| Recognition distance | Vehicle | 485m |
| Human | 335m | |
| Detector | Type | Uncooled FPA |
| Resolution | 384×288 pixels | |
| Imaging | FOV | 25mm |
| Digital zoom | 2X/4X | |
| NETD | ≤40mk@30℃ | |
| Frame rate | 50HZ | |
| Focus | Fixed and adjustment | |
| Spectral range | 8-14μm | |
| wifi | Support | |
| Ranging | Distance ranging | By reticle |
| Display | Screen | 1024*768 |
| Color palettes | Black-hot,white-hot,red-hot,Iron | |
| Diopter adjustment | Adjust by rotary knob | |
| Power supply | Battery type | Li-Ion battery,rechargeable |
| Operating time | 5.5 hours continuous operation | |
| Charging | Type C charging | |
| Power input | DC 5V/2A(Micro USB) | |
| Environment | Working temp. | -20℃- +50℃ |
| Storage temp. | -40℃- +60℃ | |
| Protection class | IP66 | |
| Drop resistance | 1 Meter | |
| Weight | Weight | 520g |
| Interface | Power input | Yes |
| Video output | PAL | |
| Type C | Type C | |
The Long Range Thermal Camera is ideal for long-distance detection, making it perfect for industrial and commercial applications. The camera's field of view is 25°, allowing for a wide range of coverage. The camera's image frequency is 9Hz, providing a clear and smooth image. The camera's resolution is 640x480, making it easy to distinguish details in the images. The camera's minimum focus distance is 1.5m, making it easy to capture images of objects that are far away.
The Long Range Thermal Camera is perfect for a variety of applications, including monitoring industrial equipment, detecting hotspots in electrical systems, and identifying heat loss in buildings. This camera can also be used for surveillance, providing clear images of people in low-light conditions. It can also be used to track animals in the wild, making it a useful tool for wildlife research.
Overall, the Hope-Wish HP-DMS Long Range Thermal Camera is a versatile, high-quality device that can be used in a variety of applications. Its long-range detection capabilities and high-resolution imagery make it an essential tool for professionals in a variety of industries, including industrial, commercial, and scientific fields.
Looking for a customized Long Range Thermal Camera solution? Look no further than Hope-Wish's HP-DMS model. Our Long Range Thermal Camera, also known as a Thermal Imaging Camera or Long-Distance Thermal Camera, is the perfect solution for your needs.
Our Long Range Thermal Camera, HP-DMS, is manufactured in China and has an operating temperature range of -20°C to +50°C. It requires a DC12V power supply and has dimensions of 175mm x 175mm x 175mm. With a detection range of 1.2km and a weight of only 2.5kg, it is the perfect solution for long-range surveillance needs.
Contact us today to discuss customization options for your Long Range Thermal Camera needs.
The Long Range Thermal Camera product technical support and services include:
- Assistance with installation and setup
- Troubleshooting and diagnosis of technical issues
- Repair and maintenance services
- Firmware updates and upgrades
- User training and education
- Technical documentation and manuals
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Thank you for purchasing our Thermal Imaging Binoculars. To ensure the safe delivery of your product, we have carefully designed our packaging and shipping process. Please read the following information before opening your package.
Our Thermal Imaging Binoculars will be packaged in a sturdy cardboard box to protect them during transit. The box will be sealed with strong packing tape to prevent any damage or tampering.
Inside the box, you will find your binoculars wrapped in a layer of protective foam. This foam will provide additional cushioning and shock absorption during shipping.
Please handle the box with care and do not use any sharp objects to open it, as this may cause damage to the contents inside.
We will ship your Thermal Imaging Binoculars using a reputable courier service, such as UPS or FedEx. The estimated delivery time will depend on your location, but we will provide you with a tracking number so you can monitor the progress of your package.
For international orders, please note that additional customs fees or taxes may apply. These fees are the responsibility of the buyer and will not be covered by our company.
If you have any questions or concerns about the packaging or shipping of your Thermal Imaging Binoculars, please do not hesitate to contact us.
Thank you again for choosing our product. We hope you enjoy your new Thermal Imaging Binoculars!
