Product Details:
|
| Waterproof: | Yes | Dimensions: | 190 X 80 X 60 Mm |
|---|---|---|---|
| Field Of View: | 20° X 16° | Weight: | 3kg |
| Operating Temperature: | –20°C To +50°C | Storage Temperature: | –40°C To +60°C |
| Frame Rate: | 50 Hz | Lens: | F1.2, 50mm |
| Interface: | Video Output Micro USB | Accuracy: | ≥ 98% |
| Style: | Handheld | Usage: | Bird Watching Hiking Camping |
| Focal Lens: | 15mm | Pixel Size: | 12μm |
| Netd: | ≤20mk | Application: | Fire Fighting / Outdoor |
| Kind: | Thermal Imaging Monocular Handheld | Water Resistance: | IP67 Rated |
| Product Size: | 187.3x68x68.2mm | Resolution: | 384x288 Pixels |
| Detector Type: | 400×300@17μm | Model: | KRY802X Thermal Imaging Monocular |
| Highlight: | 3kg night vision scope,night vision scope 50Hz frame rate,thermal monocular for nighttime observation |
||

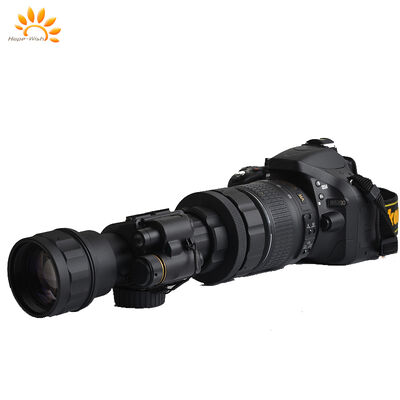

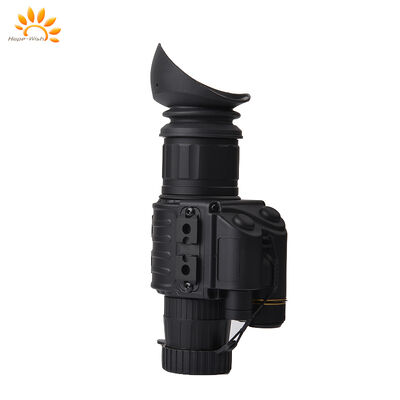

HP-DM2011 is a very popular military-grade multifunctional individual night vision device in the market. It can be worn on the head or helmet, can be mounted on a weapon for hunting or shooting, and can also be used with a camera or video camera for shooting night scenes.
The Thermal Imaging Monocular is an advanced optical device designed to provide exceptional night vision capabilities, making it an indispensable tool for outdoor enthusiasts, security personnel, and professionals who require reliable thermal imaging in low-light or no-light conditions. Equipped with a high-performance 50 Hz frame rate, this monocular ensures smooth and real-time thermal imaging, allowing users to quickly detect and interpret thermal signatures with remarkable clarity and precision.
| Model | HP-DM2011 |
| IIT | GEN2 |
| Eye protection mask | YES |
| Anti-strong light automatically | YES |
| Helmet holder | reversible and demountable easily |
| Magnification | 1x |
| Detective distance(M) | 200~250 |
| Recognition distance(M) | 150~200 |
| FOV(deg) | 40° |
| Objective lens adjustment | 0.25~~∞ |
| Diopter adjustment | ±5 |
| Eye relif diameter | 15mm |
| Eye relif distance | 15mm |
| Eyes distance range | 57~73mm |
| Battery type | 1.5V(CR123) lithium cells(2) |
| Power supply | 3V |
| Continuous working time | 40hours with the IR on,80hors with the IR off |
| Dimensions | 145*125*65mm |
| Net weight | 490g |
| Operating temperature range | -40℃~~~+40℃ |
| Using life | 10000hours |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
