Product Details:
|
| Operating Temperature: | -20°C To 60°C | Consumption: | 5W, 808nm,NIR |
|---|---|---|---|
| Type: | PTZ Camera | Video Compression: | H.264 |
| Optical Zoom: | 30X | Tilt Range: | 90 Degrees |
| Feature: | Automatic Exposure | Ip Rating: | IP66 |
| High Light: | 30X ptz infrared camera,long range ptz infrared camera,HD ptz infrared camera |
||

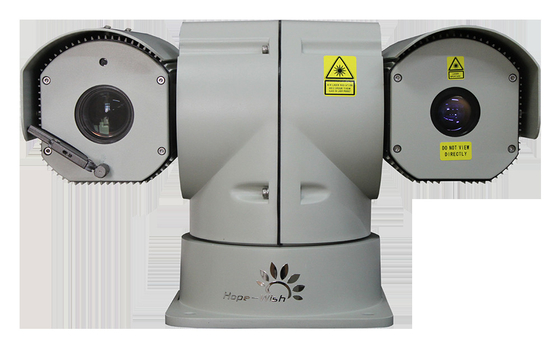

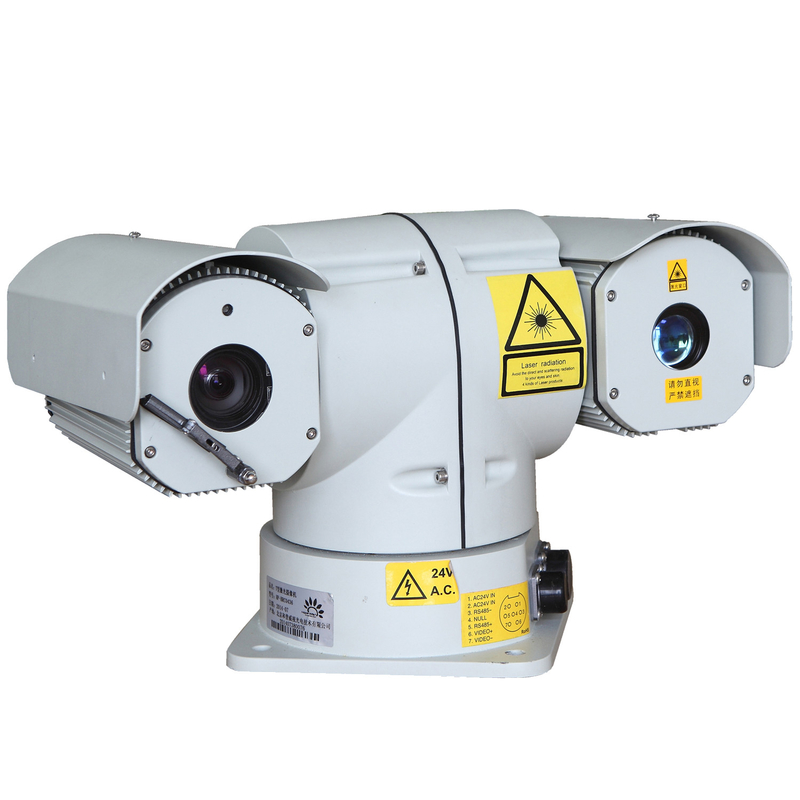

BRC19 series HD infrared laser camera consist of infrared laser illuminator, PTZ platform, precise gearing, 2 megapixel HD lens, digital decoder, CCD and CU. The mechanical design of PTZ is simple and stable.
BRC19 camera could rotate to the proposed position quickly and accurately. The camera has 128 preset, recording and patrol function and could preset anywhere. It also have automatic exposure, automatic focus function.
Overall, our PTZ Infrared Camera is the perfect solution for all your surveillance needs. It provides you with clear and detailed footage, even in low light conditions, and is user-friendly and easy to install. So, whether you're looking for a camera for your home or business, our PTZ Infrared Camera is the perfect choice.
| Model | HP-BRC1920 |
| Detection | Day: 700 |
| Night: 300m | |
| Sensor | 1/2.8'' B&W Sony CCD, 2.1 MP, 1920X1080, automatic ICR switch |
| Encoding | Video compression: H.264, code stream 32k～16Mbps,support dual stream, the heart, smart restructuring, electronic shutter, white balance, 3D DNR, DWDR, automatic exposure, support SD card, motion detection, mask alarm |
| Image setting | Lightness, contrast radio, saturation |
| Lens |
4.7～94mm,20 optical zoom F1.6～F3.5 |
| FOV | 61.4°～2.9° |
| Min.Illumination | 0.005lux B/W0.05lux Color/ |
| Consumption | 5W,808nm ,NIR |
| Laser lens | 30mm F1.0 Fast lens,GHT-II homogenizing |
| Laser angle | 2°～50° |
| Angle control | DSS digital illumination control,30ms fast track response, min 0.1° illumination zooming, manual/automatic |
| Optical axis aiming | 0.01°SLM automatic axis automatic aiming and locking ,reserved external interface, maintaining without take out the case |
| Pan rotation | 0°~360° continuously |
| Tilt rotation | -90°~+90° |
| Rotation speed | Pan: 0°~100°/s,Tilt: 0°~80°/s |
| Preset | 128 |
| Line scan | 3 path(User could set up the starting point, destination and scanning speed) |
| Patrol | 6 path(each path have 16 point, staying time is adjustable) |
| Customized function | Customizable privacy shade, 3D box chosen magnification |
| Interface | RJ45,10M/100M adaptive Ethernet,TCP/IP,RTP/RTCP,HTTP |
| Compatibility | Support ONVIF,GB/T28181 |
| Heat/demisting/ wiper | Yes |
| Laser switch | Auto/manual |
| Ingress protection | IP66,anti-lighting,anti surge |
| Operational temp. | -35~55℃ |
| Power supply | AC24V/2.5A,DC12V/3.5A, common≤40W,peak≤60W |
| Weight | 7kg |
City security, oilfield monitoring, lake&river monitoring, expressway&railway monitoring, seaport&airport monitoring.
The PTZ Infrared Camera product technical support and services includes:
Q: What is the brand name of this camera?
A: The brand name of this camera is Hope-Wish.
Q: What is the model number of this camera?
A: The model number of this camera is HP-TC.
Q: Where is this camera manufactured?
A: This camera is made in China.
Q: Is this camera suitable for outdoor use?
A: Yes, this camera is designed to be used both indoors and outdoors.
Q: Does this camera have night vision capability?
A: Yes, this camera is equipped with infrared technology for clear night vision.
