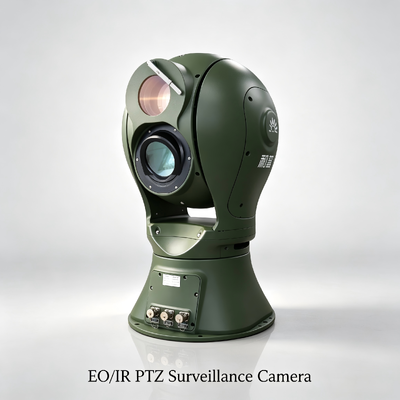

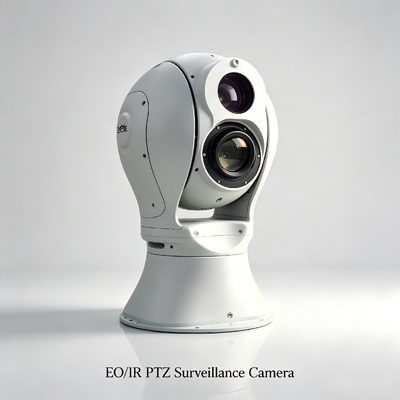

Product Description:
The product adopts spherical design, strong wind resistance, low stirring, stable and clear imaging; it adopts up and down split structure design, can be packed and transported independently, and disperses the whole machine weight, it greatly improves the product transport ability under the complex terrain environment; the use of Modular design, according to customer requirements, flexible collocation of detection channels, flexible selection of optical configuration, in order to meet the requirements of detection, identification and identification under various weather conditions such as full black and fog, rain, snow, etc. , the ball bin can be filled with nitrogen up to IP67 protection level, and can work reliably in the harsh environment in the field for a long time.
As a state-of-the-art EO IR Camera, this Long Range Infrared Camera integrates cutting-edge thermal imaging technology with robust hardware to deliver consistent and reliable performance. Its combination of a versatile thermal lens, broad wavelength detection, high sensitivity, and long recognition distances positions it as a top-tier solution for infrared surveillance and night vision applications.
In summary, the Long Range Infrared Camera is a sophisticated Infrared Night Vision designed for professionals who demand high precision, long-distance recognition, and durability. Whether used for security, defense, or environmental monitoring, this EO IR Camera offers unmatched capabilities to detect and identify targets in complete darkness or adverse weather conditions. Its lightweight design, advanced thermal technology, and extended recognition range make it a premier choice for anyone requiring dependable infrared night vision performance.
Features:
î Strong load capacity: it can support large magnification visible light camera, large aperture refrigeration thermal imager, to achieve ultra-long-range target observation;
î Detection spectrum width: integration of high-definition visible light, medium-wave thermal imaging, dual-band detection advantages complement each other, combining active and passive detection, multi-source data fusion processing, so that the target can not hide, to meet the day and night, all-weather environment monitoring needs;
î Fast turning speed: the speed of rotation is up to 80 °/s, the acceleration is up to 100 °/s 2, the start-stop is quick, the operation is smooth, it is helpful to capture and track the moving target quickly;
î Wide coverage: azimuth rotation range 0 ° ~ 360 °, pitch rotation range -90 ° ~ + 90 °, to achieve non-dead angle detection, full-dimensional coverage;
Technical Parameters:
|
Model
|
HP-Z50II-CTVC62245-2186
|
|
Detection Distance
|
Vehicle:19km
Human 12km
|
|
Recognition Distance
|
Vehicle:9km
Human 4.5km
|
|
Thermal Camera
|
1. Detector: cooled focal plane array MCT detector
2. Wavelength: 3.7 μm ~ 4.8 μm
3. NETD: 20mK
4. 22 ~ 450mm, 20x continuous optical zoom, F4.0
5. Lens control: Electric Zoom; Manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, accurate and high speed; 3CAM mode and AS + DOE optical structure, high infrared transmittance, the zoom process has no virtual focus and the axis is small
6. Image Enhancement: SDE Digital Image Enhancement Technology, enhance image details, support 255 level thermal image enhancement adjustment
7. Pseudo-color polarity: 16 pseudo-color images, hot black/hot white polarity
8. Image parameters: AGC automatic gain control, brightness, contrast adjustment
9. Electron doubling: 1.0 ~ 8.0 × continuous doubling (step length 0.1) , supporting optical electron relay doubling, supporting global hawk-eye diagram
10. Rangefinder: supports rangefinder
11. Bad Correction: support for bad correction
12. Image Correction: support manual correction, background correction, automatic correction time interval, Gamma correction parameters adjustable
13. Bright Light Protection: supports protection against Sun Damage
14. Detector Array: 640 × 512
Field of view: 24.6 ° × 19.8 ° - 1.2 ° × 1 °
|
|
Visible Camera
|
1. Sensor type: backlit ultra-low illumination star-level CMOS
2. Minimum illuminance: Color: 0.0005 lux; black and white: 0.0001 lux; 0 Lux (IRON)
3. Lens: 11 ~ 860 mm, Mega HD electric zoom; Manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, accurate and high speed
4. Image Processing: support for white balance, electronic shutter, frame accumulation, backlight compensation, strong light suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic, heat wave drift suppression
5. Day-night type pass light: 0.4-0.75 um visible broad spectral window and 0.8-0.95 um near infrared spectral window
Support electronic transmission fog, optical transmission fog
|
|
Audio and video
|
1. Resolution: 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 288; 352 × 240
2. Visible resolution: 2592 × 1520; 2560 × 1440; 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 240
3. Video Coding: H. 265/h. 264/MJPEG, multi-stream support
4. Video rates: 32 KBPS to 16 Mbps
5. Audio encoding: G. 711A/g. 711U/G726
6. Image rollover: right/left/up/down/diagonal
7. OSD settings: Support Channel name, time, PAN, field of view angle, focal length of the OSD display settings, support preset position name settings
|
|
Intelligent function
|
1. Fire Detection Alarm: Threshold Level 255, target size, target number 1-16 can be set, automatic selection of the most prominent target display, hot tracking
2. Intelligence analysis: support intrusion detection, cross-border detection, entry/exit area detection, motion detection, loitering detection, people gathering, fast moving, target tracking, items left behind, items taken; Human/vehicle target detection, face detection; and support 16 regional settings; support intrusion detection, human, vehicle filtering function; support target temperature filtering function
3. Automatic tracking: single-scene tracking support multi-scene tracking support panoramic tracking support alarm linkage tracking
4. Intelligent Information Fusion: support 512 AR intelligent information fusion, support point of fire, intelligent analysis video identification information fusion, support azimuth angle, field of view, focal length, multiple information fusion
5. Image Fusion: support 18 kinds of dual-light fusion mode, support picture-in-picture function
6. Alarm management: Support Alarm capture upload
|
|
Enhanced function
|
1. Ranging function: support passive ranging; support optional laser ranging
2. Strong light protection: support, protection from Sun Burn function
3. Temperature Correction: non-thermal design, imaging sharpness is not affected by temperature
4. Scene mode: support multi-configuration scene, adapt to different environment applications
5. Auto-focus tuning: support remote auto-focus accuracy parameter adjustment, adapt to different scenarios
6. Day-night cruise: day-night cruise groups with different preset, day cruise 1-40 preset, night cruise 41-80 preset, according to the state of light automatically switch day and night, adapt to different space-time scenarios
7. Lens servo: support lens pre-position, focal length back, focal length positioning function
8. Power-off memory: support to restore the pre-power-off position, pre-position state, cruise state, line scan state
9. Off and on: support
10. Camera diagnosis function: support network alarm, support IP conflict alarm, support illegal access alarm (illegal access number, lock time can be set) , support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card) , video block alarm, anti-sun damage (support threshold, block time can be set)
11. Life Cycle Management: Health Index recording function, support working time, shutter times, working temperature, limit temperature, etc.
12. Remote Maintenance: with fault inquiry, self-examination, remote restart function; online upgrade, remote upgrade
13. Keyframe settings: support keyframe interval 100-level adjustable
14. Configuration File: Support Configuration File Import and export function
15. Web Access: support WEB full function configuration, remote online upgrade
|
|
Security control
|
1. Support illegal access alarm: illegal access number, lock time can be set
2. Support three levels of user rights management, administrators, operators, ordinary users
3. Security mode: authorized user name and password, support IP white list and black list, Mac White list and black list
4. User Login Lock
|
|
Servo Turntable
|
1. Structure: spherical, multi-dimensional free-form surface shape, small wind resistance, strong anti-shake, can resist 12 strong wind
2. Two-axis two-frame, up and down split design, can be independent packaging transport, rapid combination
3. Windows: Dual/triple windows, 2/3 band sensors, wiper
4. Level range: N × 360 ° continuous rotation, after power failure can be mechanically locked
5. Pitch range:-90 ° ~ + 90 ° , with soft limit function, program can be set
6. Rotation Speed: level 0.01 ° ~ 80 °/s, pitch 0.01 ° ~ 60 °/s
7. Acceleration: 100 ° S 2 level, 100 ° S 2 pitch
8. Speed adaptation: with intelligent induction speed change function, support lens focal length speed adaptation function
9. Driving mode: adopting high torque rare earth permanent magnet synchronous motor direct drive, high speed start and stop
10. Positioning accuracy: better than 0.02 °
11. Location Time: less than 4s
12. Zero setting: support for horizontal and pitch zero setting
13. Preset cruise: 3000, supports 16 cruise routes, each can support 256 preset positions
14. Path scan: Support Preset Point Cruise, day and night cruise, line scan, frame scan, apple skin scan, scan speed can be set
15. Over watch: preset position/pattern scan/cruise scan/vertical scan/frame scan/panoramic scan/apple peel scan/horizontal fan scan
16. Motor Protection: turntable block and turn protection, high reliability
17. Gyro image stabilization: optional two-axis gyro stabilization, pitch and roll ≤ ± 10 ° , period greater than 6 seconds, los stabilization accuracy ≤2 mrad (RMS)
|
|
Electrical interface
|
1. Network interface: 1-way RJ45,10/100base-t adaptive
2. Network protocol: support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocol; support ONVIF and GB28181 protocol
3. Secondary development: provide free SDK, easy to use or convenient secondary development
4. Physical interface: Alloy Waterproof Aviation Plug
5. Optical network: (optional built-in Fiber Module, single mode fiber output, improve anti-interference)
|
|
Power consumption
|
1. Power: with ultra-wide input power adapter, AC90V ~ 305V to DC48V
2. Power consumption: the maximum power consumption of the turntable is less than 500W and the stable power consumption is less than 150W
|
|
Environmental Indicator
|
1. Working Temperature:-40 °C ~ + 60 °C
2. Storage Temperature:-45 °C ~ + 70 °C
3. Humidity: < 90% Rh
4. Lightning protection: Interface Circuit built-in surge protection, 6000V
5. Salt spray: in PH 6.5 ~ 7.2, continuous spray 96 hours, no change in the surface
6. Protection class: IP66(Ball Chamber air-tight IP67)
|
|
Dimension weight
|
Dimensions: 480mm × H825mm
Total weight: ≤85 kg
|
Applications:
The Hope-Wish HP-Z50 Long Range Infrared Camera is an advanced EO IR imaging system designed to deliver exceptional performance in various demanding applications. With a detection distance of up to 13 kilometers for vehicles and 4.8 kilometers for humans, this infrared hunting camera is ideal for long-range surveillance and target acquisition in both civilian and MIL scenarios. Its sixth generation uncooled focal plane array VOX detector ensures high sensitivity and reliability, capturing clear thermal images with a resolution of 640 × 512 pixels.

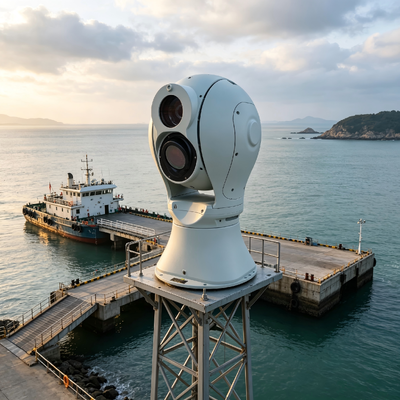

One of the primary application occasions for the HP-Z50 is in border security and perimeter defense. The camera’s impressive thermal lens range of 4.31 to 155 mm allows operators to monitor vast areas with precision, making it suitable for detecting unauthorized vehicles and personnel at great distances, even under challenging environmental conditions such as darkness, fog, or smoke. Its infrared night vision capabilities enable continuous operation during nighttime, enhancing situational awareness and threat detection without the need for additional illumination.
In wildlife observation and infrared hunting, the HP-Z50 infrared hunting camera offers hunters and researchers a powerful tool for spotting animals from afar without disturbing their natural behavior. The camera’s lightweight design, weighing no more than 85 kilograms, allows for relatively easy transportation and setup in remote locations. Moreover, its high-resolution thermal detector produces clear and detailed images, which is crucial for identifying targets and ensuring ethical hunting practices.
Additionally, the Hope-Wish HP-Z50 is highly effective in search and rescue operations, enabling teams to locate missing persons in vast and rugged terrains by detecting human heat signatures at distances up to 4.8 kilometers. It also serves well in industrial inspections, where early detection of equipment overheating or fire hazards can prevent accidents and downtime.
Overall, the Hope-Wish HP-Z50 Long Range Infrared Camera combines advanced EO IR imaging systems technology with robust design and superior detection capabilities, making it an indispensable infrared night vision for security personnel, hunters, researchers, and emergency responders across a wide range of scenarios.
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

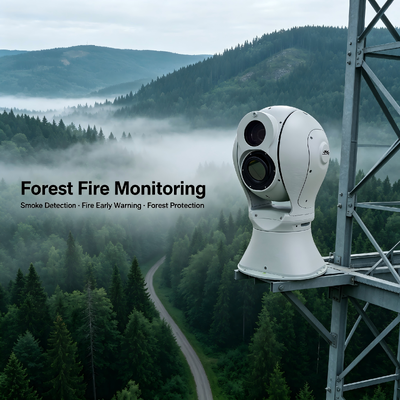

Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.Support and Services:
Our Long Range Infrared Camera is designed to provide high-resolution thermal imaging for a variety of applications including surveillance, industrial inspection, and environmental monitoring. To ensure optimal performance and longevity of your camera, please follow the guidelines below.
Installation and Setup: Carefully follow the user manual for mounting and installation. Ensure the camera is positioned in a location free from obstructions and extreme environmental conditions. Use only the recommended power supplies and cables to prevent damage.
Operation: Before using the camera, allow it to acclimate to the ambient temperature for accurate thermal readings. Regularly calibrate the camera as instructed in the manual to maintain measurement accuracy.
Maintenance: Clean the lens with a soft, lint-free cloth and approved lens cleaner to avoid scratches. Avoid exposing the camera to water or dust beyond its specified protection rating. Store the camera in a cool, dry place when not in use.
Troubleshooting: If the camera fails to power on, check the power connection and ensure the battery is charged. For image quality issues, verify the lens is clean and the camera is correctly focused. Refer to the troubleshooting section of the user manual for additional guidance.
Software Updates: Periodically check for firmware updates on our website to enhance functionality and fix any known issues. Follow the update instructions carefully to avoid interrupting the process.
Support Services: Our technical support team is available to assist with setup, troubleshooting, and maintenance questions. We also offer repair and calibration services to ensure your Long Range Infrared Camera continues to operate at peak performance.
For detailed information on warranty and service policies, please refer to the documentation provided with your product.
FAQ:
Q: What is the detection range of the Hope-Wish HP-Z50 Long Range Infrared Camera?
A: The HP-Z50 is capable of detecting heat signatures at distances up to 500 meters, making it ideal for long-range surveillance and monitoring.
Q: What type of imaging sensor does the HP-Z50 use?
A: The HP-Z50 is equipped with a high-resolution uncooled infrared sensor that provides clear thermal images even in complete darkness or adverse weather conditions.
Q: Can the Hope-Wish HP-Z50 operate in extreme environmental conditions?
A: Yes, the HP-Z50 is designed to function reliably in a wide range of temperatures, from -20°C to 60°C, and is built with weather-resistant housing for outdoor use.
Q: Does the HP-Z50 support real-time video output?
A: Yes, the HP-Z50 supports real-time infrared video streaming via HDMI and USB interfaces, allowing easy integration with monitoring systems.
Q: What are the power options available for the Hope-Wish HP-Z50 camera?
A: The HP-Z50 can be powered through an external 12V DC power supply or via a rechargeable battery pack, providing flexibility for stationary or mobile applications.
