Product Details:
|
| Pixel Size: | 15μm X15μm | Ip Rate: | IP66 Waterproof |
|---|---|---|---|
| Field Of View: | 9.2° X 6.9° | Sensor: | FPA MCT Detector |
| Image Enhancement: | SDE | Dimensions: | 160 X 120 X 120 Mm |
| Lens Material: | Germanium | Technology: | Infrared Thermal |
| High Light: | IP66 Waterproof Camera Long Range,Long-Range Cooled Thermal Camera |
||

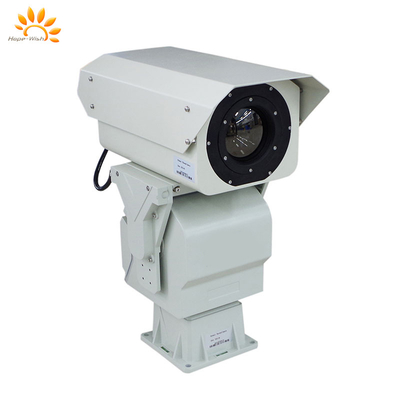

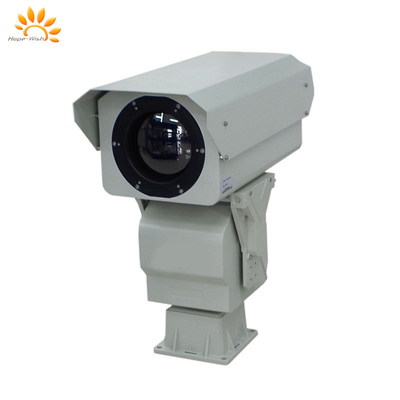

CTC Series Ultra Long Range Cooled Thermal Camera is developed on the basis of the latest cooled IR technology. Featuring high NETD, advanced digital circuit and image processing algorithm, the camera provides users crisp thermal images. While ensuring wide coverage, it also meets ultra long range surveillance demand detection range. The camera enclosure is IP66 rated, which is designed to withstand the harshest weather conditions.
With a spectral range of 3.5 - 5.0 μm, the Cooled Thermal Camera provides a wide range of temperature measurements and detection capabilities. This allows for accurate and detailed thermal imaging in both indoor and outdoor settings, making it suitable for a variety of industries and applications.
The Cooled Thermal Camera is built to withstand even the harshest conditions. With an IP66 waterproof rating, it is completely protected from dust and water, allowing it to be used in any weather and environmental conditions without compromising its performance.
Powered by advanced infrared thermal technology, the Cooled Thermal Camera delivers high-quality thermal imaging with exceptional clarity and precision. It is equipped with state-of-the-art features and functions that ensure accurate and reliable results every time.
The Cooled Thermal Camera utilizes a cutting-edge FPA (Focal Plane Array) MCT (Mercury Cadmium Telluride) detector, which is known for its high sensitivity and fast response time. This allows for real-time imaging and precise temperature measurements, making it the perfect tool for critical applications.
With its impressive sensitivity, wide spectral range, IP66 waterproof rating, and advanced technology, the Cooled Thermal Camera is the ultimate infrared thermal imaging camera. Whether it's for industrial inspections, research and development, or military and law enforcement operations, this camera is the perfect solution for all your thermal imaging needs.
| Model | HP-CTC63030 | |
|
Detect distance |
Tank :15000m Human :8000m |
|
|
Identification distance |
Tank:6000m Human:3000m |
|
|
Detector |
FPA MCT detector |
|
| Cooling | Stirling cryocooler | |
|
Resolution |
640×512 | |
| Pixel size | 15μm | |
| Spectral range | 3.7～4.8μm MWIR | |
| NETD | 20mK(@25℃) | |
|
Lens |
30～300mm continuous zoom F4. |
|
| Optical axis stability | 1.2mrad | |
|
Image processing |
．3CAM high-precision optomechanical design ．Image enhancement: SDE; ．Color: White hot/Black hot; ．Brightness and contrast: AGC, adjustable; ．Digital zoom: 2X, 4X ．Cross: display ．Correction: Shutter/Background |
|
| Lens control | Motorized zoom, auto focus | |
|
Environmental indicators |
．Enclosure: aluminum alloy, sealed; ．Working temp: -40℃～+60℃ ．Storage temp:-45℃～+70℃ ．Ingress protection: IP66 ．Power consumption: 23W(normal), 30W(peak) |
|
|
Interface |
．Control: RS485/RS232(PELCO D, baud rate:2400bps/s) ．Menu: OSD ．Video: PAL/NTSC ．Power supply: DC24V ．Connector: waterproof aviation connector |
|
Our Infrared Thermal Camera Module ensures high sensitivity and accuracy, making it ideal for various surveillance purposes. It is equipped with advanced features such as High Frame Rate, allowing you to capture fast-moving objects with ease.
At Hope-Wish, we understand that each customer may have different needs and specifications. That's why we offer customized solutions for our Cooled Thermal Camera. Our team of experts will work closely with you to create a personalized product that meets your exact requirements.
Our Cooled Thermal Camera is housed in a durable and compact Aluminum Alloy enclosure, ensuring its longevity and stability. It is also sealed for added protection against external elements, making it suitable for both indoor and outdoor use.
With dimensions of 160 x 120 x 120 mm, our Cooled Thermal Camera is compact and easy to install in any location. It is designed to provide you with clear and precise images, even in low-light or harsh weather conditions.
Choose Hope-Wish for your Infrared Surveillance Camera needs and experience the best in thermal imaging technology. Contact us now to learn more about our customized service for Cooled Thermal Camera.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Our Cooled Thermal Camera is carefully packaged and shipped to ensure its safe arrival to our customers. Here is a breakdown of our packaging and shipping process:
Once packaged, the camera is shipped via a reliable shipping service to ensure timely and secure delivery. Customers will receive a tracking number to track their package and can expect their camera to arrive within the estimated delivery time.
