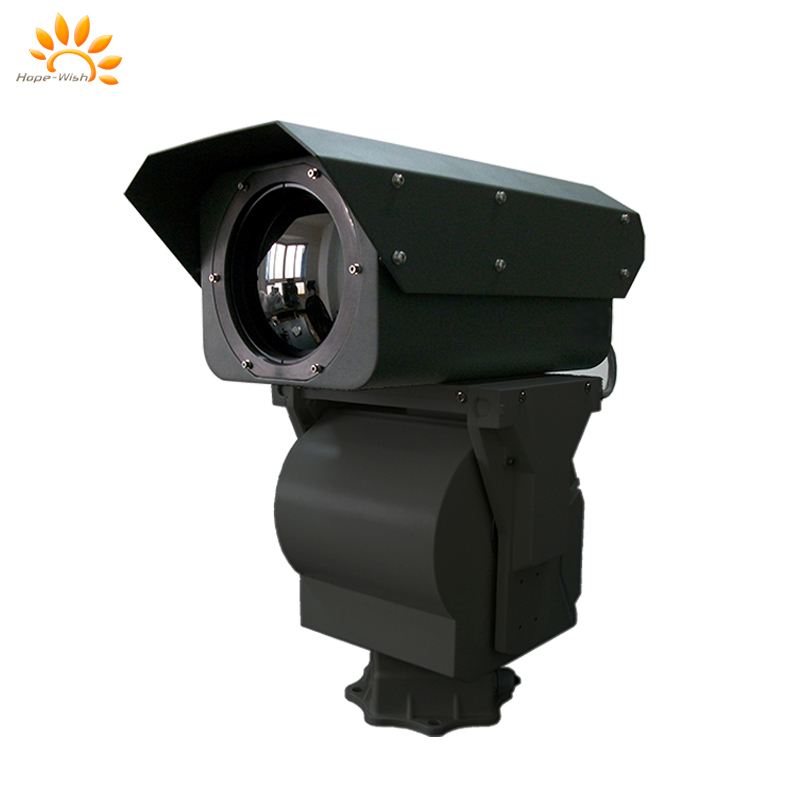

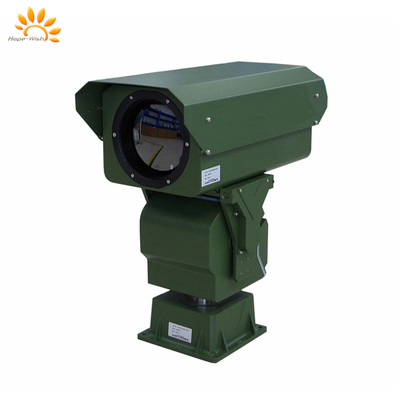

50km Cooled Thermal Camera with 640x512 Resolution and PTZ

50km Cooled Thermal Camera with 640x512 Resolution and PTZ
50km Cooled Thermal Camera with 640x512 Resolution and PTZ 50km Cooled Thermal Camera with 640x512 Resolution and PTZ

Large Image :  50km Cooled Thermal Camera with 640x512 Resolution and PTZ

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, ROHS, ISO9001
Model Number: HP-CTC61532
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 60-180
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 units per month

50km Cooled Thermal Camera with 640x512 Resolution and PTZ

Description
Ip Rate: IP66 Waterproof Lens Material: Germanium
Netd: 20mK(@25℃ F2.0) Pixel Size: 15μm X15μm
Menu: OSD Type: Cooled Thermal
Sensitivity: <50 MK Technology: Infrared Thermal
Highlight:

50km cooled thermal camera

,

640x512 resolution thermal camera

,

PTZ cooled thermal imager

Product Description:

The Cooled Thermal Camera is a cutting-edge device that combines advanced technology with superior design to provide exceptional performance in various applications. This high-quality product is designed to meet the needs of professionals who require precision and reliability in their thermal imaging tasks.

With a resolution of 640 X 512, this Cooled Thermal Camera delivers crisp and clear images, allowing users to capture detailed thermal information with accuracy. The high resolution ensures that even the smallest details are captured, making it an ideal choice for a wide range of industries and applications.



  • 20mk NETD ensures premium thermal image.
  • Unique AS continuous optical zoom and 3CAM high precision mechanical engineering.
  • Superb inhomogeneous correction ensures crisp thermal image.
  • SDE image enhancement.
  • Aluminum alloy enclosure, IP 66 rated.


Features:

  • Long range 24-hours monitoring.
  • Delicate and smooth images.
  • Convenient for installation and application.
  • 360 degree of Omni-directional Pan-Tilt
  • Super-strong aluminum alloy with IP66
  • Higher sensitivity
  • Effective in all environments
  • Small size and low weight


Technical Parameters:

Model HP-CTC61532
Detection Vehicle: 18000m / Human: 11000m
Identification Vehicle: 7000m / Human: 3500m
Thermal Camera
Sensor

Cooled Focal Plane Array (FPA) MCT HgCdTe detector

Stirling cryocooler

Resolution 640 × 512 pixel
Spectral range 3.7 ~ 4.8μm, MWIR
NETD 20mK (@25℃ F4.0)
Focal length 15 - 300 mm
Field of view(horizontal) 35°×28°~1.8°×1.4°
PTZ
Duty 30kg CNC PT
Rotation Pan: 0~360°, Tilt: -45°~+45°
Rotation speed Pan: 0.01°~30°/S, tilt: 0.01°/S ~15°/S
Accuracy ±0.1°
Preset 255 presets, support lens zooming and focusing preset
Mode Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising
Network
Network interface RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485)
Network Protocol TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0, GB28181 and other network protocol.
Environment Parameter
Operating temperature -25℃~+60℃(-40℃ Optional)
Storage temperature -45℃~70℃
Protection Level IP66
General
Total Consumption 180W
Power supply AC/DC24V, anti-reverse connection protection
Weight ≤25kg (include PTZ)

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

50km Cooled Thermal Camera with 640x512 Resolution and PTZ 0
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
50km Cooled Thermal Camera with 640x512 Resolution and PTZ 1
