Product Details:
|
| Enclosure: | Aluminum Alloy, Sealed; | Ip Rate: | IP66 Waterproof |
|---|---|---|---|
| Sensor: | FPA MCT Detector | Dimensions: | 160 X 120 X 120 Mm |
| Field Of View: | 9.2° X 6.9° | Lens Material: | Germanium |
| Spectral Range: | 3.5 - 5.0 μm | Resolution: | 640 X 480 |
| High Light: | PTZ Thermal Camera Long Distance,PTZ Infrared Thermal Camera Module,Dual Sensor Infrared Thermal Camera Module |
||

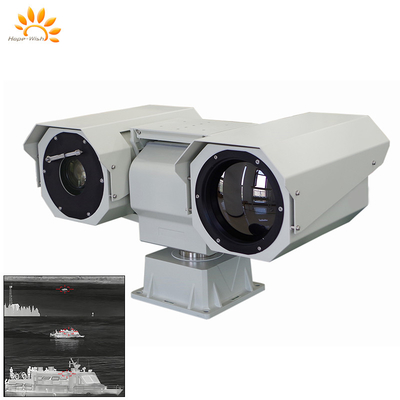

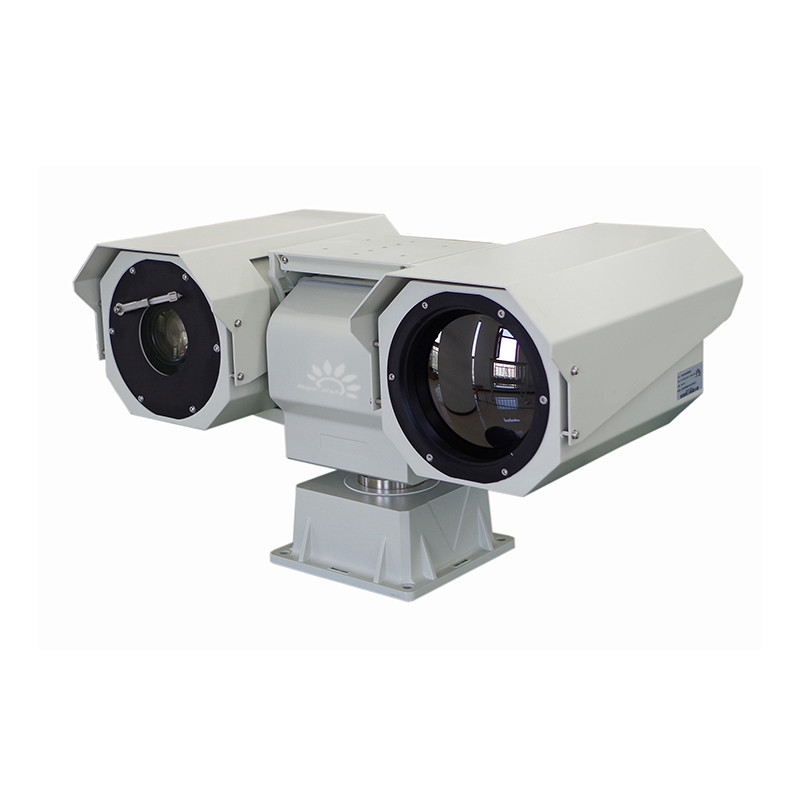

HTVC Series Long Range Multi Sensor Thermal Camera is a series of camera specially designed for special purposes, the Camera adopts 2,000,000 visible camera and
384*288/640*512 uncooled thermal camera with large caliber.
In combination with 360-degree PT, the camera is capable of
conducting 24 hours real-time monitoring within 1km-10km.
The Cooled Thermal Camera is equipped with advanced technology that allows it to detect even the slightest changes in temperature. With a Netd of 20mK at 25℃ F2.0, this camera can capture clear and accurate images even in low light conditions.
The high sensitivity of this camera is complemented by its high resolution. With a pixel size of 15μm X15μm, it can capture detailed images with a high level of precision, making it suitable for identification and recognition purposes.
The Cooled Thermal Camera delivers superior image quality, thanks to its advanced infrared technology. It can capture images in a wide range of temperatures and lighting conditions, providing clear and crisp images at all times.
The Cooled Thermal Camera features a user-friendly menu and OSD (On-Screen Display) that allows for easy customization of settings and functions. This enables users to adjust the camera's settings according to their specific needs and preferences.
This camera is housed in a sturdy and durable aluminum alloy enclosure, making it suitable for outdoor use. The enclosure is also sealed, providing protection against dust, moisture, and other environmental factors, ensuring the longevity of the camera.
In conclusion, the Cooled Thermal Camera is a high-performance and reliable product that offers exceptional features, making it a top choice for security and surveillance needs. Its advanced technology, high sensitivity, high resolution, superior image quality, and durable enclosure make it a valuable investment for any security system.
1. 8-320mm full HD visible camera, 2 mega pixels CCD, 1-10km detection range in the daytime.
2. 75mm/105mm /155mmthermal camera, 384*288/640*512 resolution, 1-18km detection range at day/night.
3.45mk NETD produces crisp thermal image under all weather conditions.
4. Fog penetration (optional), optical filtering and image
Processing
5.50kg load duty and 360 degree rotation.
6.IP66 ingress protection ensures camera´s proper functioning under tough weather conditions.
| Model | HP-HTVC6519-2150 |
| Detection | Vehicle: 16km;Human:5.8km |
| Identification | Vehicle:4.2km;Human: 1.6km |
| Thermal sensor |
VOx uncooled detector, 640*512 resolution for option 7.5um-14um spectral response, 45mk NETD |
| Thermal lens |
38mm～190mm,
|
| 5X continuous zoom, auto focus | |
| 64X digital zoom | |
| Image process |
1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display 5. NUC correction: automatic / manual correction, background correction |
| Enhancement |
1.Protection from strong light, Sunburn protection 2.Temperature correction: a thermalization design, the image sharpness is not affected by temperature 3. Scene mode: support multi-configuration scene, adapt to different environment application |
| Intelligent Analysic |
1.Intrusion detection; 2.Fire Alarm/Hot Alarm 3. Ranging Scale; 4.Support Auto Track (together with software) |
| Visible Camera sensor | 1/1.8'' CMOS |
| 0.0002lux super high sensitive color to B/W CCD | |
| 2.1 MP resolution | |
| Automatic ICR switch | |
| H.264/MPEG4/MIPEG | |
| 32Kbps~16Mbps,60Hz30 FPS | |
| Visible Camera lens |
8mm～500mm |
| 62X zoom | |
| Auto focus | |
| 2MP full HD resolution | |
| Housing | Material:High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated |
| Structure:Integrated multi-window design | |
| Surface coating:PTA three-resistance coating, Seawater corrosion resistance | |
| Built-in thermostat, design of thermal equilibrium | |
| Interface:Aviation waterproof plug | |
| PTZ | Load:50kg |
| Pan: 0~360°, Tilt: +45°～-45° | |
| Speed:Pan: 0.01～30°/S, Tilt: 0.01～15°/S | |
| Preset: 255, with Petrol/scan function, Azimuth real-time display, Zero correction function | |
| Interface | RJ45 Interface |
| Video format | H.264, Dual video output |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP ect. Other protocol |
| Support ONVIF2.0 | |
| Pelco-P,Pelco-D,Baudrate 2400,4800,9600,19200 optional | |
| Power supply | AC24V/DC24V±10%,50Hz,150W,Standard AC220V->AC24V power supply |
| Environment | Operating temperature:-35℃～+60℃(-45℃ optional)；Storage temperature:-40℃(-50℃ optional)～+65℃ |
| Humidity:<90% | |
| Anti-lighting:built-in auto Fuse-protected device, Power 4000V,Signal 2000V | |
| Ingress protection:IP66 |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
The Cooled Thermal Camera is carefully packaged to ensure safe delivery to our customers. Each camera is placed in a sturdy cardboard box with foam padding to protect it from any damage during transportation. The box is then sealed with strong tape to prevent any tampering or accidental opening.
Inside the box, you will find the Cooled Thermal Camera, along with its accessories and user manual. The camera is secured in a custom-fit foam insert to prevent any movement during shipping. The accessories and manual are also placed in their own separate compartments to ensure they do not get damaged or lost.
Our company offers worldwide shipping for the Cooled Thermal Camera. We use trusted and reliable shipping carriers to ensure timely delivery and safe handling of our products. The shipping cost may vary depending on the destination and shipping method chosen by the customer.
Once your order is placed, our team will carefully package and ship the Cooled Thermal Camera to your desired location. You will receive a tracking number to keep track of your order and estimated delivery date. Our customer service team is always available to assist you with any shipping inquiries or concerns.
With our secure packaging and efficient shipping methods, you can trust that your Cooled Thermal Camera will arrive safely and in perfect condition.
