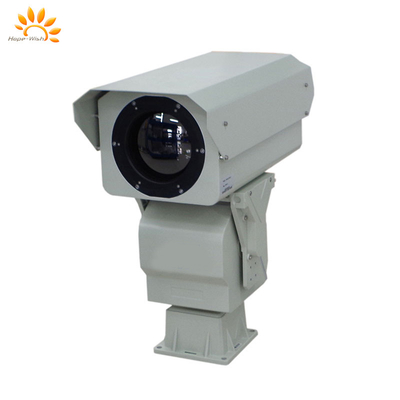

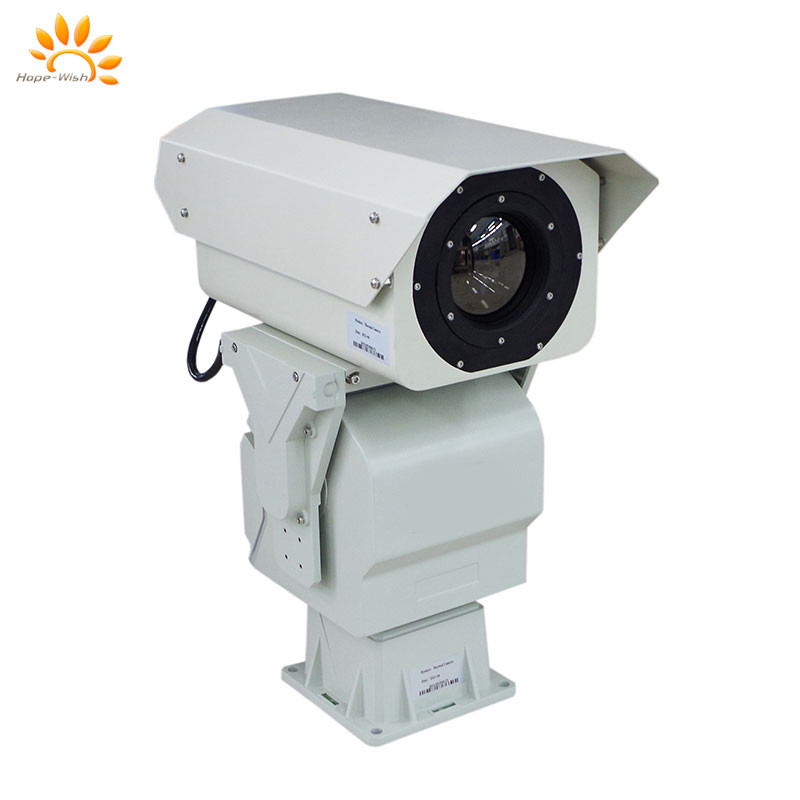

Industrial Infrared Thermal Imaging Camera With 50 MK Sensitivity And Cooled Thermal

Industrial Infrared Thermal Imaging Camera With 50 MK Sensitivity And Cooled Thermal
Industrial Infrared Thermal Imaging Camera With 50 MK Sensitivity And Cooled Thermal Industrial Infrared Thermal Imaging Camera With 50 MK Sensitivity And Cooled Thermal

Large Image :  Industrial Infrared Thermal Imaging Camera With 50 MK Sensitivity And Cooled Thermal

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, ROHS, ISO9001
Model Number: HP-CTC63030
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 15-30
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 units per month

Industrial Infrared Thermal Imaging Camera With 50 MK Sensitivity And Cooled Thermal

Lens Material: Germanium Image Enhancement: SDE
Pixel Size: 15μm X15μm Field Of View: 9.2° X 6.9°
Ip Rate: IP66 Waterproof Technology: Infrared Thermal
Enclosure: Aluminum Alloy, Sealed; Spectral Range: 3.5 - 5.0 μm
High Light:

Infrared Cooled Thermal Camera


IP66 Waterproof Infrared Thermal Imaging Camera


Infrared Thermal Imaging Camera 50 MK

Product Description:

CTC Series Ultra Long Range Cooled Thermal Camera is developed on the basis of the latest cooled IR technology. Featuring high NETD, advanced digital circuit and image processing algorithm, the camera provides users crisp thermal images. While ensuring wide coverage, it also meets ultra long range surveillance demand detection range. The camera enclosure is IP66 rated, which is designed to withstand the harshest weather conditions.
Key Features
  • 20mk NETD ensures premium thermal image.
  • Unique AS continuous optical zoom and 3CAM high precision mechanical engineering.
  • Superb inhomogeneous correction ensures crisp thermal image.
  • SDE image enhancement.
  • Aluminum alloy enclosure, IP 66 rated.

The Cooled Thermal Camera is a state-of-the-art imaging device that utilizes advanced technology to capture high-resolution thermal images even in the harshest conditions. Equipped with Cooled Infrared Detectors, this camera is designed for professionals who require precise and accurate thermal imaging capabilities.

Superior Performance in Extreme Environments

With an IP66 Waterproof rating, the Cooled Thermal Camera is built to withstand extreme weather conditions, making it suitable for outdoor use in a variety of industries. Whether it's heavy rain, strong winds, or dusty environments, this camera will continue to function at its best, providing you with reliable and accurate thermal images.

Unparalleled Spectral Range

The Cooled Thermal Camera boasts a spectral range of 3.5 - 5.0 μm, allowing it to detect thermal radiation in a wider range of wavelengths. This means that it can capture more detailed and precise thermal images, making it a valuable tool for various applications such as industrial inspections, research and development, and security surveillance.

Exceptional Sensitivity with Low Netd

With a Netd of only 20mK (@25℃ F2.0), the Cooled Thermal Camera offers exceptional sensitivity that enables it to detect even the smallest temperature differences. This means that it can capture thermal images with high contrast and clarity, allowing you to identify potential issues or targets with ease.

Advanced Image Enhancement Technology

The Cooled Thermal Camera features Image Enhancement capabilities, specifically Spatial Detail Enhancement (SDE). This technology enhances the details and edges of thermal images, providing you with clearer and sharper visuals for better analysis and decision-making.

Designed for Cooled Thermal Imaging

The Cooled Thermal Camera is a specialized imaging device that is specifically designed for cooled thermal imaging. Its advanced features and superior performance make it a valuable tool for professionals in various industries such as military, aerospace, medical, and more.



  • Technology: Infrared Thermal
  • Long range 24-hours monitoring.
  • Delicate and smooth images.
  • Convenient for installation and application.
  • 360 degree of Omni-directional Pan-Tilt
  • Super-strong aluminum alloy with IP66
  • Higher sensitivity
  • Effective in all environments
  • Small size and low weight

Technical Parameters:

Technical Specifications for Cooled Thermal Camera
Model HP-CTC63030


Detect distance

Tank :15000m

Human :8000m


Identification distance






FPA MCT detector

Cooling Stirling cryocooler



Pixel size 15μm
Spectral range 3.7~4.8μm MWIR





30~300mm continuous zoom F4.

Optical axis stability 1.2mrad





Image processing

.3CAM high-precision optomechanical design

.Image enhancement: SDE;

.Color: White hot/Black hot;

.Brightness and contrast: AGC, adjustable;

.Digital zoom: 2X, 4X

.Cross: display

.Correction: Shutter/Background

Lens control Motorized zoom, auto focus




Environmental indicators

.Enclosure: aluminum alloy, sealed;

.Working temp: -40℃~+60℃

.Storage temp:-45℃~+70℃

.Ingress protection: IP66

.Power consumption: 23W(normal), 30W(peak)





.Control: RS485/RS232(PELCO D, baud rate:2400bps/s)

.Menu: OSD

.Video: PAL/NTSC

.Power supply: DC24V

.Connector: waterproof aviation connector



  • Seaport and airport monitoring;
  • Water system monitoring;
  • Storage monitoring;
  • Military base security monitoring;
  • Oilfield & oil depot security;
  • Fire source prevention & monitoring;
  • Ecological and environmental monitoring;
  • Border and coastal defense;
  • Urban security and anti-UAV applications;
  • Highways and railways monitoring.


Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

Industrial Infrared Thermal Imaging Camera With 50 MK Sensitivity And Cooled Thermal 0
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
Industrial Infrared Thermal Imaging Camera With 50 MK Sensitivity And Cooled Thermal 1

Packing and Shipping:

Product Name: Cooled Thermal Camera
Packaging and Shipping

This high-tech Cooled Thermal Camera is carefully packaged to ensure safe transport and delivery to our customers. The packaging is designed to protect the camera from any potential damage during transit. Here is the step-by-step process for packaging and shipping:

Packaging Process:

  • Step 1: The Cooled Thermal Camera is carefully placed in a sturdy box with a protective foam lining.
  • Step 2: The box is sealed and labeled with the product name and shipping information.
  • Step 3: The box is then placed in a larger shipping box for additional protection.
  • Step 4: The shipping box is secured with strong tape and labeled with the necessary shipping information.

Shipping Process:

  • Step 1: Once the package is securely sealed, it is handed over to our trusted shipping partner.
  • Step 2: The shipping partner will transport the package to the destination using the most efficient and secure method.
  • Step 3: Customers will receive a tracking number to monitor the status of their shipment.
  • Step 4: The package will be delivered to the designated address within the estimated delivery time.

We take great care in packaging and shipping our Cooled Thermal Camera to ensure that it arrives in perfect condition. In the rare case of any damage during transit, please contact our customer service team for assistance.
