10km Long Range Cooled Thermal Camera IP66 Waterproof Ir Thermal Camera

10km Long Range Cooled Thermal Camera IP66 Waterproof Ir Thermal Camera
10km Long Range Cooled Thermal Camera IP66 Waterproof Ir Thermal Camera 10km Long Range Cooled Thermal Camera IP66 Waterproof Ir Thermal Camera

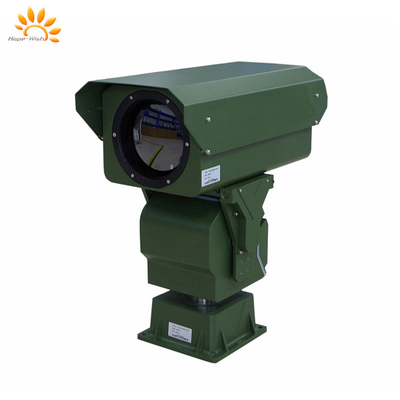

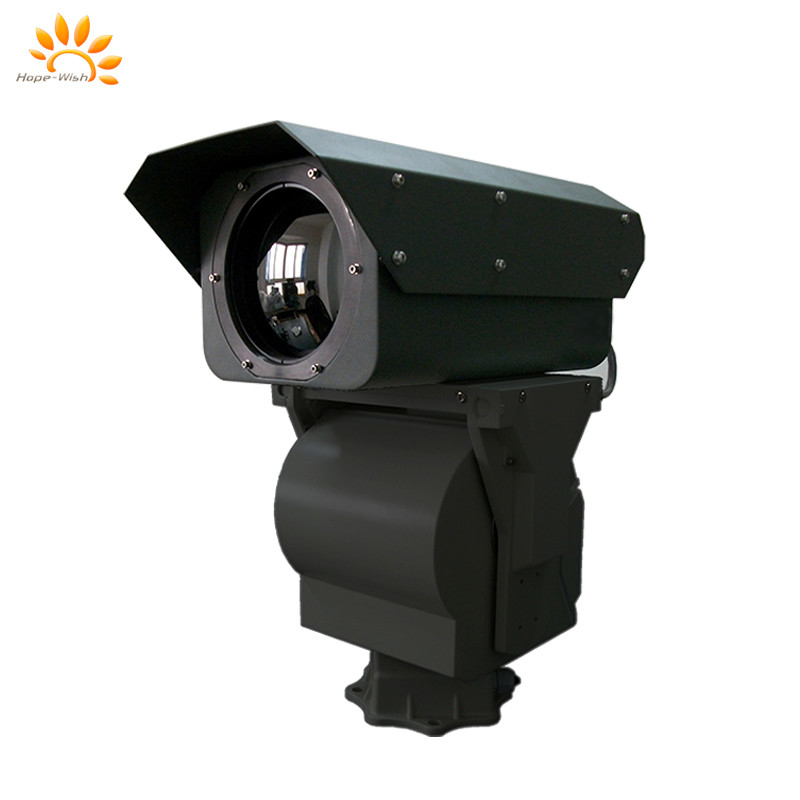

Large Image :  10km Long Range Cooled Thermal Camera IP66 Waterproof Ir Thermal Camera

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, ROHS, ISO9001
Model Number: HP-CTC62245
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 15-30
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 units per month

10km Long Range Cooled Thermal Camera IP66 Waterproof Ir Thermal Camera

Description
Pixel Size: 15μm X15μm Dimensions: 160 X 120 X 120 Mm
Menu: OSD Technology: Infrared Thermal
Type: Cooled Thermal Ip Rate: IP66 Waterproof
Field Of View: 9.2° X 6.9° Spectral Range: 3.5 - 5.0 μm
High Light:

IP66 Waterproof Ir Thermal Camera

,

Ir Thermal Camera 10km

,

OSD Menu Cooled Thermal Camera

Product Description:

CTC Series Ultra Long Range Cooled Thermal Camera is developed on the basis of the latest cooled IR technology. Featuring high NETD, advanced digital circuit and image processing algorithm, the camera provides users crisp thermal images. While ensuring wide coverage, it also meets ultra long range surveillance demand detection range. The camera enclosure is IP66 rated, which is designed to withstand the harshest weather conditions.
Key Features
  • 20mk NETD ensures premium thermal image.
  • Unique AS continuous optical zoom and 3CAM high precision mechanical engineering.
  • Superb inhomogeneous correction ensures crisp thermal image.
  • SDE image enhancement.
  • Aluminum alloy enclosure, IP 66 rated.

Are you tired of struggling with poor visibility during your hunting trips or outdoor adventures? Say goodbye to those days and welcome the latest technology in thermal imaging with our Cooled Thermal Camera. This state-of-the-art camera is designed to provide you with a clear and accurate view of your surroundings, no matter the lighting conditions.

Experience the Power of Infrared Thermal Imaging

Our Cooled Thermal Camera is not your average infrared thermal imaging camera. It is a powerful tool that offers exceptional performance and reliability. With this camera, you can see in the dark, through fog, smoke, and even camouflage. It is designed to help you detect heat signatures, making it perfect for hunting, surveillance, and outdoor security applications.

The Ultimate Infrared Thermal Scope for Hunting

Are you an avid hunter looking for an edge over your prey? Look no further than our Cooled Thermal Camera. With its FPA MCT detector and a spectral range of 3.5 - 5.0 μm, this camera offers superior image quality and helps you detect your target with ease. It is designed to give you a competitive advantage in the field, making it the ultimate infrared thermal scope for hunting.

Customize Your Camera with OSD Menu

Our Cooled Thermal Camera features an on-screen display (OSD) menu that allows you to customize various settings according to your preference. You can adjust image contrast, brightness, and polarity, among other options. This feature gives you complete control over your camera and enhances your overall viewing experience.

Enhance Your Images with SDE Image Enhancement

To ensure that you get the best possible images, our Cooled Thermal Camera also comes with SDE (scene-dependent enhancement) image enhancement. This feature automatically adjusts contrast and sharpness based on your surroundings, providing you with clear and detailed images even in challenging environments.

Built to Withstand Any Environment

Our Cooled Thermal Camera is designed to withstand even the harshest environments. With an IP66 waterproof rating, it is completely dust and water-resistant, making it suitable for use in any weather condition. Whether it's raining, snowing, or dusty, you can trust our camera to perform flawlessly.

Get Your Cooled Thermal Camera Today

Invest in the latest technology and take your thermal imaging experience to the next level with our Cooled Thermal Camera. Whether you're a hunter, outdoor enthusiast, or security professional, this camera is the perfect tool for you. Don't wait any longer, get yours today and see the world in a whole new light!



Features:

  • Technology: Infrared Thermal
  • Long range 24-hours monitoring.
  • Delicate and smooth images.
  • Convenient for installation and application.
  • 360 degree of Omni-directional Pan-Tilt
  • Super-strong aluminum alloy with IP66
  • Higher sensitivity
  • Effective in all environments
  • Small size and low weight


Technical Parameters:

Model HP-CTC62245
Detection Vehicle: 19000m / Human: 12000m
Identification Vehicle: 9000m / Human: 4500m
Thermal Camera
Sensor

Cooled Focal Plane Array (FPA) MCT HgCdTe detector Stirling cryocooler

Resolution 640 × 512 pixel
Spectral range 3.7 - 4.8μm, MWIR
NETD 20mK (@25℃ F4.0)
Focal length 22 - 450mm
Field of view(horizontal) 25°×18°~1.3°×1°
PTZ
Duty 30kg CNC PT
Rotation Pan: 0~360°, Tilt: -45°~+45°
Rotation speed Pan: 0.01°~30°/S, tilt: 0.01°/S ~15°/S
Accuracy ±0.1°
Preset 255 presets, support lens zooming and focusing preset
Mode Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising
Network
Network interface RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485)
Network Protocol TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0, GB28181 and other network protocol.
Environment Parameter
Operating temperature -25℃~+60℃(-40℃ Optional)
Storage temperature -45℃~70℃
Protection Level IP66
General
Total Consumption 180W
Power supply AC/DC24V, anti-reverse connection protection
Weight ≤25kg (include PTZ)


Applications:

  • Seaport and airport monitoring;
  • Water system monitoring;
  • Storage monitoring;
  • Military base security monitoring;
  • Oilfield & oil depot security;
  • Fire source prevention & monitoring;
  • Ecological and environmental monitoring;
  • Border and coastal defense;
  • Urban security and anti-UAV applications;
  • Highways and railways monitoring.

Customization:


  • Personalized Branding: Want to make your Cooled Thermal Camera stand out? We can add your company's logo and branding to the camera.
  • Specific Features: Have a specific feature or function in mind? We can work with you to incorporate it into your customized camera.
  • Special Lens Material: Need a different lens material for your camera? We offer customization options for lens material, including Germanium.
  • IP Rating: Is IP66 Waterproof not enough for your needs? We can customize the IP rating to suit your requirements.
  • Unique Model Number: Want a unique model number for your camera? We can personalize the model number to your specifications.
How to Customize Your Cooled Thermal Camera

Customizing your Cooled Thermal Camera with Hope-Wish is a simple and efficient process. Just follow these steps:

  1. Discuss Your Needs: Contact us to discuss your customization needs and preferences.
  2. Receive a Quote: Our team will provide you with a detailed quote for your customized camera.
  3. Approve the Design: Once you are satisfied with the quote, our team will work on the design and send it to you for approval.
  4. Finalize the Order: After the design is approved, we will finalize the order and start manufacturing your customized Cooled Thermal Camera.
  5. Receive Your Customized Camera: Sit back and wait for your customized camera to be delivered to your doorstep.

Don't settle for a one-size-fits-all Infrared Thermal Imaging Camera. Choose Hope-Wish and customize your Cooled Thermal Camera to suit your unique needs and preferences.

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

10km Long Range Cooled Thermal Camera IP66 Waterproof Ir Thermal Camera 0
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
10km Long Range Cooled Thermal Camera IP66 Waterproof Ir Thermal Camera 1

Packing and Shipping:

Cooled Thermal Camera Packaging and Shipping

Our Cooled Thermal Camera is carefully packaged to ensure safe delivery to our customers. The packaging is designed to protect the camera from any potential damage during transit.

The camera is first wrapped in a layer of protective bubble wrap to provide cushioning. It is then placed in a sturdy cardboard box with foam inserts to prevent it from moving around during shipping.

Our packaging is also designed to be environmentally friendly. The cardboard box and foam inserts are made from recycled materials.

Once the camera is packaged, it is then sealed and labeled with the necessary shipping information, including the recipient's address and a tracking number for easy monitoring of the shipment.

We offer various shipping options to meet our customers' needs, including standard and expedited shipping. Our team works closely with trusted shipping carriers to ensure timely and secure delivery of our Cooled Thermal Camera to our customers.

Upon receiving the camera, customers can expect it to be in pristine condition, ready to be used for their thermal imaging needs.

Thank you for choosing our Cooled Thermal Camera. We strive to provide the best quality products and ensure a smooth shipping experience for our customers.
