Product Details:
|
Frame Rate: | 9 Hz | Accuracy: | +/-2°C Or 2% |
---|---|---|---|
Weight: | 10kg | Size: | 600mm X 600mm X 550mm |
Spectral Range: | 7.5 To 13μm | Power Supply: | 5V DC |
Storage Temperature: | -40°C To +70°C | Image Resolution: | 640 X 512 |
High Light: | Infrared Long Range Thermal Camera,640 X 512 Lens Security Camera,5V Multi Sensor Lens Security Camera |

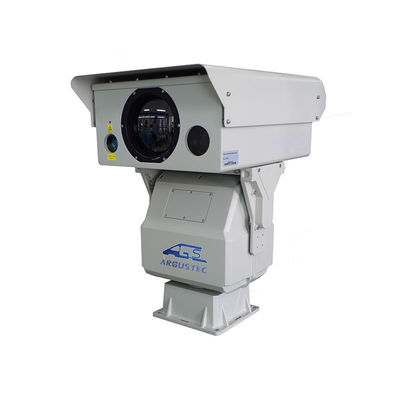

Multi Sensor Thermal Camera is an innovative infrared thermal imaging camera, infrared thermal camera module, and face recognition infrared thermometer that is designed to provide accurate temperature readings over a wide range of temperatures. It has a storage temperature range of -40°C to +70°C, with an accuracy of +/-2°C or 2%. It is also built to withstand humid conditions of up to 95% RH. With a weight of only 10kg, it can easily be taken from one place to another. Its temperature range extends from -20°C to +120°C, making it suitable for a variety of industrial and commercial applications.
The Multi Sensor Thermal Camera is perfect for scanning faces and detecting temperatures without contact. It uses the latest infrared technology to capture clear images and accurate temperature readings. The camera is designed to be user-friendly and its intuitive graphical interface allows users to quickly operate the system. Its advanced algorithms also ensure that the readings are always accurate and reliable.
Multi Sensor Thermal Camera is the perfect choice for anyone looking to take their temperature readings to the next level. It provides accurate readings over a wide range of temperatures and is easy to use and transport. With its advanced infrared technology and intuitive graphical interface, it is the perfect choice for industrial and commercial applications.
Model | HP-TRC6516-2186 |
Detection | Vehicle: 13km,Human:4.8km |
Identification | Vehicle:3.4km, Human: 1.3km |
Thermal Camera System | |
Sensor | 5th generation FPA VOx uncooled detector |
Resolution | 640*512(optional 384*288) |
Spectral range | 7.5~14μm |
NETD | 50mK (@25℃ F1.0) |
Focal length | 31mm~155mm, 5X continuous zoom, auto focus |
FOV | 20°*15°~4°*3° |
Image process |
1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display |
Lens Control |
1.Zoom: Electrical Zoom. 2.Focus: Manual/Auto Focus 3. Optical machine: 3CAM mode and AS+DOE optical structure, high infrared over transmission, zoom process without virtual focus, smaller axis. |
Visible Camera System | |
Camera | 1/1.8” star level CMOS, 0.00051lux/0.0001lux color to B/W CCD |
2 MP ,1920X1080 | |
Automatic ICR switch | |
H.264/H.265 MPEG4/MIPEG | |
32Kbps~16Mbps,60Hz30 FPS | |
Visible lens | 11mm~860mm, 2MP resolution, 78X zoom, auto focus |
Laser Illumination | |
Consumption | 15W, 808nm military NIR |
Illumination Angle | 0.5°~20° |
Synchronization control | DSS digital stepping illumination angle control technology, 0.1 degree precise servo control |
Housing | |
Material | High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated |
Surface coating | PTA three-resistance coating, Seawater corrosion resistance |
Temp. Control | Built-in thermostat, design of thermal equilibrium |
Interface | Aviation waterproof plug |
PTZ | |
Load Capacity | 30kg |
Range/Speed | Range:Pan: 0~360°, Tilt: +45°~-45°; Speed: Pan: 0.01~60°/S, Tilt: 0.01~30°/S |
Preset | 255 |
Scan | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising. |
Interface | |
Network Interface | RJ45 |
Network Protocol | Support TCP/IP, UDP, IPv4/v6; Support HTTP,RTP,RTSP,NFS,HDCP,NTP,SMTP,,PPPoE,DNS, FTP, Onvif |
Power Supply | AC/DC24V, anti-reverse connection protection |
Environment Parameter | |
Working/Storage Temp. | Working temperature: -25℃~+60℃(-40℃for optional); Storage temperature: -45℃~70℃ |
Seismic/Impact Resistance | 0.2g/15g |
Anti-lighting | Built-in auto Fuse-protected device, Power 4000V,Signal 2000V |
Ingress Protection | IP 66 |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Multi Sensor Thermal Camera Custom Service
Introducing Hope-Wish HP-TRC Multi Sensor Lens Security Camera, our top-of-the-line Infrared Thermal Scope. This High Resolution Thermal Camera Module offers a Spectral Range of 7.5 to 13μm, along with a Frame Rate of 9 Hz. Its size is 600mm x 600mm x 550mm, and it has a Storage Temperature range of -40°C to +70°C and a Humidity range of 0 to 95% RH.
Choose Hope-Wish HP-TRC Multi Sensor Thermal Camera for a truly reliable and efficient surveillance solution.
At XYZ, we provide comprehensive technical support and service for our Multi Sensor Thermal Camera product. Our support team is staffed with experienced engineers and technicians who are available to assist you with any questions or issues you may have. Our team is committed to providing the highest level of customer service and support to ensure your satisfaction.
We provide a variety of technical support services for our Multi Sensor Thermal Camera product, including:
If you need assistance with your Multi Sensor Thermal Camera product, please contact our support team at XYZ. We look forward to helping you get the most out of your Multi Sensor Thermal Camera.
