Product Details:
|
| NETD: | 20mK(@25℃ F2.0) | Spectral Range: | 3.7-4.8μm, NWIR |
|---|---|---|---|
| Video: | PAL | Menu: | OSD |
| Lens: | Zoom Lens | Warranty: | One Year |
| Highlight: | infrared thermal camera,cooled thermal imaging camera |
||

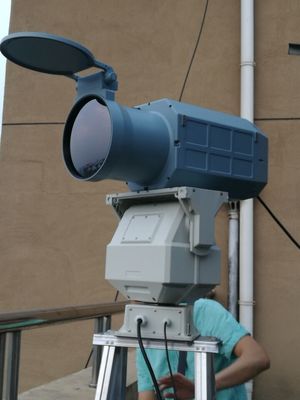

Long Range Cooled sensor thermal imaging camera for harbor surveillance
CTC Series Ultra Long Range Cooled Thermal Camera is developed on the basis of the latest cooled IR technology. Featuring high NETD, advanced digital circuit and image processing algorithm, the camera provides users crisp thermal images. The camera comes in 3 types, i.e. 20X continuous zoom, bi-fov and tri-fov.
Feature
Application
Costal defense, harbor, oil field, river lane, airport, safe city.
Technical specification
| Model | CTC61530 | CTC62245 | CTC63570 | CTC610105 | ||||
| Detection | Vehicle:18000m | Vehicle:19000m | Vehicle:20000m | Vehicle:22000m | ||||
| Human: 11000m | Human:12000m | Human: 15000m | Human:18000m | |||||
| Identification | Vehicle:7000m | Vehicle:9000m | Vehicle:15000m | Vehicle:15000m | ||||
| Human:3500m | Human:4500m | Human:6500m | Human:9000m | |||||
| Detector | FPA MCT detector | |||||||
| Cooling | Stirling cryocooler | |||||||
| Resolution | 640×512 | |||||||
| Pixel size | 15μm X15μm | |||||||
| Spectral range | 3.7-4.8μm, NWIR | |||||||
| NETD | 20mK(@25 ℃) | |||||||
| Lens | 15~300mm, 20X continuous optical zoom F4.0 | 22～450mm continuous zoom F4.0 | 35～700mm continuous zoom F4.0 | 105～1050mm continuous zoom F4.0 | ||||
| FOV | 35°×28°～1.8°×1.4° | 25°×18° ~1.3°×1° | 16°×12° ~0.8°×0.6° | 5°×4°～0.5°×0.4° | ||||
| Lens control | Manual/auto focus | |||||||
| Image processing | Image enhancement: SDE; | |||||||
| Color: White hot/Black hot; | ||||||||
| Brightness and contrast: AGC, adjustable; | ||||||||
| Digital zoom: 2X, 4X | ||||||||
| Cross: display | ||||||||
| Correction: Shutter/Background | ||||||||
| Interface | Control: RS485/RS232(PELCO D, baud rate:2400bps/s) | |||||||
| Menu: OSD | ||||||||
| Video: PAL | ||||||||
| Power supply: DC24V | ||||||||
| Connector: waterproof aviation connector | ||||||||
| Environmental indicators | Enclosure: aluminum alloy, sealed; | |||||||
| Working temp: -40°-55° | ||||||||
| Storage temp: -40°-70° | ||||||||
| Ingress protection: IP67 | ||||||||
| Power consumption: 15W(normal), 45W(peak) | ||||||||
| Dimension | Weight: 5kg | Weight: 6.5kg | Weight: 9.5kg | Weight: 10kg | ||||
| Dimension | Dimension | Dimension | Dimension | |||||
|
250mm×120mm ×100mm |
330mm×132mm ×150mm |
390mm×210mm ×210mm |
420mm×230mm ×210mm |
|||||
* The detection distance is related to the object and environment etc. Please contact with us for further information
