Product Details:
|
| NETD: | 50mK | Spectral Range: | 7.5～14μm |
|---|---|---|---|
| Interface: | Aviation Waterproof Plug | Resolution: | 640*512 |
| Feature: | GPS,LRF | Image Process: | DDE |
| High Light: | security camera system,thermal surveillance camera |
||

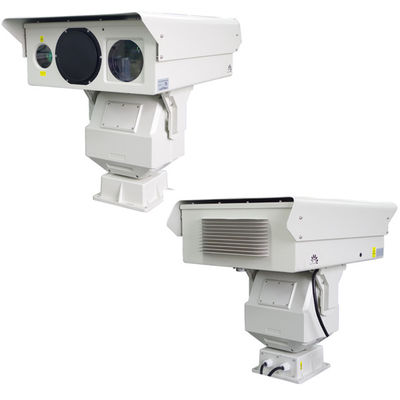

15km IR Laser Long Range Security Camera Thermal Imaging With zoom lens
Multi Sensor camera is a long range camera developed on the basis of latest uncooled infrared technology and infrared optical technology. It adopts the 5th generation UFPA imaging detector, advanced digit circuit and imaging processing algorithm. With the employment of explosion-proof housing, the camera is able to resist severe shock, thus its proper operation is ensured. Its housing is IP66 rated, which enables it to withstand tough weather conditions.
Application
Border defense, railway&expressway security, seaport&airport security, city security, forest fire prevention, river&lake monitoring.
Technical specification
| CCD camera | sensor | 1/3’’ color to B/W CMOS |
| lens | 30～1000mm | |
| Color mode | ICR switch | |
| pixel | 2 mega | |
| resolution | 1920X1080 | |
| Min illumination | 0.005lux | |
| Laser illuminator | power | 20W |
| Wave length | 808nm | |
| FOV | 0.3-20°continuously,auto synchronization | |
| On/off | Photosensitive, auto/manual | |
| Thermal camera | sensor | The 5th generation UFPA |
| resolution | 640X480 | |
| Spectral range | 7.5～14μm | |
| NETD | 50mK@F1.0, 300K | |
| lens | 31～155mm | |
| FOV | 4.2°×3.1°~20.6°×15.5° | |
| Image enhance | SDE | |
| Housing | material | Reinforced aluminum alloy |
| structure | Three view window | |
| glass | 4mm Microcrystalline glass | |
| Camera finish | Ice grey | |
| interface | Aviation waterproof plug | |
|
Pan Tilt |
load | Max 50kg |
| Rotation angle | Pan: 0～360°,tilt: +45°～-45° | |
| speed | Pan 0.01～30°/S, tilt: 0.01～15°/S | |
| decoder | Build-in | |
| preset | 80 |
*
