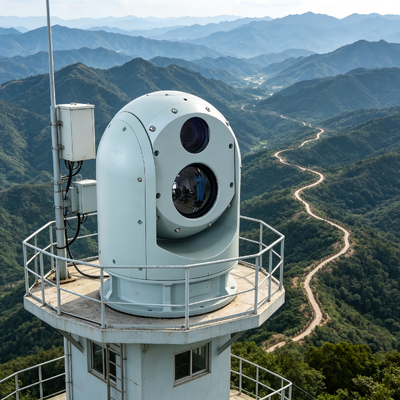

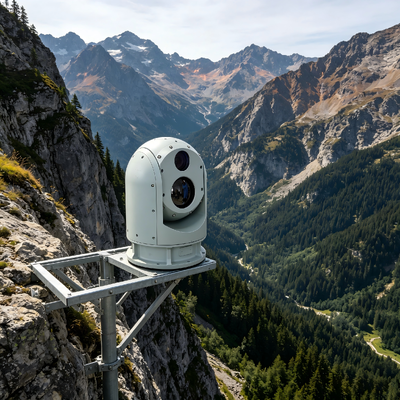

280mm 400mm Thermal Surveillance System Long Distance Multi Sensor Thermal Camera

Product Description:

The Thermal Surveillance System is a state-of-the-art thermal security camera designed to deliver exceptional monitoring capabilities in various environments. Combining advanced infrared thermal camera technology with superior optical and digital zoom features, this system provides unmatched surveillance performance for security and monitoring applications.

Measuring 280mm by 400mm, the compact dimension of this thermal surveillance system ensures easy installation and integration into existing security frameworks without compromising on power or functionality. Despite its relatively small size, it is equipped with a high-performance uncooled sensor detector, which enhances its durability and efficiency while maintaining excellent thermal sensitivity.

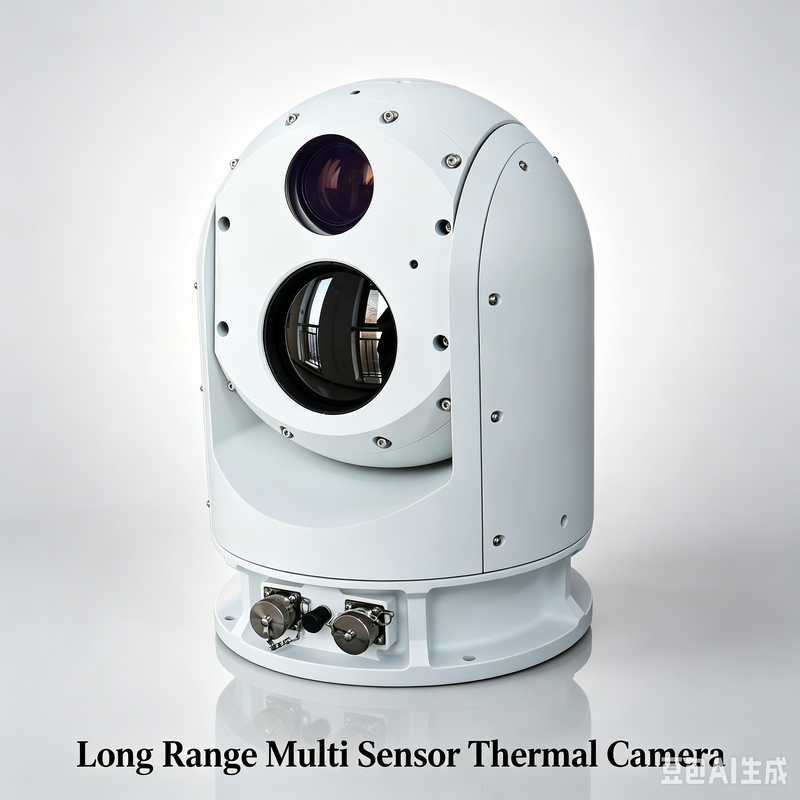

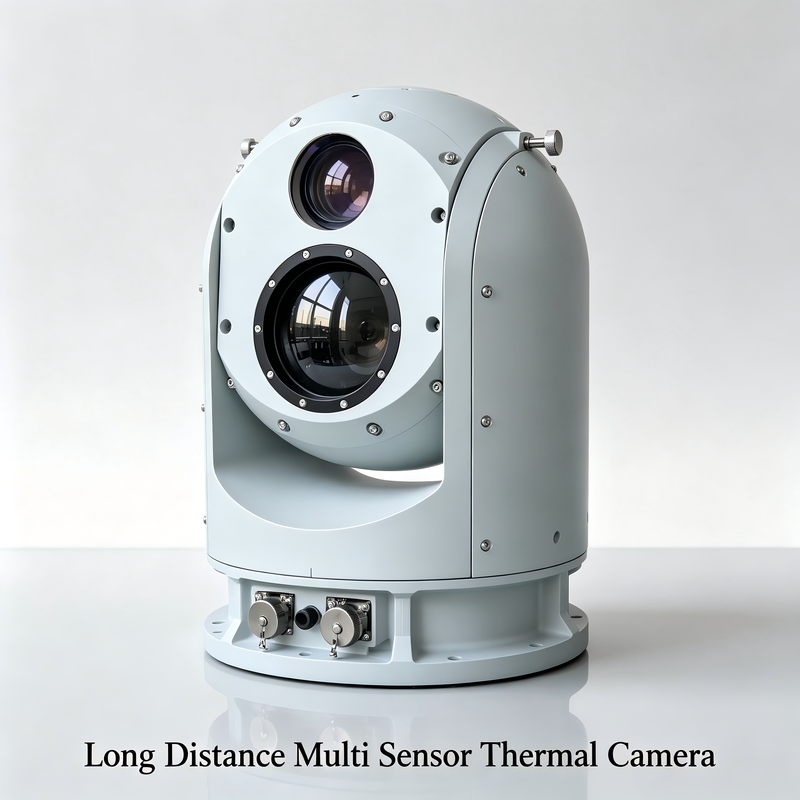

Z201 Series Long Range Multi Sensor Thermal Camera integrates HD daylight camera, uncooled thermal camera, gyro stabilization, intelligent analysis, and precise electronic control. It is designed for ship /shipboard video acquisition and sea surface warning, key target warning, radar linkage and other applications designed long distance detection system, which can adapt to all-weather, all-time, full-dimensional discovery, positioning, tracking, identification and tracking of the target function, the smallest distance to small ships and islands can be up to 10 km.

Features:

1.Multi spectrum: Integrated with HD daylight camera system, uncooled sensor thermal camera system,, and so on. Combined with active and passive detection, 24 hours surveillance in all-weather environments.

2.High/Fast turning speed: turning speed 90°/s, acceleration 120°/s², helpful for capture and tracking fast moving targets.

3.Wide coverage: the azimuth rotation range is 0~360°, and the pitch rotation range is -90° ~+90°, all angle detection, all-round coverage.

4.High control accuracy: using precision angle encoder and high precision servo PT control system, the positioning accuracy can reach 0.02°, high performance imaging processing technology combined with high precision focus control to achieve precise auto focus.

5. Excellent tracking performance: The automatic tracking module is designed with a variety of target acquisition algorithms and tracking algorithms, supplemented by high-precision servo control, to ensure stable tracking of the target during rapid movement and process.

6.Gyro stabilization: The two-axis gyro stabilization structure design effectively isolates the disturbance of the optical system caused by carriers such as vehicles and ships, and always maintains a high degree of image and video stability.

Technical Parameters:

This thermal IP camera and thermal PTZ camera system delivers reliable surveillance performance with durable IP67 protection, precise uncooled sensor detection, and versatile zoom capabilities suitable for various outdoor monitoring applications.

Applications:

The Hope-Wish HP-Z201 Thermal Surveillance System is an advanced infrared thermal camera designed to provide unparalleled security and monitoring capabilities across a wide range of application occasions and scenarios. Equipped with a high-resolution uncooled sensor boasting a pixel size of 12μm and a standard resolution of 640*512 (with an optional upgrade to 1280*1024), this thermal security camera delivers crystal-clear thermal imaging essential for accurate detection and identification.

One of the primary applications of the HP-Z201 is perimeter security for critical infrastructures such as power plants, airports. The system’s impressive detection range allows it to identify vessels up to 10km away, vehicles at 3km, and humans at 1.2km using thermal imaging, while daylight detection extends these ranges even further—20km for vessels, 5km for vehicles, and 2.5km for humans. This makes it an ideal long range security camera for monitoring expansive outdoor areas where early threat detection is crucial.

Law enforcement agencies and border security forces benefit greatly from the HP-Z201’s capabilities. The infrared thermal camera allows for continuous surveillance during both day and night, regardless of weather conditions such as fog, smoke, or darkness, where conventional cameras often fail. This ensures reliable identification of intruders, illegal crossings, or suspicious activities over long distances, enhancing situational awareness and response times.

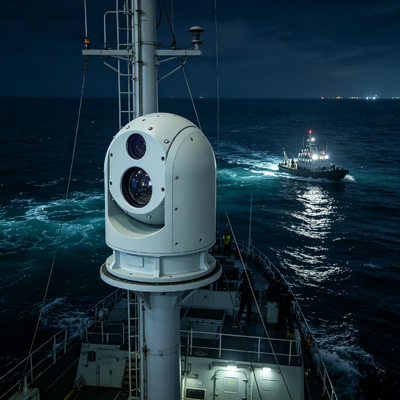

The HP-Z201 is also well-suited for maritime security and search & rescue operations. Its ability to detect vessels at distances up to 10km makes it invaluable for monitoring coastal and offshore zones to detect unauthorized boats or potential hazards. Additionally, rescuers can locate individuals in challenging environments, such as dense forests or at sea, by relying on the thermal security camera’s sensitive detection capabilities.

Furthermore, industrial facilities and large commercial properties utilize the Hope-Wish HP-Z201 to safeguard assets and personnel. The system’s thermal imaging technology ensures effective monitoring of complex environments, identifying heat signatures from equipment or personnel that may indicate safety issues or security breaches. Its robust design and high NETD of 40mK guarantee reliable performance in various environmental conditions.

In summary, the Hope-Wish HP-Z201 long range security camera is an essential tool for diverse applications including perimeter defense, public safety, maritime surveillance, and industrial monitoring. Its superior thermal detection ranges, high-resolution uncooled sensor, and reliable infrared thermal camera technology make it a versatile solution for enhancing security and situational awareness in any scenario requiring precise, long-distance thermal surveillance.

FAQ:

Q1: What is the brand and model number of this Thermal Surveillance System?

A1: The Thermal Surveillance System is manufactured by Hope-Wish, and the model number is HP-Z201.

Q2: What type of thermal imaging technology does the HP-Z201 use?

A2: The HP-Z201 utilizes advanced infrared thermal imaging technology to detect heat signatures for effective surveillance in various conditions.

Q3: Can the HP-Z201 Thermal Surveillance System operate in complete darkness?

A3: Yes, the HP-Z201 is designed to operate efficiently in total darkness by detecting thermal radiation emitted by objects and living beings.

Q4: What are the typical applications for the Hope-Wish HP-Z201 Thermal Surveillance System?

A4: This system is ideal for security monitoring, wildlife observation, search and rescue operations, and industrial inspections where thermal detection is necessary.

Q5: How does the HP-Z201 handle different weather conditions?

A5: The HP-Z201 is built to perform reliably in various weather conditions, including fog, rain, and smoke, as thermal imaging is less affected by environmental factors compared to traditional cameras.
