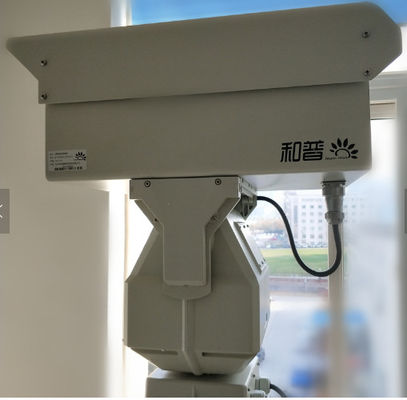

Eo Ir Infrared Dual Thermal Camera 24 Hours Real Time Monitoring Within 2 - 10km

Eo Ir Infrared Dual Thermal Camera 24 Hours Real Time Monitoring Within 2 - 10km
Eo Ir Infrared Dual Thermal Camera 24 Hours Real Time Monitoring Within 2 - 10km Eo Ir Infrared Dual Thermal Camera 24 Hours Real Time Monitoring Within 2 - 10km

Large Image :  Eo Ir Infrared Dual Thermal Camera 24 Hours Real Time Monitoring Within 2 - 10km

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE,FCC
Model Number: TVC4307A-2132-IP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: wooden case
Payment Terms: L/C, T/T, Western Union

Eo Ir Infrared Dual Thermal Camera 24 Hours Real Time Monitoring Within 2 - 10km

Description
Visible Sensor: 2 Megapixels,1920X1080 Image Progress: 2X Digital Zoom
Sensor: Uncooled UFPA Sensor Resolution: 336*256/640*512
Feature: IP66 Technology: PTZ
High Light:

long range ptz camera

,

thermal security camera

PTZ Thermal Imaging Cameras, EO IR Infrared long range security Cameras



Feature:

  1.  specially designed for special purposes, the Camera adopts 2,000,000 visible camera and 336*256/640*512 uncooled thermal camera with large caliber.
  2.  In combination with 360 degree PT, the camera is capable of conducting 24 hours real-time monitoring within 2km-10km.
  3.  With built-in technical grade control electronic system, the camera’s functions like zooming, focusing and video switch can be easily completed.
  4.  The camera is IP66 rates, which ensures camera´s normal operation under tough weather conditions.



Application
City safety, oilfield safety, railway security, night gathering evidence.



Technical specificatin

Model TVC4307A-2132-IP TVC4511A-2050-IP TVC4516A-1930-IP TVC4516A-2075K-IP
Detection Vehicle: 6300m Vehicle: 8600m Vehicle: 13200m Vehicle: 13000m
Human: 2500m Human: 3400m Human:4800m Human:4800m
Identification Vehicle: 1800m Vehicle: 2400m Vehicle: 3400m Vehicle: 3400m
Human: 700m Human: 900m Human: 1300m Human: 1300m
Thermal sensor VOx uncooled detector, 324*256(640*512 optional) / 7.5um-14um spectral response, 50mk NETD
Thermal lens 25mm ~ 75mm 21mm ~ 105mm 31mm ~ 155mm 31mm ~ 155mm
1. Electric zoom and focus (option auto focus)
Fov ( H ) 13° ~ 4.3° 18° ~ 3.4° 18° ~ 3.4° 11.2° ~ 2.2°
Image process 2X digital zoom; Image processing; AGC; 10 pseudo color; SDE image enhancement;
Visible sensor 1/2.8'' CMOS 1/1.8'' CMOS
0.01lux color to B/W CCD 0.0002lux super high sensitive color to B/W CCD
2.1MP ,1920X1080 2 megapixels,1920X1080
Automatic ICR switch Automatic ICR switch
H.264/MPEG4/MIPEG H.264/MPEG4/MIPEG
Visible lens 8mm~320mm 15mm~528mm 4.3mm~129mm 30X 20mm~ 750mm
Electric zoom and focus infrared correction/ motorized zoom super aperture/ motorized zoom
Electric zoom and focus auto aperture auto aperture
Fog filter No AFR color fog filter technology
Housing Material : High strength aluminum alloy shell , waterproof seal , To avoid the growth of mold and moisture generated
Interface : Aviation waterproof plug
PTZ Load : 30kg Load : 50kg
Range : Pan: 0~360°, Tilt: +40° ~ -45° Range : Pan: 0~360°, Tilt: +40° ~ -45°
Speed : Pan: 0.01 ~ 50°/S, Tilt: 0.01 ~ 30°/S Pan: 0.01 ~ 30°/S, Tilt: 0.01 ~ 15°/S
Preset: 80, with Petrol/scan function
Azimuth real-time display, Zero correction function
Interface Intelligent IP box , one 110M/100M adaptive Ethernet port (include thermal+HD visible+RS485) , 1* AC24V/DC24V adapter
Video format H.264, Dual video output
Protocol TCP/IP , HTTP , DHCP , DNS , DDNS , RTP ect. Other protocol
Support ONVIF2.0
Pelco-P , Pelco-D , Baudrate 2400 , 4800 , 9600 , 19200 optional
Power supply AC24V/DC24V±10% , 50Hz , 150W , Standard AC220V->AC24V power supply (Optional DC12V)
Environment Operating temperature : -25 ℃~ +55 ℃( -40 ℃ optional )
Storage temperature : -35 ℃~ +65 ℃
Humidity : <90%
Anti-lighting : built-in auto Fuse-protected device, Power 4000V , Signal 2000V
Ingress protection : IP66
Weight ≤25kg ≤30kg ≤30kg ≤30kg

* The detection distance is related to the object and environment etc. Please contact with us for further information.
