Product Details:
|
| Weight: | 10kg | Accuracy: | +/-2°C Or 2% |
|---|---|---|---|
| Frame Rate: | 9 Hz | Size: | 600mm X 600mm X 550mm |
| Temperature Range: | -20°C To +120°C | Spectral Range: | 7.5 To 13μm |
| Product Name: | Dual Thermal Camera | Power Supply: | 5V DC |
| High Light: | Infrared Long Range Security Camera,5V DC Thermal Imager Camera,Face Recognition Infrared Security Camera |
||

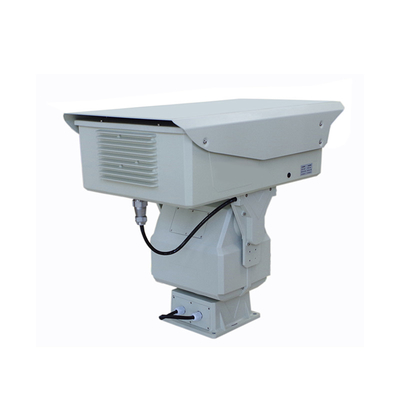

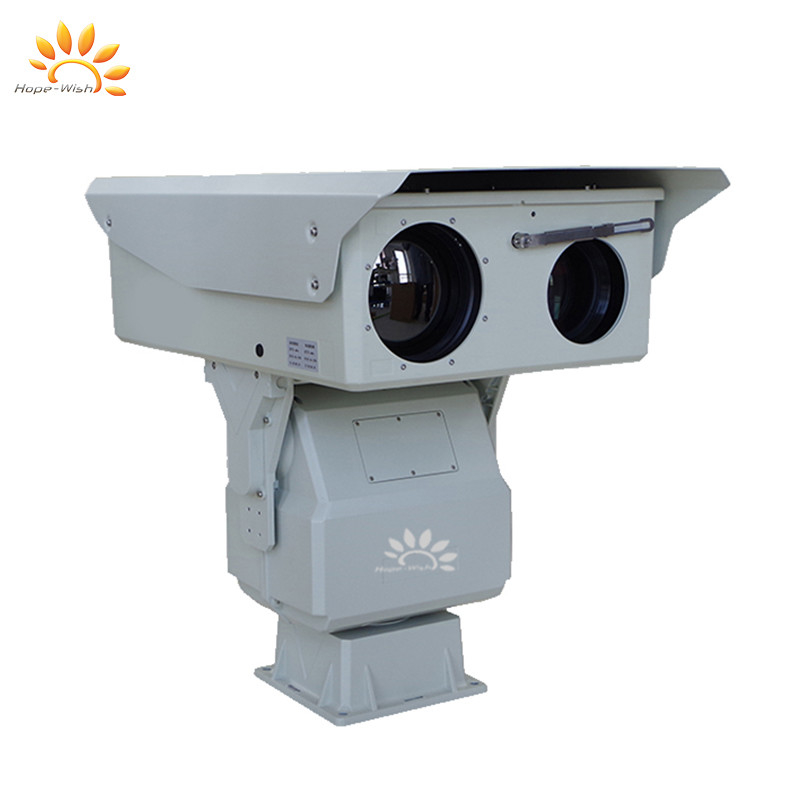

The HP-TTVC6516/4516B-2075-AFP-IP smart dual-band camera is based on the latest fifth-generation uncooled infrared technology and high-definition visible light imaging technology, designed for remote day and night monitoring. Infrared thermal imaging with high sensitivity 640 × 512 / 384 × 288 resolution 17μm ultra-fine resolution uncooled focal plane imaging detector, and AS optical technology designed miniaturized infrared lens, advanced digital circuits and image processing algorithms available Fine and smooth image; visible light adopts full HD color black and white dual mode low illumination CMOS sensor and 30 times compact continuous zoom lens, the volume of the whole machine is greatly reduced, which brings great convenience to users' installation applications, supplemented by 360 The full-scale pan/tilt can realize search and observation within 4000m. The internal industrial-grade embedded control electronic system realizes zooming, focusing, mode switching, pan/tilt/rotation high stability control of the camera, and the overall casing adopts super-strong aluminum alloy to achieve IP66 protection level, ensuring the equipment in the harsh environment in the field. Medium and long term operation.
The Dual Thermal Camera is the perfect infrared thermal scanner for industrial and commercial applications. This innovative infrared thermal scanner module is designed with advanced infrared thermal imaging technology to provide accurate measurements with a temperature range of -20°C to +120°C and an accuracy of +/-2°C or 2%. The high-performance thermal camera module is lightweight and compact, measuring only 600mm x 600mm x 550mm, with an operating temperature of -20°C to +50°C and a weight of 10kg.
This infrared thermal scanner module is capable of capturing detailed thermal images with clear visualizations that make it easier to identify temperature variations. It is ideal for a wide range of applications, including fire prevention, building inspections, and energy management. With its superior thermal imaging technology, the Dual Thermal Camera provides an effective solution for detecting and monitoring all types of heat sources.
| Model | HP-TTVC6516B-2075-AFP-IP | HP-TTVC4516B-2075-AFP-IP | |
| Detection |
Vehicle 13,000 m Human 4,800 m For fire 6,000 m (2m X 2m ) |
||
| Recognition | Vehicle 3,400 m Human 1,300 m | ||
| Sensor | 5th generation UFPA VOx sensor | ||
| Resolution | 640*512 | 384*288 | |
| Spectral response | 7.5～14μm | ||
| NETD | 50mK(@25℃ F1.0) | ||
| Focal length | 31～155 mm | ||
| FOV | 20°×15°～4°×3° | 12.4°×9.3°～2.5°×1.8° | |
| Lens control |
1. Zoom: Electric zoom 2. Focus: manual / auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, precise high speed 3. Optical machine: 3CAM mode and AS+DOE optical machine structure, high infrared transmittance, no virtual focus and small axis in the zoom process |
||
| Image Processing |
1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display 5. NUC correction: automatic / manual correction, background correction |
||
| Visible Camera |
1. 1/1.8'' target surface star-level CMOS, integrated ICR dual filter day and night switching 2. Resolution: 2 Mega pixels, 1920×1080 3. Illumination: color: 0.001 Lux; black and white: 0.0001Lux 4. Encoding: H.265/H.264 video format, support multi-stream 5. Video bit rate: 32Kbps ~ 16Mbps, 60Hz 30 frames / sec 6. Support SD card local storage, support mobile detection, occlusion alarm, cross-border detection, area intrusion detection, face detection 7. Support AFR anti fog, electronic stabilization, white balance, electronic shutter, strong light suppression, 3D digital noise reduction, wide dynamic, anti-infrared overexposed, ABF automatic rear coke adjustment function |
||
| Visible Lens |
1. Focal length: 22~750mm, 200 Megapixel, electric zoom (optional 12.5~750mm lens) 2. Infrared correction: Optical infrared correction design, day and night focus consistent 3. Focus: Manual/Auto Focus, 3A Adaptive active Focus algorithm, support a variety of trigger modes, accurate high-speed 4. Automatic aperture: Support 5. Day and night Light: 0.4-0.75um visible Wide Spectral window and 0.8-0.95um near infrared laser narrow spectrum window clock independent double-pass light window to improve the signal-to-noise ratio of imaging light and stray light 6. Preset Position: Precision potentiometer, zoom focus Feedback |
||
|
Laser Source (optional) |
1. Power: 15 W 2. Wavelength: 810nm military grade infrared laser 3. Illumination angle: 0.5 ° ~ 20 °, DSS digital step lighting angle control technology 4. Homogenization: GHT-II high-definition lens group ultra-homogenization patented technology, brightness balance of all focal lengths is > 92% 5. Laser safety: ZQB safety laser beam processing patent technology, in line with international IEC60825 safety standards |
||
| Housing |
1.Material: integral aluminum alloy housing, stainless steel, anti strong wind ; 2.Structure: Integral double window 3.Window glass: 4mm optical glass ,transmission＞98% ； 4.Surface coating: PTA three-proofing coatings , 5.Protection:IP66(IP67 optional ) 6.Applied thermal balance design and wide temperature electronics ,which could operate under high / low temperature ; 7.Interface : waterproof aviation connector ; |
||
| PT |
1. Load: 50kg PTZ 2. Range: Pan 0 ~ 360 °, Tilt -45 ° ~ +45 ° 3. Speed: horizontal 0.01 ° / S ~ 30 ° / S, pitch 0.01 ° / S ~ 15 ° / S, support lens focal length speed adaptive function 4. Preset position: 255, support lens zoom, focus preset 5. Accuracy: ±0.1° 6. Patrol sweep: support 6 cruises, 1 apple peel, 1 line sweep 7. Watch: Preset / Auto Cruise Route / Auto Scan Route 8. Power-off memory: support (recoverable position before power-off, preset position status, cruise status, line sweep status) 9. Bearing information: support angle query return, positioning 10. Zero point correction: support north direction zero point remote correction function 11. Power consumption: about 120W 12. Weight: 23kg |
||
| Interface |
1. Network interface: 1 way RJ45, 10/100 Base-T adaptive (integrated video output and RS422/485 control communication) 2. Network protocol: support TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2. 0, GB28181 and other network protocols 3. Power supply: AC/DC24V, anti-reverse protection 4. Physical interface: alloy waterproof aviation plug |
||
| Enhanced Function |
1. Glare protection: support, anti-sun burn function 2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature 3. Scene mode: support multiple configuration scenarios, adapt to no environment application 4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes 5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes 6. Lens servo: support lens preset position, focal length return, focus positioning function 7. Parameter setting: OSD menu remote call operation 8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance |
||
| Power & Weight |
1. Total power consumption: 120W 2. Total weight: 25kg (including Pan/Tilt) |
||
| Environment indicator |
1. Working temperature: -25 ℃~ +60℃ (optional -40 ℃) 2. Storage temperature: -45℃ ~ + 70 ℃ 3. Humidity: <90% 4. Earthquake resistance: 0.2g (according to the 5.4 severity level 2 of GB/T15211-2013) 5. Impact resistance: 15g (according to the 5.3 severe level 3 of GB/T15211-2013) 6. Lightning protection: built-in surge protection of interface circuit, power supply 4000V, signal 2000V 7. Anti-salt fog: at pH 6.5 ~ 7.2, continuous spraying for 96 hours, no change in surface Protection level: IP66 |
||
Hope-Wish HP-TTVC is a Dual Thermal Camera which is made in China and its weight is 10kg. It features a Storage Temperature of -40°C to +70°C, a Size of 600mm x 600mm x 550mm, an Interface of USB 2.0 and a Power Supply of 5V DC. This incredible Dual Thermal Camera is a perfect combination of Cooled Camera Modules and Infrared Thermal Camera Module technology, and it is an ideal Infrared Thermal Imaging Camera for a variety of applications.
This Dual Thermal Camera has been designed to provide superior image quality in a wide variety of applications such as security, surveillance, automotive, industrial, scientific and medical imaging. It is also a great tool for monitoring and controlling environmental conditions. The high-performance design offers excellent sensitivity, low noise, and high dynamic range. The camera is compact and lightweight, making it easy to deploy in any environment.
The Hope-Wish HP-TTVC Dual Thermal Camera is the perfect choice for any application where thermal imaging is needed. With its advanced features and high-quality performance, it is sure to provide outstanding results. Whether it is used for security, surveillance, automotive, industrial, scientific or medical imaging, this Dual Thermal Camera is an ideal solution.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Brand Name: Hope-Wish
Model Number: HP-TTVC
Place of Origin: China
Frame Rate: 9 Hz
Focus Mode: Fixed
Accuracy: +/-2°C Or 2%
Operating Temperature: -20°C To +50°C
Temperature Range: -20°C To +120°C
