Product Details:
|
| HD Lens: | 30X Optical, Motorized Zoom, Auto Focus | HD Camera: | 2 Mega Pixels, Auto Color To B/W CMOS At 0.01Lux |
|---|---|---|---|
| Sensor: | Uncooled UFPA Sensor | Resolution: | 640*512 |
| Certificate: | CE FCC | Onvif: | Support |
| High Light: | thermal security camera,long range ptz camera |
||

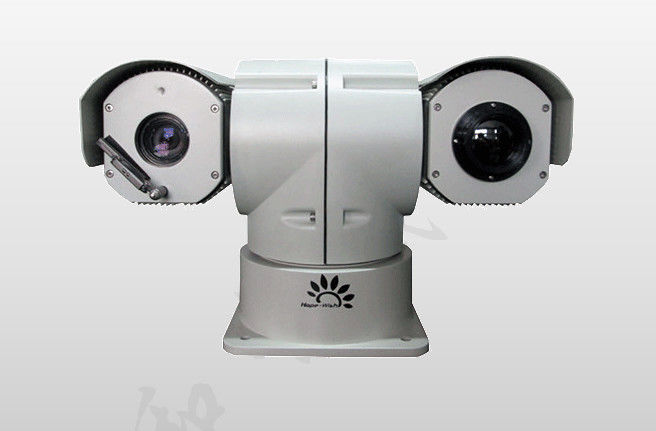

Long Range PTZ Infrared Dual Thermal Camera With IP Surveillance System
BTVC series camera features compact design and accurate positioning. With such functions as presetting and patrolling, the camera leaves no blind spot undetected.
BTVC Series T Shape Dual-Sensor Thermal Camera is high-end custom intelligent surveillance camera. A multi-function device be combined with thermal imaging camera, visible CCD, precise actuating and gearing unit, digital decoder, high-performance image processing unit and control unit.
Application
vehicle mounted surveillance ,police get evidence.City safety, oilfield safety, railway security,
Feature
Technical specification
| Model | BTVC6102A-1930-IP | BTVC6105A-1930-IP | BTVC6307A-2132-IP |
| Detection | Vehicle: 1700m | Vehicle: 4200m | Vehicle: 6300m |
| Human: 720m | Human: 1640m | Human: 2500m | |
| Identification | Vehicle: 420m | Vehicle: 1200m | Vehicle: 1800m |
| Human: 180m | Human: 470m | Human: 700m | |
| Thermal sensor | 640*512, UFPA, 7-14um spectral response, 50mk NETD | ||
| Thermal lens | 20mm F1.0 | 50mm F1.0 | 25～75mm |
| FOV | 15.5°× 11.6° | 6.5×4.8° | 13°×10°～4.3°×3.2° |
| Visible sensor | 2 mega pixels, auto color to B/W CMOS at 0.01Lux | ||
| Visible Lens | 4.3mm ～ 129mm , 30X optical, motorized zoom, auto focus | 8～320mm optical zoom,auto focus | |
| Pan | 0° to 360° continuous | ||
| Tilt | -90°~+90° | ||
| Pan speed | 0°~100°/s | ||
| Tilt speed | 0°~60°/s | ||
| Preset | 128 | ||
| Scan | 3(user can set the starting and end point; adjustable | ||
| Path | 6(16 points for each path, adjustable duration on each point) | ||
| Pattern | 3(approx. 2 minutes for each pattern) | ||
| Menu language | English | ||
| Auto homing | Homing time(1-99mins), homing action(preset/scanning/path/pattern) | ||
| Protocol | Pelco-D/P and other mainstream protocols | ||
| Baud rate | 2400/4800/9600/19200bps | ||
| Heating/defrosting/Wiper | Available | ||
| Interface | 1* BNC analog thermal video, 1* HD IP visible video, 1 *RS485 control, 1 AC24V/DC24V | ||
| Ingress protection | IP66 | ||
| Working temp. | -35~55 ℃ | ||
| Power supply | AC24V/2.5A | ||
| Weight | 7kg | ||
* The detection distance is related to the object and environment etc. Please contact with us for further information.
