Product Details:
|
NETD: | 50mK | Image Processing: | 10 Pseudo Color And B/W, B/W Inverse |
---|---|---|---|
PTZ: | Duty: 50kg | Resolution: | 336*256/640*512 |
Type: | Day&night Camera | Feature: | IP66 |
Highlight: | thermal security camera,long range ptz camera |

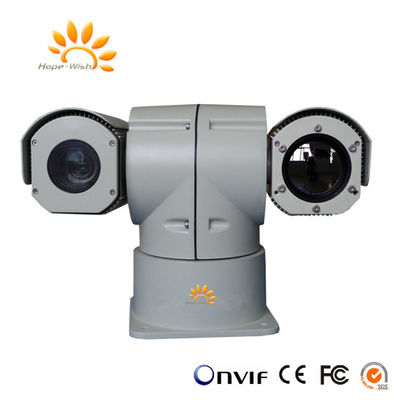

Dual Sensor PTZ Thermal Imaging Camera , infrared vehicle mounted Security Camera
Feature
Application
vehicle mounted surveillance ,police get evidence.City safety, oilfield safety, railway security,
Technical specification
Model | BTVC4102A-1930-IP | BTVC4105A-1930-IP | BTVC4307A-2132-IP |
Detection | Vehicle: 1700m | Vehicle: 4200m | Vehicle: 6300m |
Human: 720m | Human: 1640m | Human: 2500m | |
Identification | Vehicle: 420m | Vehicle: 1200m | Vehicle: 1800m |
Human: 180m | Human: 470m | Human: 700m | |
Thermal sensor | 336*256, UFPA, 7-14um spectral response, 50mk NETD | ||
Thermal lens | 20mm F1.0 | 50mm F1.0 | 25~75mm |
FOV | 15.5°× 11.6° | 6.5×4.8° | 13°×10°~4.3°×3.2° |
Visible sensor | 2 mega pixels, auto color to B/W CMOS at 0.01Lux | ||
Visible Lens | 4.3mm ~ 129mm , 30X optical, motorized zoom, auto focus | 8~320mm optical zoom,auto focus | |
Pan | 0° to 360° continuous | ||
Tilt | -90°~+90° | ||
Pan speed | 0°~100°/s | ||
Tilt speed | 0°~60°/s | ||
Preset | 128 | ||
Scan | 3(user can set the starting and end point; adjustable | ||
Path | 6(16 points for each path, adjustable duration on each point) | ||
Pattern | 3(approx. 2 minutes for each pattern) | ||
Menu language | English | ||
Auto homing | Homing time(1-99mins), homing action(preset/scanning/path/pattern) | ||
Protocol | Pelco-D/P and other mainstream protocols | ||
Baud rate | 2400/4800/9600/19200bps | ||
Heating/defrosting/Wiper | Available | ||
Interface | 1* BNC analog thermal video, 1* HD IP visible video, 1 *RS485 control, 1 AC24V/DC24V | ||
Ingress protection | IP66 | ||
Working temp. | -35~55 ℃ | ||
Power supply | AC24V/2.5A | ||
Weight | 7kg |
* The detection distance is related to the object and environment etc. Please contact with us for further information.
