Product Details:
|
| NETD: | 50mK | Working Temp: | -35~55 ℃ |
|---|---|---|---|
| Sensor: | Uncooled UFPA Sensor | Resolution: | 336*256/640*512 |
| Waterproof: | IP66 | Warranty: | One Year |
| High Light: | thermal imaging camera,thermal security camera |
||

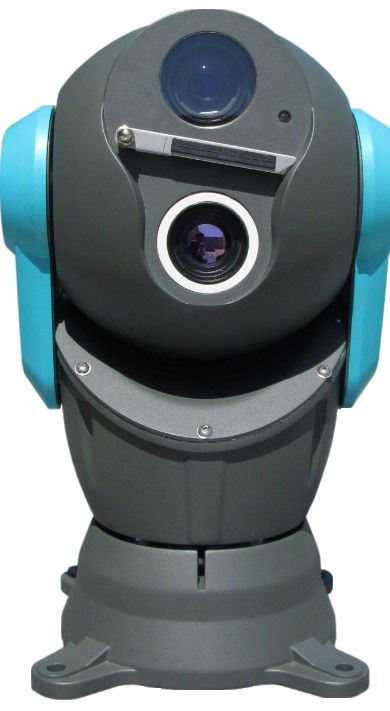

Double Vision Infrared Thermal dome Camera for Police Vehicle Mounted
ETVC41 Series Dual Sensor Thermal Dome Camera is designed on the basis of the latest 5th uncooled infrared technology and infrared optical technology. With 336*256 uncooled FPA sensor, advanced digital circuit and image processing technology, the camera produces super crisp thermal image. The camera is capable of detecting targets within 1km~3km and features compact design.
Feature
Application
vehicle mounted surveillance ,police get evidence.City safety, oilfield safety, railway security,
Technical specification
| Model | ETVC4102-1920-S | ETVC4104-1920-S |
| Detection | For car: 1700m | For car: 3400m |
| For human:720m | For human:1400m | |
| Recognition | For car: 420m | For car: 840m |
| For human: 180m | For human: 360m | |
| Thermal sensor | 336X256 pixel, 5 th generation uncooled FPA, 50mk NETD, 7.5-14um spectral range | |
| Thermal lens | 20mmF1.0 | 40mmF1.0 |
| Field of view | 15.5°X 11.6° | 8°X 6° |
| Visible CCD | 2200000 pixel, 1/4'' 0.01lux color to B/W CCD | |
| Visible lens | 3.4mm ～ 122.4mm, 36 optical zoom, auto focus | |
| Rotation range | Pan: 360° continuously, Tilt: -60° ～ +90° | |
| Rotation speed | Pan: 0.01° ～ 100°/s , Tilt: 0.01° ～ 90°/s, focal length and speed automatically match | |
| Preset | 256, memory record after power breakdown | |
| Auto mode | 6 path protocol/4 path line scan/1 path auto scan | |
| Path pattern | 1 path , total recording time 160sec | |
| Auto watch | Homing time/preset/protocol/line scan | |
| Menu | OSD menu, Chinese and English menu setting | |
| Compass | Compass, after setting the north direction, camera could calculate the other directions | |
| Wiper | Support point and correlation model | |
| Protocol | Auto identify PELCO-D/P and other main protocol | |
| Baud rate | 2400/4800/9600/19200bps | |
| Weather proof | IP66 , TVS1500V anti-lighting , anti-surge | |
| Operational environment | -30~55 ℃ ,＜ 90%RH non-condensing | |
| Power supply | DC10V-18V | |
| Weight and size | Φ230(mm)×348(mm) , 5kg | |
* The detection distance is related to the object and environment etc. Please contact with us for further information.
