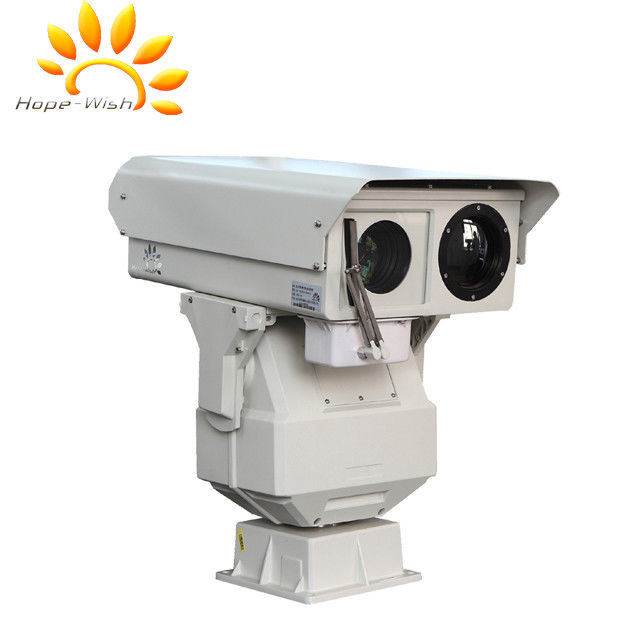

Dual Vision Infrared Thermal Imaging Camera With PTZ AUTO Focus

Dual Vision Infrared Thermal Imaging Camera With PTZ AUTO Focus
Dual Vision Infrared Thermal Imaging Camera With PTZ AUTO Focus Dual Vision Infrared Thermal Imaging Camera With PTZ AUTO Focus Dual Vision Infrared Thermal Imaging Camera With PTZ AUTO Focus Dual Vision Infrared Thermal Imaging Camera With PTZ AUTO Focus

Large Image :  Dual Vision Infrared Thermal Imaging Camera With PTZ AUTO Focus

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE,FCC
Model Number: TVC4516A-2075K-IP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: wooden case
Payment Terms: L/C, T/T, Western Union

Dual Vision Infrared Thermal Imaging Camera With PTZ AUTO Focus

Description
Fog Filter: AFR Color Fog Filter Technology Spectral Range: 7.5~14μm
PTZ: Speed : Pan: 0.01 ~ 50°/S, Tilt: 0.01 ~ 30°/S Resolution: 336*256/640*512
Ir Distance: 1-10km Warranty: One Year
High Light:

thermal imaging camera

,

long range ptz camera

Dual Vision Infrared Thermal Imaging Camera with long range PTZ Surveillance



Feature:

  1.  specially designed for special purposes, the Camera adopts 2,000,000 visible camera and 336*256/640*512 uncooled thermal camera with large caliber.
  2.  In combination with 360 degree PT, the camera is capable of conducting 24 hours real-time monitoring within 2km-10km.
  3.  With built-in technical grade control electronic system, the camera’s functions like zooming, focusing and video switch can be easily completed.
  4.  The camera is IP66 rates, which ensures camera´s normal operation under tough weather conditions.



Application
City safety, oilfield safety, railway security, night gathering evidence.



Technical specification

Model TVC4307A-2132-IP TVC4511A-2050-IP TVC4516A-1930-IP TVC4516A-2075K-IP
Detection Vehicle: 6300m Vehicle: 8600m Vehicle: 13200m Vehicle: 13000m
Human: 2500m Human: 3400m Human:4800m Human:4800m
Identification Vehicle: 1800m Vehicle: 2400m Vehicle: 3400m Vehicle: 3400m
Human: 700m Human: 900m Human: 1300m Human: 1300m
Thermal sensor VOx uncooled detector, 324*256(640*512 optional) / 7.5um-14um spectral response, 50mk NETD
Thermal lens 25mm ~ 75mm 21mm ~ 105mm 31mm ~ 155mm 31mm ~ 155mm
1. Electric zoom and focus (option auto focus)
Fov ( H ) 13° ~ 4.3° 18° ~ 3.4° 18° ~ 3.4° 11.2° ~ 2.2°
Image process 2X digital zoom; Image processing; AGC; 10 pseudo color; SDE image enhancement;
Visible sensor 1/2.8'' CMOS 1/1.8'' CMOS
0.01lux color to B/W CCD 0.0002lux super high sensitive color to B/W CCD
2.1MP ,1920X1080 2 megapixels,1920X1080
Automatic ICR switch Automatic ICR switch
H.264/MPEG4/MIPEG H.264/MPEG4/MIPEG
Visible lens 8mm~320mm 15mm~528mm 4.3mm~129mm 30X 20mm~ 750mm
Electric zoom and focus infrared correction/ motorized zoom super aperture/ motorized zoom
Electric zoom and focus auto aperture auto aperture
Fog filter No AFR color fog filter technology
Housing Material : High strength aluminum alloy shell , waterproof seal , To avoid the growth of mold and moisture generated
Interface : Aviation waterproof plug
PTZ Load : 30kg Load : 50kg
Range : Pan: 0~360°, Tilt: +40° ~ -45° Range : Pan: 0~360°, Tilt: +40° ~ -45°
Speed : Pan: 0.01 ~ 50°/S, Tilt: 0.01 ~ 30°/S Pan: 0.01 ~ 30°/S, Tilt: 0.01 ~ 15°/S
Preset: 80, with Petrol/scan function
Azimuth real-time display, Zero correction function
Interface Intelligent IP box , one 110M/100M adaptive Ethernet port (include thermal+HD visible+RS485) , 1* AC24V/DC24V adapter
Video format H.264, Dual video output
Protocol TCP/IP , HTTP , DHCP , DNS , DDNS , RTP ect. Other protocol
Support ONVIF2.0
Pelco-P , Pelco-D , Baudrate 2400 , 4800 , 9600 , 19200 optional
Power supply AC24V/DC24V±10% , 50Hz , 150W , Standard AC220V->AC24V power supply (Optional DC12V)
Environment Operating temperature : -25 ℃~ +55 ℃( -40 ℃ optional )
Storage temperature : -35 ℃~ +65 ℃
Humidity : <90%
Anti-lighting : built-in auto Fuse-protected device, Power 4000V , Signal 2000V
Ingress protection : IP66
Weight ≤25kg ≤30kg ≤30kg ≤30kg

* The detection distance is related to the object and environment etc. Please contact with us for further information.
