High Stability Heavy Duty Pan Tilt Units Supporting 50kg Payload, 360° Rotation, IP66 Protection for Thermal Camera and Large Optics Mounting

High Stability Heavy Duty Pan Tilt Units Supporting 50kg Payload, 360° Rotation, IP66 Protection for Thermal Camera and Large Optics Mounting
High Stability Heavy Duty Pan Tilt Units Supporting 50kg Payload, 360° Rotation, IP66 Protection for Thermal Camera and Large Optics Mounting
High Stability Heavy Duty Pan Tilt Units Supporting 50kg Payload, 360° Rotation, IP66 Protection for Thermal Camera and Large Optics Mounting High Stability Heavy Duty Pan Tilt Units Supporting 50kg Payload, 360° Rotation, IP66 Protection for Thermal Camera and Large Optics Mounting High Stability Heavy Duty Pan Tilt Units Supporting 50kg Payload, 360° Rotation, IP66 Protection for Thermal Camera and Large Optics Mounting High Stability Heavy Duty Pan Tilt Units Supporting 50kg Payload, 360° Rotation, IP66 Protection for Thermal Camera and Large Optics Mounting

Large Image :  High Stability Heavy Duty Pan Tilt Units Supporting 50kg Payload, 360° Rotation, IP66 Protection for Thermal Camera and Large Optics Mounting

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, RoHS, ISO9001
Model Number: HP–S00W-PT5
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30-60 days
Payment Terms: L/C,D/A,T/T,D/P
Supply Ability: 30sets/month
Contact Now

High Stability Heavy Duty Pan Tilt Units Supporting 50kg Payload, 360° Rotation, IP66 Protection for Thermal Camera and Large Optics Mounting

Description
Panspeed: 0.1 To 100 Degrees Per Second Panrange: 360 Degrees Continuous
Controlmode: Position, Speed, Torque Control Tiltresolution: 0.01 Degrees
Productname: Pan Tilt Unit Weight: 3.5 Kg
Operatingtemperature: -20°C To +60°C Model: PTU-D300
Tiltspeed: 0.1 To 50 Degrees Per Second Controlinterface: RS-232, RS-485, Ethernet
Panresolution: 0.01 Degrees Material: Aluminum Alloy
Powersupply: 24 V DC Payloadcapacity: Up To 10 Kg
Mountingoptions: Base Mount, Wall Mount Tiltrange: +90 To -90 Degrees
Highlight:

heavy duty pan tilt units 50kg

,

360° rotation pan tilt units IP66

,

pan tilt units thermal camera mounting

Product Description:

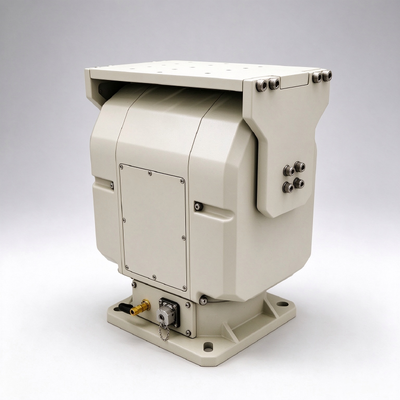

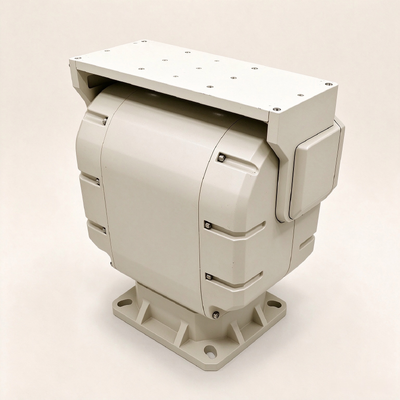

Heavy Duty Pan Tilt Units – 50kg payload

  • Payload Capacity: 50 kg
  • Rotation Range: Pan 360° continuous; Tilt -60° to +20°
  • Movement Speed: Pan 0.01°–8°/s; Tilt 0.01°–4°/s
  • Positioning Accuracy: ±0.1°
  • Transmission: Worm gear drive with power-off self-locking mechanism
  • Feedback: Supports real-time position/query feedback
  • Ingress Protection: IP66
  • Communication Protocol: PELCO-D
  • Interface: RS422

High Stability Heavy Duty Pan Tilt Units Supporting 50kg Payload, 360° Rotation, IP66 Protection for Thermal Camera and Large Optics Mounting

Technical Parameters:

Model

HP–S050W-PT

Rotation Angle

Pan: 0° to 360° ; Tilt: -45° to +45°

Rotation Speed

Pan: 0.01 to 10°/s ; Tilt: 0.01 to 5°/s

Preset Positions

200

Positioning Accuracy

±0.1°

Power-On Self-Test

Support

Angle Feedback

Query-based / Real-time

Auto Cruise

2 patterns, 40 points each

Auto Home

Configurable (1～60 min)

Auto Scan

1 pattern

Salt Spray Resistance

No significant surface change after 48hrs continuous spray (PH 6.5-7.2).

Communication Protocol

PELCO_D

Baud Rate

9600bps(2400/4800/115200bps)

Communication Interface

RS422

Power Supply Voltage

DC24V

Power Consumption

≤90W (Operating)

Temperature

-40℃～+65℃(working),-25℃～+65℃(storage)

Payload

50 kg

Dimensions (LWH)

336 x 190 x 372 mm

Weight

22kg

Mounting Type

Top Mount

Self-Locking

Support

Ingress Protection (IP)

IP66

Installation Environment

Fixed Installation

System Type

Open-Loop System (No Encoder)

Top Cable Pass-through

1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Output Power Cable (15A)

Bottom Cable Pass-through

1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Input Power Cable (System Power)
1x RS422 (Unit Communication)

High Stability Heavy Duty Pan Tilt Units Supporting 50kg Payload, 360° Rotation, IP66 Protection for Thermal Camera and Large Optics Mounting
