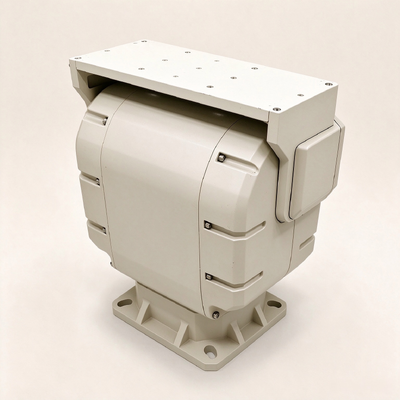

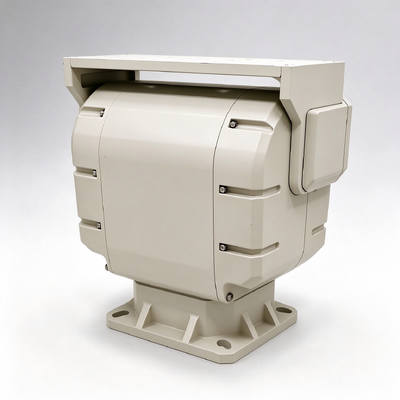

Outdoor All-Weather Pan Tilt Unit with 30kg Payload Capacity, 360° Continuous Rotation, IP66 Dust & Water Resistance for Industrial Surveillance

Outdoor All-Weather Pan Tilt Unit with 30kg Payload Capacity, 360° Continuous Rotation, IP66 Dust & Water Resistance for Industrial Surveillance
Outdoor All-Weather Pan Tilt Unit with 30kg Payload Capacity, 360° Continuous Rotation, IP66 Dust & Water Resistance for Industrial Surveillance
Outdoor All-Weather Pan Tilt Unit with 30kg Payload Capacity, 360° Continuous Rotation, IP66 Dust & Water Resistance for Industrial Surveillance Outdoor All-Weather Pan Tilt Unit with 30kg Payload Capacity, 360° Continuous Rotation, IP66 Dust & Water Resistance for Industrial Surveillance Outdoor All-Weather Pan Tilt Unit with 30kg Payload Capacity, 360° Continuous Rotation, IP66 Dust & Water Resistance for Industrial Surveillance

Large Image :  Outdoor All-Weather Pan Tilt Unit with 30kg Payload Capacity, 360° Continuous Rotation, IP66 Dust & Water Resistance for Industrial Surveillance

Product Details:
Place of Origin: China
Brand Name: hope-wish
Certification: CE, FCC, RoHS, ISO9001
Model Number: HP–S030W-PT
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30-60 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 30sets/month
Contact Now

Outdoor All-Weather Pan Tilt Unit with 30kg Payload Capacity, 360° Continuous Rotation, IP66 Dust & Water Resistance for Industrial Surveillance

Description
Operatingtemperature: -20°C To +60°C Weight: 3.5 Kg
Communicationinterface: RS-232 / RS-485 / Ethernet Operatingvoltage: 24 V DC
Controlmode: Position, Speed, Torque Control Tiltresolution: 0.01 Degrees
Tiltspeed: 0.1 To 50 Degrees Per Second Panresolution: 0.01 Degrees
Tiltrange: ±90 Degrees Powersupply: 24 V DC
Payloadcapacity: 15 Kg Controlinterface: RS-232, RS-485, Ethernet
Productname: Pan Tilt Unit Panrange: ±170 Degrees
Mountingoptions: Tripod, Wall Mount Model: PTU-D300
Accuracy: ±0.05 Degrees Repeatability: ±0.02 Degrees
Material: Aluminum Alloy Panspeed: 0.1 To 60 Degrees/second
Highlight:

IP66 pan tilt unit

,

30kg payload pan tilt

,

360° industrial pan tilt

Heavy Duty Pan Tilt Units – 30kg Industrial Motorized Positioning

  • Payload Capacity: 30 kg
  • Net Weight: 14 kg
  • Rotation Range: Pan 360° continuous; Tilt -60° to +20°
  • Scanning Speed: Pan 0.01°–20°/s; Tilt 0.01°–10°/s
  • Positioning Accuracy: ±0.1° (Repeatability)
  • Ingress Protection: IP66
  • Automated Patrol: 2 routes, 40 presets per route
  • Communication Protocol: PELCO-D
  • Interface: RS422
  • Operating Temperature: -25°C to +65°C
  • Mounting Type: Fixed Installation

Outdoor All-Weather Pan Tilt Unit with 30kg Payload Capacity, 360° Continuous Rotation, IP66 Dust & Water Resistance for Industrial Surveillance

Technical Parameters:

Model

HP–S030W-PT

Rotation Angle

Pan: 0° to 360° ; Tilt: -60° to +20°

Rotation Speed

Pan: 0.01 to 10°/s ; Tilt: 0.01 to 5°/s

Preset Positions

200

Positioning Accuracy

±0.1°

Power-On Self-Test

Support

Angle Feedback

Query-based / Real-time

Auto Cruise

2 patterns, 40 points each

Auto Home

Configurable (1～60 min)

Auto Scan

1 pattern

Salt Spray Resistance

No significant surface change after 48hrs continuous spray (PH 6.5-7.2).

Communication Protocol

PELCO_D

Baud Rate

9600bps(2400/4800/115200bps)

Communication Interface

RS422

Power Supply Voltage

DC 24V

Power Consumption

≤ 150W (Operating)

Temperature

-40℃～+65℃(working),-25℃～+65℃(storage)

Payload

30 kg

Dimensions (LWH)

272 x 270 x 300 mm

Weight

14 kg

Mounting Type

Top Mount

Self-Locking

Support

Ingress Protection (IP)

IP66

Installation Environment

Fixed Installation

System Type

Open-Loop System (No Encoder)

Top Cable Pass-through

1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Output Power Cable (15A)

Bottom Cable Pass-through

1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Input Power Cable (System Power)
1x RS422 (Unit Communication)

Outdoor All-Weather Pan Tilt Unit with 30kg Payload Capacity, 360° Continuous Rotation, IP66 Dust & Water Resistance for Industrial Surveillance
