Lightweight Handheld Monocular Thermal Camera, Long Distance Infrared Thermal Scope for Security Patrol

Lightweight Handheld Monocular Thermal Camera, Long Distance Infrared Thermal Scope for Security Patrol
Lightweight Handheld Monocular Thermal Camera, Long Distance Infrared Thermal Scope for Security Patrol
Lightweight Handheld Monocular Thermal Camera, Long Distance Infrared Thermal Scope for Security Patrol Lightweight Handheld Monocular Thermal Camera, Long Distance Infrared Thermal Scope for Security Patrol Lightweight Handheld Monocular Thermal Camera, Long Distance Infrared Thermal Scope for Security Patrol Lightweight Handheld Monocular Thermal Camera, Long Distance Infrared Thermal Scope for Security Patrol

Large Image :  Lightweight Handheld Monocular Thermal Camera, Long Distance Infrared Thermal Scope for Security Patrol

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, RoHS, ISO9001
Model Number: HP-MT-OQ35
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Hard transit case with foam insert, export-grade carton
Delivery Time: 25-35 working days after order confirmation
Payment Terms: T/T,L/C,Western Union
Supply Ability: 400 Sets per Month
Contact Now

Lightweight Handheld Monocular Thermal Camera, Long Distance Infrared Thermal Scope for Security Patrol

Description
Detector Type: Uncooled VOx, 12 Um Thermal Resolution: 640x512
NETD: <=40 MK Objective Lens: 65mm F1.0
Field Of View: 6.9x5.5 Deg Detection Range: Human 3.5km, Vehicle 6.0km
Recognition Range: Human 1.2km Laser Rangefinder: 10-3000m, +/-1m, Class 1
Positioning: GPS, BeiDou, Compass Display: OLED 1024x768 Binocular
Storage: 64GB, Geotagged JPG/MP4 Battery: Hot-swappable Dual, 6h Each
Weight: 1.35kg Mounting: 1/4 Inch Tripod Socket
Protection: IP67, 2m Drop Operating Temperature: -30 To +55 Deg C
Frame Rate: 9 Hz Housing: Aluminum Alloy
Thermal Detection: Human 1.6km Measurement Accuracy: +/-2 Deg C Or +/-2%
Output: Mini USB Battery Life: 4 Hours Continuous Use
Video Format: MP4 Thermal Sensitivity: <0.05°C
Ir Distance: 1km Color: RED
Laser: 915nm NIR
Highlight:

lightweight handheld thermal camera

,

long distance infrared thermal scope

,

portable infrared camera for security

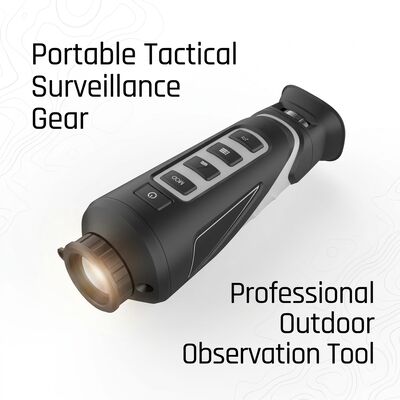

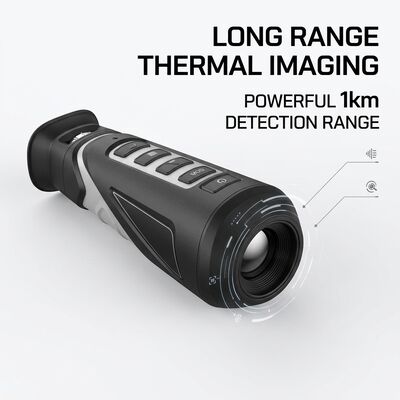

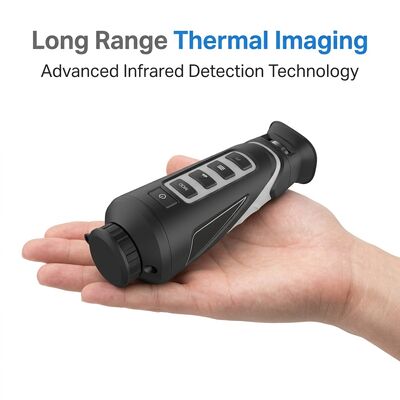

MT-OQ35 handheld thermal monocular camera is equipped with a 640 × 512 infrared detector and a 1024 × 768 OLED display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness.

Key Features

l High sensitivity thermal module with 640 x 512 resolution

l NETD < 35 mK (@25 °C,, F#=1.0)

l Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR

l 1024 x 768 resolution 0.39-inch OLED display

l Built-in rechargeable Li-ion battery

l Up to 5.5 hours continuous operation

Technical Specifications
Parameter Specification

Thermal Module

Image Sensor

VOx Uncooled Focal Plane Arrays

Resolution

640 × 512

Frame Frequency

50 Hz

Pixel Interval

17 μm

Response Waveband

8 μm to 14 μm

NETD

Less than 35 mK (@25°C),F#=1.1

Focal Length

35 mm

IFOV

0.49 mrad

Field of View

17.7° × 14.2° (H × V)

Aperture

F1.0

Magnification

1.4 - 11.2

Image Display

Monitor

0.39 inch, OLED, 1024 ×768

Palettes

Black Hot, White Hot, Red Hot, Fusion

Uniformity Correction

Auto, Manual, External Correction

Digital Zoom

1× , 2× , 4 ×,8×

Smart Function

Hot Track

Yes

Detection Range

1235 m

System

Storage

Built-in memory module (16 GB)

Record Video

Yes

Capture Snapshot

Yes

Wi-Fi

Yes

Standby Mode

Yes

Power Supply

Battery Type

Rechargeable Lithium Battery

Battery Operating Time

5.5 hours continuous running with CVBS and Wi-Fi hot spot function off (@25 °C)
4.5 hours continuous running with CVBS and Wi-Fi hot spot function on (@25 °C)

Battery Capacity Display

Yes

General

Power

5 VDC/2 A, 2 W, Type-C Interface

Work Temperature/Humidity

From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less

Protection Level

IP67

Dimension

201.6 mm × 73.7 mm × 66 mm (7.94" × 2.90" × 2.60")

Weight

500 g (0.55 lb)
Applications

City safety, oilfield safety, railway security, night gathering evidence

Company

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.Lightweight Handheld Monocular Thermal Camera, Long Distance Infrared Thermal Scope for Security PatrolLightweight Handheld Monocular Thermal Camera, Long Distance Infrared Thermal Scope for Security Patrol

Lightweight Handheld Monocular Thermal Camera, Long Distance Infrared Thermal Scope for Security Patrol

Lightweight Handheld Monocular Thermal Camera, Long Distance Infrared Thermal Scope for Security PatrolLightweight Handheld Monocular Thermal Camera, Long Distance Infrared Thermal Scope for Security Patrol
