Thermal Imaging Monocular, WiFi & Video Recording Thermal Imager for Power Inspection, Wildlife Observation

Thermal Imaging Monocular, WiFi & Video Recording Thermal Imager for Power Inspection, Wildlife Observation
Thermal Imaging Monocular, WiFi & Video Recording Thermal Imager for Power Inspection, Wildlife Observation
Thermal Imaging Monocular, WiFi & Video Recording Thermal Imager for Power Inspection, Wildlife Observation Thermal Imaging Monocular, WiFi & Video Recording Thermal Imager for Power Inspection, Wildlife Observation Thermal Imaging Monocular, WiFi & Video Recording Thermal Imager for Power Inspection, Wildlife Observation Thermal Imaging Monocular, WiFi & Video Recording Thermal Imager for Power Inspection, Wildlife Observation Thermal Imaging Monocular, WiFi & Video Recording Thermal Imager for Power Inspection, Wildlife Observation

Large Image :  Thermal Imaging Monocular, WiFi & Video Recording Thermal Imager for Power Inspection, Wildlife Observation

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, RoHS, ISO9001
Model Number: HP-MT-OQ35
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Hard transit case with foam insert, export-grade carton
Delivery Time: 25-35 working days after order confirmation
Payment Terms: T/T,L/C,Western Union
Supply Ability: 400 Sets per Month
Contact Now

Thermal Imaging Monocular, WiFi & Video Recording Thermal Imager for Power Inspection, Wildlife Observation

Description
Detector Type: Uncooled VOx, 12 Um Thermal Resolution: 640x512
NETD: <=40 MK Objective Lens: 65mm F1.0
Field Of View: 6.9x5.5 Deg Detection Range: Human 3.5km, Vehicle 6.0km
Recognition Range: Human 1.2km Laser Rangefinder: 10-3000m, +/-1m, Class 1
Positioning: GPS, BeiDou, Compass Display: OLED 1024x768 Binocular
Storage: 64GB, Geotagged JPG/MP4 Battery: Hot-swappable Dual, 6h Each
Weight: 1.35kg Mounting: 1/4 Inch Tripod Socket
Protection: IP67, 2m Drop Operating Temperature: -30 To +55 Deg C
Frame Rate: 9 Hz Housing: Aluminum Alloy
Thermal Detection: Human 1.6km Measurement Accuracy: +/-2 Deg C Or +/-2%
Output: Mini USB Battery Life: 4 Hours Continuous Use
Video Format: MP4 Thermal Sensitivity: <0.05°C
Ir Distance: 1km Color: RED
Laser: 915nm NIR
Highlight:

WiFi thermal imaging monocular

,

thermal imager for power inspection

,

portable infrared camera for wildlife

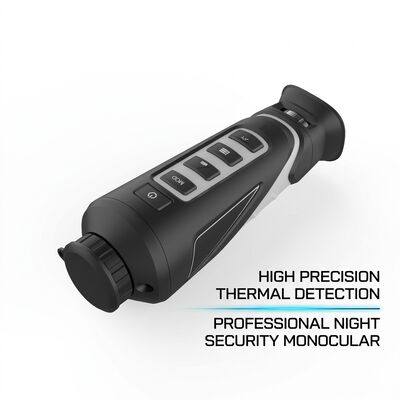

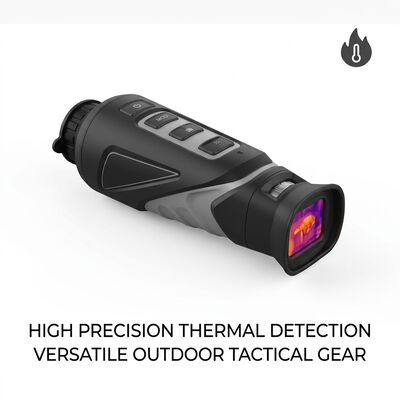

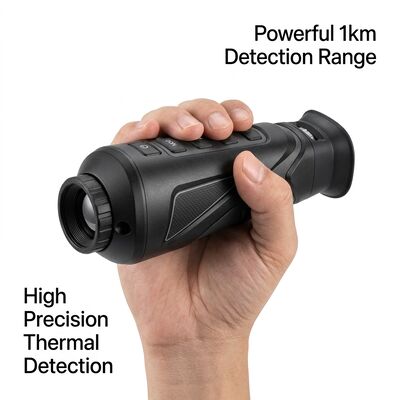

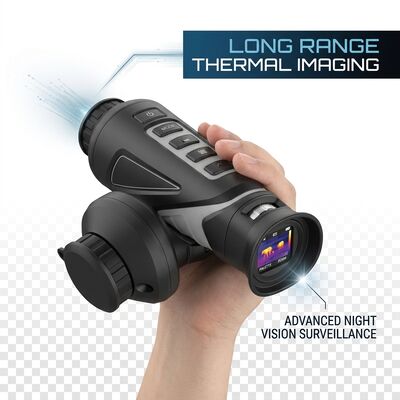

MT-OQ35 handheld thermal monocular camera is equipped with a 640 × 512 infrared detector and a 1024 × 768 OLED display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness.

Key Features

l High sensitivity thermal module with 640 x 512 resolution

l NETD < 35 mK (@25 °C,, F#=1.0)

l Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR

l 1024 x 768 resolution 0.39-inch OLED display

l Built-in rechargeable Li-ion battery

l Up to 5.5 hours continuous operation

Technical Specifications
Parameter Specification

Thermal Module

Image Sensor

VOx Uncooled Focal Plane Arrays

Resolution

640 × 512

Frame Frequency

50 Hz

Pixel Interval

17 μm

Response Waveband

8 μm to 14 μm

NETD

Less than 35 mK (@25°C),F#=1.1

Focal Length

35 mm

IFOV

0.49 mrad

Field of View

17.7° × 14.2° (H × V)

Aperture

F1.0

Magnification

1.4 - 11.2

Image Display

Monitor

0.39 inch, OLED, 1024 ×768

Palettes

Black Hot, White Hot, Red Hot, Fusion

Uniformity Correction

Auto, Manual, External Correction

Digital Zoom

1× , 2× , 4 ×,8×

Smart Function

Hot Track

Yes

Detection Range

1235 m

System

Storage

Built-in memory module (16 GB)

Record Video

Yes

Capture Snapshot

Yes

Wi-Fi

Yes

Standby Mode

Yes

Power Supply

Battery Type

Rechargeable Lithium Battery

Battery Operating Time

5.5 hours continuous running with CVBS and Wi-Fi hot spot function off (@25 °C)
4.5 hours continuous running with CVBS and Wi-Fi hot spot function on (@25 °C)

Battery Capacity Display

Yes

General

Power

5 VDC/2 A, 2 W, Type-C Interface

Work Temperature/Humidity

From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less

Protection Level

IP67

Dimension

201.6 mm × 73.7 mm × 66 mm (7.94" × 2.90" × 2.60")

Weight

500 g (0.55 lb)
Applications

City safety, oilfield safety, railway security, night gathering evidence
