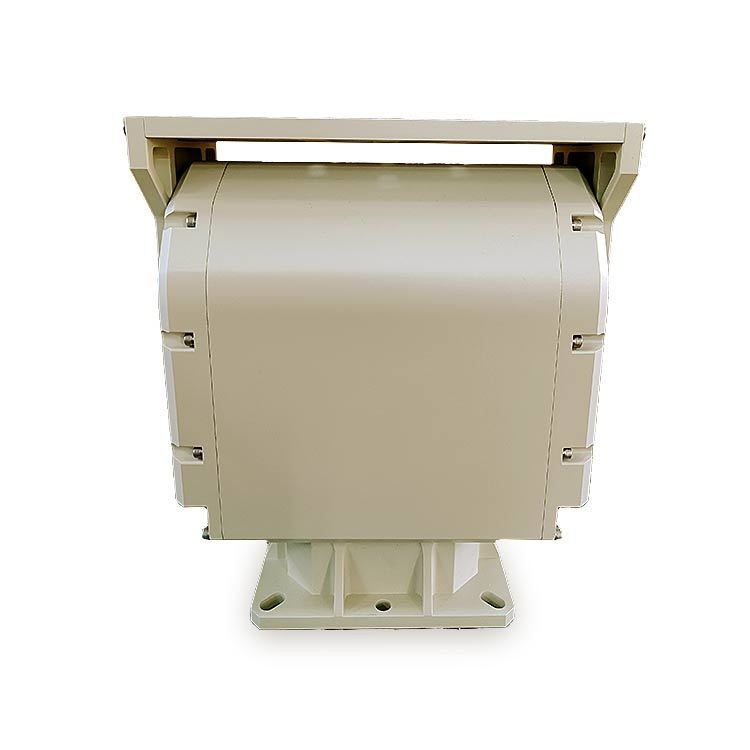

80kg Payload Pan-Tilt Unit with 360° Continuous Rotation & IP67 Ingress Protection

80kg Payload Pan-Tilt Unit with 360° Continuous Rotation & IP67 Ingress Protection
80kg Payload Pan-Tilt Unit with 360° Continuous Rotation & IP67 Ingress Protection 80kg Payload Pan-Tilt Unit with 360° Continuous Rotation & IP67 Ingress Protection 80kg Payload Pan-Tilt Unit with 360° Continuous Rotation & IP67 Ingress Protection

Large Image :  80kg Payload Pan-Tilt Unit with 360° Continuous Rotation & IP67 Ingress Protection

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE,FCC, ISO
Model Number: HP–S080W-PT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1000
Packaging Details: Wooden packaging
Delivery Time: 5~10 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 2000 units per month
Contact Now

80kg Payload Pan-Tilt Unit with 360° Continuous Rotation & IP67 Ingress Protection

Description
Highlight:

80kg Payload Pan Tilt Unit

,

Heavy Duty pan and tilt unit

,

80kg Payload pan and tilt unit

Product Description:

Heavy Duty Pan Tilt Units – 80kg payload

• Maximum Load: 80 kg

• Weight: 32 kg

• Rotation: Horizontal 360° continuous; Tilt -45° to +45°

• Speed: Horizontal 0.01°–10°/s; Tilt 0.01°–5°/s

• Repeat Positioning Accuracy: ±0.1°

• Ingress Protection: IP66

• Auto Patrol: 2 routes, 40 presets per route

• Communication Protocol: PELCO-D

• Interface: RS422

• Operating Temperature: -25°C to +65°C

• Installation: Fixed

80kg Payload Pan-Tilt Unit with 360° Continuous Rotation & IP67 Ingress Protection

Technical Parameters:

Model

HP–S080W-PT

Rotation Angle

Pan: 0° to 360° ; Tilt: -45° to +45°

Rotation Speed

Pan: 0.01 to 10°/s ; Tilt: 0.01 to 5°/s

Preset Positions

200

Positioning Accuracy

±0.1°

Power-On Self-Test

Support

Angle Feedback

Query-based / Real-time

Auto Cruise

2 patterns, 40 points each

Auto Home

Configurable (1～60 min)

Auto Scan

1 pattern

Salt Spray Resistance

No significant surface change after 48hrs continuous spray (PH 6.5-7.2).

Communication Protocol

PELCO_D

Baud Rate

9600bps(2400/4800/115200bps)

Communication Interface

RS422

Power Supply Voltage

DC48V

Power Consumption

≤200W (Operating)

Temperature

-40℃～+65℃(working),-25℃～+65℃(storage)

Payload

80 kg

Dimensions (LWH)

380 x 220 x 400 mm

Weight

32kg

Mounting Type

Top Mount

Self-Locking

Support

Ingress Protection (IP)

IP66

Installation Environment

Fixed Installation

System Type

Open-Loop System (No Encoder)

Top Cable Pass-through

1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Output Power Cable (20A)

Bottom Cable Pass-through

1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Input Power Cable (System Power)
1x RS422 (Unit Communication)

80kg Payload Pan-Tilt Unit with 360° Continuous Rotation & IP67 Ingress Protection
