Product Description:

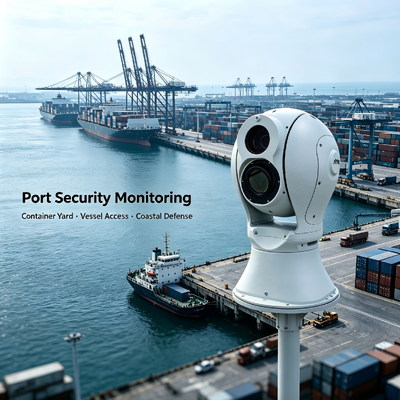

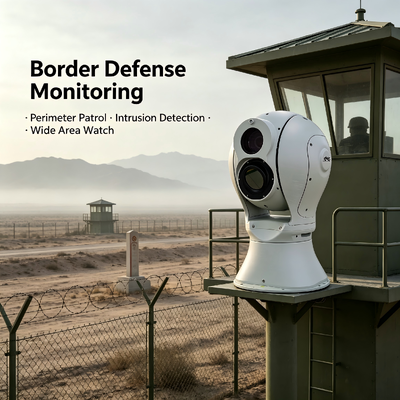

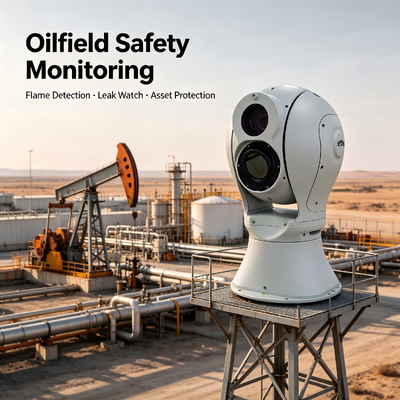

HP-Z50II-CTVC62245-2186 heavy-duty dual-band photoelectric turntable is a long-range photoelectric detection system independently developed and designed by HP-Z50II-CT62245-2186, which can integrate multi-spectrum detection modules such as high-definition visible camera, refrigeration thermal imaging, etc. , laser ranging and other modules can be installed as needed to realize the functions of all-weather, all-time, all-dimensional detection, location, tracking, identification and tracking of targets, the utility model can be widely applied to the three-dimensional security prevention of key areas and key targets such as border and coastal defense, MIL bases, airports, harbors, nuclear, biological and chemical facilities, etc. . The acting distance can reach 19 km.

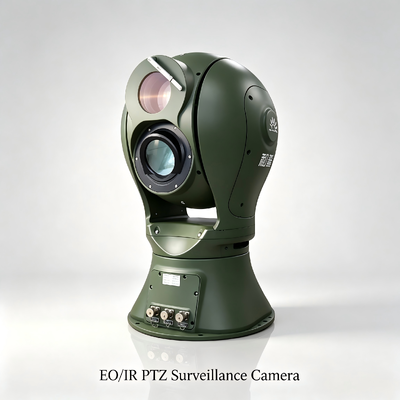

The product adopts spherical design, strong wind resistance, low stirring, stable and clear imaging; it adopts up and down split structure design, can be packed and transported independently, and disperses the whole machine weight, it greatly improves the product transport ability under the complex terrain environment; the use of Modular design, according to customer requirements, flexible collocation of detection channels, flexible selection of optical configuration, in order to meet the requirements of detection, identification and identification under various weather conditions such as full black and fog, rain, snow, etc. , the ball bin can be filled with nitrogen up to IP67 protection level, and can work reliably in the harsh environment in the field for a long time.
Technical Parameters:
|
Model
|
HP-Z50II-CTVC62245-2186
|
|
Detection Distance
|
Vehicle:19km
Human 12km
|
|
Recognition Distance
|
Vehicle:9km
Human 4.5km
|
|
Thermal Camera
|
1. Detector: cooled focal plane array MCT detector
2. Wavelength: 3.7 μm ~ 4.8 μm
3. NETD: 20mK
4. 22 ~ 450mm, 20x continuous optical zoom, F4.0
5. Lens control: Electric Zoom; Manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, accurate and high speed; 3CAM mode and AS + DOE optical structure, high infrared transmittance, the zoom process has no virtual focus and the axis is small
6. Image Enhancement: SDE Digital Image Enhancement Technology, enhance image details, support 255 level thermal image enhancement adjustment
7. Pseudo-color polarity: 16 pseudo-color images, hot black/hot white polarity
8. Image parameters: AGC automatic gain control, brightness, contrast adjustment
9. Electron doubling: 1.0 ~ 8.0 × continuous doubling (step length 0.1) , supporting optical electron relay doubling, supporting global hawk-eye diagram
10. Rangefinder: supports rangefinder
11. Bad Correction: support for bad correction
12. Image Correction: support manual correction, background correction, automatic correction time interval, Gamma correction parameters adjustable
13. Bright Light Protection: supports protection against Sun Damage
14. Detector Array: 640 × 512
Field of view: 24.6 ° × 19.8 ° - 1.2 ° × 1 °
|
|
Visible Camera
|
1. Sensor type: backlit ultra-low illumination star-level CMOS
2. Minimum illuminance: Color: 0.0005 lux; black and white: 0.0001 lux; 0 Lux (IRON)
3. Lens: 11 ~ 860 mm, Mega HD electric zoom; Manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, accurate and high speed
4. Image Processing: support for white balance, electronic shutter, frame accumulation, backlight compensation, strong light suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic, heat wave drift suppression
5. Day-night type pass light: 0.4-0.75 um visible broad spectral window and 0.8-0.95 um near infrared spectral window
Support electronic transmission fog, optical transmission fog
|
|
Audio and video
|
1. Resolution: 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 288; 352 × 240
2. Visible resolution: 2592 × 1520; 2560 × 1440; 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 240
3. Video Coding: H. 265/h. 264/MJPEG, multi-stream support
4. Video rates: 32 KBPS to 16 Mbps
5. Audio encoding: G. 711A/g. 711U/G726
6. Image rollover: right/left/up/down/diagonal
7. OSD settings: Support Channel name, time, PAN, field of view angle, focal length of the OSD display settings, support preset position name settings
|
|
Intelligent function
|
1. Fire Detection Alarm: Threshold Level 255, target size, target number 1-16 can be set, automatic selection of the most prominent target display, hot tracking
2. Intelligence analysis: support intrusion detection, cross-border detection, entry/exit area detection, motion detection, loitering detection, people gathering, fast moving, target tracking, items left behind, items taken; Human/vehicle target detection, face detection; and support 16 regional settings; support intrusion detection, human, vehicle filtering function; support target temperature filtering function
3. Automatic tracking: single-scene tracking support multi-scene tracking support panoramic tracking support alarm linkage tracking
4. Intelligent Information Fusion: support 512 AR intelligent information fusion, support point of fire, intelligent analysis video identification information fusion, support azimuth angle, field of view, focal length, multiple information fusion
5. Image Fusion: support 18 kinds of dual-light fusion mode, support picture-in-picture function
6. Alarm management: Support Alarm capture upload
|
|
Enhanced function
|
1. Ranging function: support passive ranging; support optional laser ranging
2. Strong light protection: support, protection from Sun Burn function
3. Temperature Correction: non-thermal design, imaging sharpness is not affected by temperature
4. Scene mode: support multi-configuration scene, adapt to different environment applications
5. Auto-focus tuning: support remote auto-focus accuracy parameter adjustment, adapt to different scenarios
6. Day-night cruise: day-night cruise groups with different preset, day cruise 1-40 preset, night cruise 41-80 preset, according to the state of light automatically switch day and night, adapt to different space-time scenarios
7. Lens servo: support lens pre-position, focal length back, focal length positioning function
8. Power-off memory: support to restore the pre-power-off position, pre-position state, cruise state, line scan state
9. Off and on: support
10. Camera diagnosis function: support network alarm, support IP conflict alarm, support illegal access alarm (illegal access number, lock time can be set) , support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card) , video block alarm, anti-sun damage (support threshold, block time can be set)
11. Life Cycle Management: Health Index recording function, support working time, shutter times, working temperature, limit temperature, etc.
12. Remote Maintenance: with fault inquiry, self-examination, remote restart function; online upgrade, remote upgrade
13. Keyframe settings: support keyframe interval 100-level adjustable
14. Configuration File: Support Configuration File Import and export function
15. Web Access: support WEB full function configuration, remote online upgrade
|
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.Support and Services:
For technical support and services related to the Long Range Infrared Camera, please refer to the comprehensive user manual included with your product. Our support team is dedicated to assisting you with installation, troubleshooting, and maintenance to ensure optimal performance of your camera.
We offer a range of services including firmware updates, calibration, and repair services to keep your Long Range Infrared Camera operating at its best. Detailed guides and FAQs are also available to help you resolve common issues quickly and efficiently.
Ensure that your camera is regularly maintained and properly handled to extend its lifespan and maintain accuracy. For advanced technical assistance, please have your product serial number and purchase details ready.
Note that warranty terms and conditions apply to repair and replacement services. Always use authorized service centers to avoid voiding your warranty.
We are committed to providing you with the highest level of support to maximize your experience with the Long Range Infrared Camera.
FAQ:
Q1: What is the detection range of the Hope-Wish HP-Z50 Long Range Infrared Camera?
A1: The Hope-Wish HP-Z50 Long Range Infrared Camera can detect heat signatures up to 1500 meters in complete darkness, making it ideal for long-range surveillance and monitoring.
Q2: Does the HP-Z50 support video recording and image capture?
A2: Yes, the Hope-Wish HP-Z50 allows both video recording and still image capture in infrared mode, enabling users to document and review footage as needed.
Q3: What is the resolution of the infrared sensor on the HP-Z50?
A3: The HP-Z50 is equipped with a high-resolution infrared sensor of 640x480 pixels, providing clear and detailed thermal images even at long distances.
Q4: Is the Hope-Wish HP-Z50 suitable for outdoor use in various weather conditions?
A4: Yes, the HP-Z50 is designed with a rugged, weather-resistant housing, allowing it to perform reliably in harsh outdoor environments including rain, fog, and dust.
Q5: What power options are available for the HP-Z50 Long Range Infrared Camera?
A5: The HP-Z50 can be powered using rechargeable batteries or an external power supply, offering flexibility for extended field operations.
