PTZ Thermal Imaging Camera with 10x Optical Zoom IP66 Weatherproof and Intelligent Tracking for Perimeter Security

PTZ Thermal Imaging Camera with 10x Optical Zoom IP66 Weatherproof and Intelligent Tracking for Perimeter Security
PTZ Thermal Imaging Camera with 10x Optical Zoom IP66 Weatherproof and Intelligent Tracking for Perimeter Security
PTZ Thermal Imaging Camera with 10x Optical Zoom IP66 Weatherproof and Intelligent Tracking for Perimeter Security PTZ Thermal Imaging Camera with 10x Optical Zoom IP66 Weatherproof and Intelligent Tracking for Perimeter Security PTZ Thermal Imaging Camera with 10x Optical Zoom IP66 Weatherproof and Intelligent Tracking for Perimeter Security PTZ Thermal Imaging Camera with 10x Optical Zoom IP66 Weatherproof and Intelligent Tracking for Perimeter Security

Large Image :  PTZ Thermal Imaging Camera with 10x Optical Zoom IP66 Weatherproof and Intelligent Tracking for Perimeter Security

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, ROHS, ISO9001
Model Number: HP-Z50II-TVC6516-2075
Document: HP-Z50II-TVC6516-2075.doc
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export-grade shockproof flight case with custom foam insert
Delivery Time: 30-60 days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 30 units per month
Contact Now

PTZ Thermal Imaging Camera with 10x Optical Zoom IP66 Weatherproof and Intelligent Tracking for Perimeter Security

Description
Sensor: Vanadium Oxide Unccoled Sensor Network Interface: RJ45 10/100 Mbps Ethernet
Feature: IP66 Zoom: 10x Optical Zoom
Ingress Protection Rating: IP66 Recognition: Vehicles:1800m Human: 800m
Warranty: One Year Ingress Protection: IP66 Weatherproof
Humidity: 95% RH Control Interface: RS485, Ethernet
Tilt Range: -90° To +90° Power Supply: 12V DC / 24V AC
Operating Temperature: -40°C To +65°C Protection Level: IP66 Weatherproof
Lens: 38-190mm
Highlight:

Starlight Low Light PTZ Camera

,

0.0005lux Border Surveillance

,

Thermal Fusion Night Vision PTZ

Multi Functional PTZ Thermal Imaging Camera with Intelligent Tracking and Zoom Features

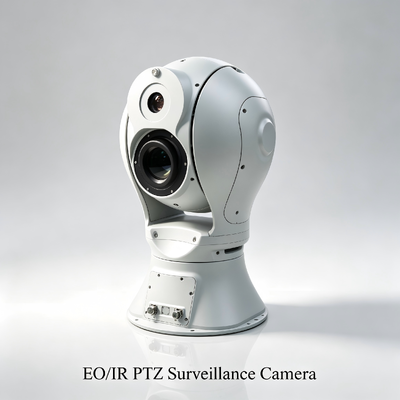

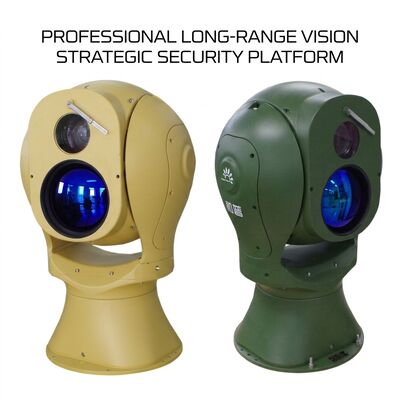

The HP-Z50II-TVC6516-2075 heavy-duty dual-band photoelectric turntable is a long-range photoelectric detection system independently developed by Hope Wish Company. This advanced system integrates multi-spectrum detection modules including high-definition visible cameras and refrigeration thermal imaging, with optional laser ranging modules to provide comprehensive all-weather, all-time, all-dimensional detection, location, tracking, identification, and target tracking capabilities.
Designed for critical security applications, this system is ideal for border and coastal defense, MIL bases, airports, harbors, and nuclear/biological/chemical facilities. With a working distance of up to 13 km and fire detection range of 10 km for 3×3 meter targets, it delivers exceptional performance in demanding environments.
The spherical design ensures strong wind resistance and stable, clear imaging. The innovative split structure design allows for independent packing and transportation, distributing the overall weight for improved transport capability in complex terrain environments. Modular design enables flexible configuration of detection channels and optical components to meet various weather conditions including complete darkness, fog, rain, and snow. The nitrogen-filled housing provides IP67 protection for reliable long-term operation in harsh field environments.
Key Features
  • Strong Load Capacity: Supports large magnification visible light cameras and large aperture refrigeration thermal imagers for ultra-long-range target observation
  • Wide Detection Spectrum: Integrates high-definition visible light and medium-wave thermal imaging with dual-band complementary advantages, combining active and passive detection with multi-source data fusion processing
  • Fast Turning Speed: Rotation speed up to 80°/s with acceleration up to 100°/s² for quick start-stop and smooth operation to capture moving targets
  • Comprehensive Coverage: Azimuth rotation range 0°-360°, pitch rotation range -90° to +90° for non-dead angle detection and full-dimensional coverage
  • High Control Precision: High-precision closed-loop servo control system with positioning accuracy up to 0.02° and accurate automatic focusing
Technical Specifications
Model HP-Z50II-TVC6516-2075
Detection Distance Vehicle: 13km | Human: 4.8km | Fire detection (2×2m): 10,000m (3×3 pixels)
Recognition Distance Vehicle: 3.4km | Human: 1.3km
Thermal Camera Detector: Sixth generation uncooled focal plane array VOX detector
Wavelength: 8-14 μm
NETD: 40 Mk (@25°C F1.0)
Lens: 31-155 mm
Lens Control: Electric zoom; Manual/auto focus with 3A adaptive active focus algorithm
Image Enhancement: SDE Digital Image Enhancement Technology with 255 level thermal image enhancement adjustment
Detector Array: 640×512
Field of View: 20°×15° to 4°×3°
Visible Camera Sensor Type: Backlit ultra-low illumination star-level CMOS
Minimum Illuminance: Color: 0.0005 lux; Black & white: 0.0001 lux; 0 lux (IR on)
Lens: 12.5-775 mm Mega HD electric zoom
Intelligent Analysis: Supports intrusion detection, cross-border detection, entry/exit zone detection, mobile detection, hover detection
Audio and Video Resolution: Multiple formats from 1920×1080 to 352×240
Video Coding: H.265/H.264/MJPEG with multi-stream support
Video Rates: 32 Kbps to 16 Mbps
Audio Encoding: G.711A/G.711U/G726
Applications
  • Seaport and airport monitoring
  • Water system monitoring
  • Storage monitoring
  • MIL base security monitoring
  • Oilfield & oil depot security
  • Fire source prevention & monitoring
  • Ecological and environmental monitoring
  • Border and coastal defense
  • Urban security and anti-UAV applications
  • Highways and railways monitoring
About Hope Wish Photoelectronics Technology
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high-tech Zone and maintains a core R&D team specializing in laser imaging, infrared thermal imaging detection, and tracking technology research. The company focuses on night vision and multispectral imaging technology, utilizing advanced artificial intelligence-based image analysis and processing to provide comprehensive optoelectronic system solutions for long-distance, high-definition, intelligent, multi-purpose, all-weather applications in complex environments.
Hope-Wish solutions cover border/coastal defense, anti-UAV operations, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine applications, and other industries. The company's products are recognized worldwide for their excellent performance, reliable quality, and comprehensive after-sales service.

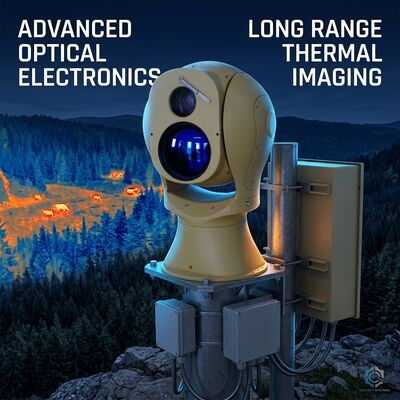

HP-Z50II-TVC6516-2075 thermal imaging camera system overview Thermal imaging camera installation and deployment Close-up view of camera components and construction Camera system in operational environment Technical details and interface features
