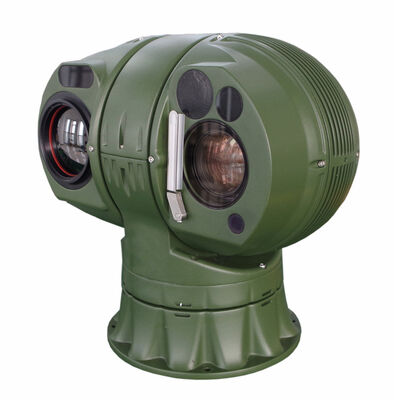

Uncooled Sensor thermal ptz camera offering 12μm pixel size suitable for traffic monitoring and urban security management applications

Product Description:

The Thermal Surveillance System is an advanced long range security camera designed to deliver exceptional performance in various challenging environments. Built to withstand harsh conditions, this robust thermal imaging camera comes with an impressive IP67 ingress protection rating, ensuring it is dust-tight and completely protected against water immersion up to 1 meter. This makes it an ideal choice for outdoor surveillance applications where reliability and durability are paramount.

Operating efficiently within a wide temperature range from -40°C to +60°C, the Thermal Surveillance System is engineered to function flawlessly in extreme weather conditions. Whether deployed in freezing cold environments or scorching heat, this thermal imaging camera maintains consistent performance, allowing for uninterrupted security monitoring around the clock.

One of the standout features of this system is its exceptional resolution. The standard model is equipped with a 640x512 thermal sensor, offering clear and detailed thermal images for accurate detection and identification of targets at long distances. For users requiring higher precision, an optional 1280x1024 resolution sensor is available, providing enhanced image clarity and finer thermal details that are critical for advanced surveillance tasks.

The camera’s lens options range from 25mm to 100mm, enabling versatile field of view configurations tailored to specific monitoring needs. Complementing the lens, the Thermal Surveillance System offers a powerful 4X optical zoom, which allows operators to focus on distant objects without losing image quality. Additionally, an 8X digital zoom feature further enhances the capability to scrutinize finer details, making this system highly effective for identifying potential threats and suspicious activities from afar.

In today’s security landscape, having a reliable thermal camera is crucial for comprehensive surveillance. Compared to other options on the market, this system’s thermal imaging camera price offers excellent value, combining cutting-edge technology with rugged build quality and advanced features. It is particularly suitable for critical infrastructure protection, border security, perimeter surveillance, and other applications where early detection and precise monitoring are essential.

Furthermore, this thermal surveillance system complements its core thermal capabilities with additional imaging options. Although primarily focused on thermal detection, it integrates seamlessly with surveillance 20x zoom 1080p 2Mp optical systems, providing a dual-sensor approach that enhances situational awareness. This combination ensures that operators can benefit from both thermal imaging for night and low-visibility conditions, and high-definition optical imagery for daytime identification and verification.

In summary, the Thermal Surveillance System is a cutting-edge solution for long-range security needs, offering robust IP67 protection, wide operating temperature tolerance, high-resolution thermal imaging with optional upgrades, and versatile zoom capabilities. Its competitive thermal imaging camera price and integration potential with 20x zoom 1080p 2Mp surveillance cameras make it a comprehensive choice for advanced security operations. Whether deployed in rugged outdoor environments or sensitive security zones, this system delivers reliable, high-quality thermal surveillance that enhances safety and situational awareness.

Features:

• Product Name: Thermal Surveillance System
• Pixel Size: 12μm
• Working Temperature Range: -40℃ to +60℃
• Resolution: 640x512 (1080p 2Mp option available with 1280x1024 resolution)
• Detection Range:
  • Thermal Infrared Camera:
    • Vessel: up to 10km
    • Vehicle: up to 3km
    • Human: up to 1.2km
  • Daylight:
    • Vessel: up to 20km
    • Vehicle: up to 5km
    • Human: up to 2.5km
• Zoom Capabilities: 4X Optical Zoom and 8X Digital Zoom (surveillance 20x zoom combined)
• Type: Infrared Thermal Camera for enhanced night and low-visibility surveillance
• High Performance: Thermal infrared camera technology ensures precise detection in various environments

Technical Parameters:

Applications:

The Hope-Wish HP-Z201 Thermal Surveillance System is a versatile and advanced thermal infrared camera designed to meet the demanding needs of various surveillance applications. Featuring a compact dimension of 280mm by 400mm, this thermal PTZ camera integrates a powerful uncooled sensor with a high resolution of 640*512, with an optional upgrade to 1280*1024 resolution, delivering crisp and detailed thermal images even in complete darkness or adverse weather conditions. The system boasts a NETD of 40mK, ensuring exceptional sensitivity to temperature differences, while its 25~100mm lens combined with 20x zoom capabilities allows precise monitoring from long distances.

Ideal for security and perimeter surveillance, the Hope-Wish HP-Z201 is perfectly suited for installations in critical infrastructure facilities, industrial sites, and border control points where continuous and reliable monitoring is essential. Its thermal infrared camera technology enables detection of intruders, unauthorized vehicles, or unusual heat signatures in low-visibility environments such as fog, smoke, or total darkness, enhancing situational awareness and response times. The 1080p 2Mp imaging capability further supports identification and tracking of targets with high clarity and detail.

In addition to security, this thermal PTZ camera is well-suited for firefighting and search-and-rescue operations, where early detection of hotspots or persons in distress can save lives. Its robust zoom and pan-tilt-zoom functionalities allow operators to swiftly scan wide areas or zoom in on specific points of interest without losing image quality. Moreover, the system's reliable performance in harsh environmental conditions makes it ideal for maritime surveillance, monitoring offshore platforms, or ensuring safety in transportation hubs such as airports and seaports.

For industrial applications, the Hope-Wish HP-Z201 thermal surveillance system can be deployed for equipment monitoring, identifying overheating components, or detecting gas leaks, thereby preventing potential accidents and downtime. The compact size and advanced imaging features also make it suitable for integration into smart city infrastructure, enabling enhanced urban security and traffic management.

Overall, the Hope-Wish HP-Z201 thermal infrared camera is a high-performance surveillance solution combining cutting-edge thermal imaging technology with flexible zoom and resolution options. Its ability to operate reliably in diverse scenarios—from security and emergency response to industrial monitoring—makes it an indispensable tool for professionals requiring precise and continuous thermal surveillance.

FAQ:

Q1: What is the brand and model number of this Thermal Surveillance System?

A1: The Thermal Surveillance System is manufactured by Hope-Wish, and the model number is HP-Z201.

Q2: What are the main features of the Hope-Wish HP-Z201 Thermal Surveillance System?

A2: The HP-Z201 features high-resolution thermal imaging, real-time temperature monitoring, night vision capability, and is designed for both indoor and outdoor surveillance applications.

Q3: Can the HP-Z201 Thermal Surveillance System operate in complete darkness?

A3: Yes, the HP-Z201 uses advanced thermal imaging technology, allowing it to detect heat signatures and operate effectively in total darkness.

Q4: What is the effective range of the Hope-Wish HP-Z201 for thermal detection?

A4: The HP-Z201 can detect thermal signatures from a distance of up to 500 meters, depending on environmental conditions.

Q5: Is the HP-Z201 compatible with other security systems or software?

A5: Yes, the HP-Z201 supports integration with various security management software platforms via standard communication protocols, making it easy to incorporate into existing surveillance setups.
