Product Description:

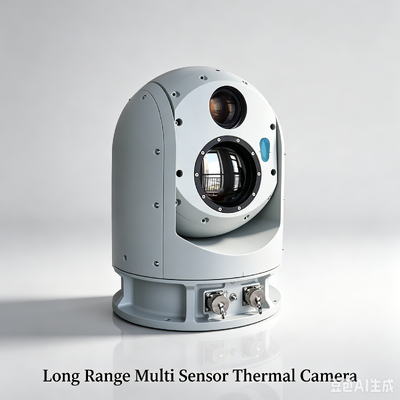

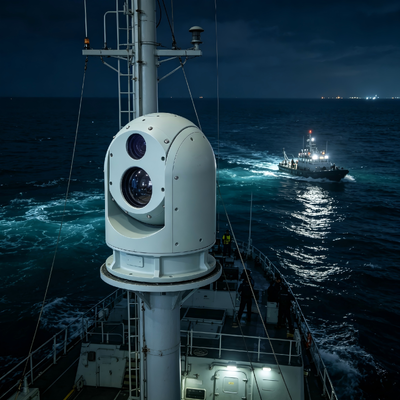

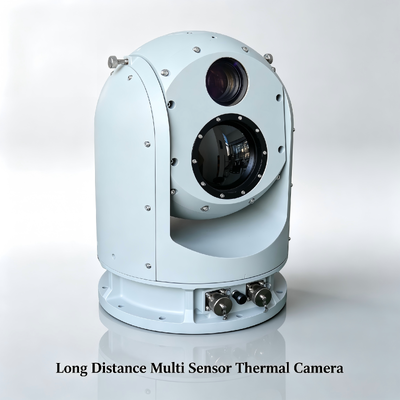

Z201 Series Long Range Multi Sensor Thermal Camera integrates HD daylight camera, uncooled thermal camera, gyro stabilization, intelligent analysis, and precise electronic control. It is designed for ship /shipboard video acquisition and sea surface warning, key target warning, radar linkage and other applications designed long distance detection system, which can adapt to all-weather, all-time, full-dimensional discovery, positioning, tracking, identification and tracking of the target function, the smallest distance to small ships and islands can be up to 10 km.
In summary, this infrared thermal camera represents a state-of-the-art thermal IP camera solution that combines high resolution, sensitive pixel technology, versatile zoom, and compact design. Its ability to deliver precise thermal imaging with remote accessibility makes it a powerful asset for security professionals, industrial operators, and emergency responders alike. By choosing the Thermal Surveillance System, users gain a reliable and efficient tool that enhances safety, security, and operational effectiveness across a wide range of applications.
Features:
1.Multi spectrum: Integrated with HD daylight camera system, uncooled sensor thermal camera system,, and so on. Combined with active and passive detection, 24 hours surveillance in all-weather environments.
2.High/Fast turning speed: turning speed 90°/s, acceleration 120°/s², helpful for capture and tracking fast moving targets.
3.Wide coverage: the azimuth rotation range is 0~360°, and the pitch rotation range is -90° ~+90°, all angle detection, all-round coverage.
4.High control accuracy: using precision angle encoder and high precision servo PT control system, the positioning accuracy can reach 0.02°, high performance imaging processing technology combined with high precision focus control to achieve precise auto focus.
5. Excellent tracking performance: The automatic tracking module is designed with a variety of target acquisition algorithms and tracking algorithms, supplemented by high-precision servo control, to ensure stable tracking of the target during rapid movement and process.
6.Gyro stabilization: The two-axis gyro stabilization structure design effectively isolates the disturbance of the optical system caused by carriers such as vehicles and ships, and always maintains a high degree of image and video stability.
7. Intelligent analysis: Support target intrusion detection, motion detection and other abnormal behavior detection, support target classification and identification, support hot spot alarm, radar linkage, 3D zoom positioning and other functions.
8. Self-diagnosis and self-recovery: support life-cycle management, fault self-checking, front-end storage, resuming transmission after disconnection, memory after power failure, remote restart/upgrade.
Technical Parameters:
|
Model
|
HP-Z201-LFZ
|
|
Detection
|
Thermal: Vessel: 10km; Vehicle: 3km; Human:1.2km
|
|
Daylight: Vessel: 20km; vehicle:5km; Human: 2.5km
|
|
Thermal Camera System
|
|
Detector
|
Uncooled sensor
|
|
Pixel size
|
12μm
|
|
Resolution
|
640*512 resolution (1280*1024 resolution for option)
|
|
NETD
|
40MK
|
|
Lens
|
25~100mm
|
|
Zoom
|
4X optical zoom, 8X digital zoom
|
|
Lens control
|
Electric zoom; manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes
|
|
Image process
|
SDE digital image enhancement technology, enhance the details of the image, support 255 enhancement adjustment
|
|
Pseudo-color
|
16 kinds of pseudo-color images, hot black / hot white two polarities
|
|
Image parameters
|
AGC automatic gain control, brightness, contrast
|
|
Digital zoom
|
1x~8X continuous digital zoom, support global synchronous display
|
|
Range Scale
|
Support range scale to measurement the distance
|
|
Strong light protection
|
Support anti-sun damage
|
|
Daylight Camera System
|
|
CMOS
|
Ultra-low illumination starlight CMOS
|
|
Low Illumination
|
Color: 0.005lux, black/white: 0.001 lux
|
|
Lens
|
6mm~210mm, 35X zoom
|
|
Image process
|
Support white balance, electronic shutter, backlight compensation, strong light suppression, 2D/3D digital noise reduction, electronic image stabilization, WDR, heat wave drift suppression
|
|
Defog
|
Support
|
|
Audio/Video
|
|
Thermal Resolution
|
Support: 1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240
|
|
Daylight Resolution
|
Support:2592×1520；2560×1440；1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240
|
|
Video encoding
|
H.265/H.264/MJPEG
|
|
Video bit rate
|
32Kbps～16Mbps
|
|
OSD setting
|
Support OSD display settings for channel name, time, gimbal orientation, field of view, focal length, and preset bit name settings
|
|
Intelligent Functions
|
|
Intelligent analysis
|
support intrusion detection, boundary crossing detection, entering/leaving area detection, motion detection, wandering detection, people gathering, fast moving, target tracking, items left behind, items taken; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering filtering function; support target temperature filtering filtering function
|
|
Auto Track
|
Support
|
|
Enhanced Features
|
|
Distance measurement
|
Support passive distance measurement; support optional laser distance measurement.
|
|
Anti-Sunburn
|
Support
|
|
Temperature correction
|
A thermalization design, image clarity is not affected by temperature
|
|
Disconnection renewal
|
Support
|
|
Power failure memory
|
Support can restore the position before power failure, preset point state, cruise state, line sweep state
|
|
Web access
|
support WEB full function configuration, remote online upgrade
|
|
Pan Tilt
|
|
Structure
|
Dome model, wind resistance, strong anti-shake, can resist 12-level strong wind
|
|
Gyro stabilization
|
two-axis gyro stabilization
|
|
Rotation
|
N*360°in horizontal, -90~+90 in pitch
|
|
Rotation Speed
|
0.01°～90°/s in horizontal, 0.01°～90°/s in pitch
|
|
Acceleration
|
120°/s2 (horizontal and pitch)
|
|
Positioning accuracy
|
≤ 0.02°
|
|
Preset
|
3000
|
|
Gyro stabilization
|
Support, two axis gyro stabilization
|
|
Interface
|
|
Network interface
|
RJ45
|
|
Network Protocol
|
Support HTTP,HTTPS,FTP,SMTP,DNS,NTP,RTSP,RTCP,RTP,TCP,UDP,ICMP,DHCP；ONVIF,GB28181 and so on
|
|
Physical interface
|
alloy waterproof aviation plug
|
|
Others
|
|
Power supply
|
DC24V with power adapter
|
|
Power consumption
|
Normal: ≤ 150W; Peak: ≤ 400W
|
|
Working temperature
|
-40 ~+ 60℃
|
|
Storage temperature
|
-45 ~+ 70℃
|
|
Humidity
|
<90%
|
|
Ingress protection
|
IP67
|
|
Weight
|
≤ 20kg
|
|
Dimension
|
280mm*400mm
|
|
Display and Monitor
|
|
Display
|
1.Screen: 10 inch, 16:9
|
|
|
2.Resolution: 1920*1080
|
|
Function
|
FOV/Focus/Video/PIP/Self-checking/Target check/Auto track/Gyro stabilization/Manual track/
|
|
Interface
|
1. Communication: 2ch RS422;2 channel USB
2. Video: RJ45
|
|
Dimensions/Weight
|
Dimensions: 300*260*65mm Weight: 5kg
|
Applications:
l Seaport and airport monitoring;
l Water system monitoring;
l Storage monitoring;
l MIL base security monitoring;
l Oilfield & oil depot security;
l Fire source prevention & monitoring;
l Ecological and environmental monitoring;

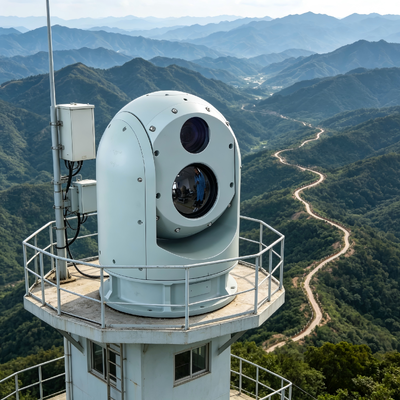

l Border and coastal defense;
l Urban security and anti-UAV applications;
l Highways and railways monitoring.
