Product Description:
l Unique AS + DOE advanced optical continuous zoom design and 3CAM high precision optical machine design, stable and
smooth zooming, which to conduct to large-scale searching and long-range recognition
l Excellent non-uniform image correction technology with good image uniformity and dynamic range
l SDE image detail enhancement technology, image smooth and noiseless, a variety of pseudo-color and hot black hot white
polarity image mode switching, adaptability, easy to find low-contrast hidden targetse.
The integration of an advanced infrared camera module within the PTZ Thermal Imaging Camera enables superior thermal imaging capabilities. This module captures precise thermal data, allowing for clear visualization of heat patterns that are invisible to traditional cameras. This capability is particularly useful for detecting intruders, monitoring equipment temperature, and identifying potential hazards before they escalate.

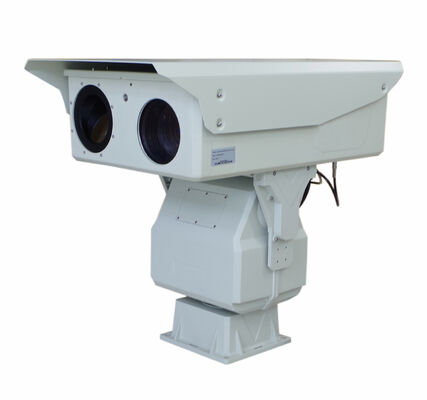

In summary, the PTZ Thermal Imaging Camera is a cutting-edge thermal security camera that combines powerful optics, extensive pan capabilities, long-range recognition, and robust environmental resilience. Its high-quality infrared camera module and thermal imaging technology make it an invaluable asset for enhancing security, safety, and operational efficiency in a wide range of applications. Whether for perimeter defense, traffic monitoring, or industrial inspection, this thermal infrared camera delivers reliable, high-performance surveillance under the most demanding conditions.
Features:
- Integrates with infrared thermal image, HD visible imaging, video coding, pan/tilt cover and control electronic system
- Visible imaging adopts with full HD color black and white mode low illumination CMOS sensor and 30 times compact continuous zoom lens
- The latest generation of VOx detectors based on MEMS technology, detection sensitivity (NETD) up to 50mk, higher sensitivity than conventional products, to obtain more delicate picture quality, less affected by fog, rain and snow switching of laser switch and camera into day-night mode.
Technical Parameters:
|
Model
|
HP-TTVC6516-2150
|
|
Detection
|
Vehicle 13,000 m Human 4,800 m
For fire 6,000 m (2m X 2m )
|
|
Recognition
|
Vehicle 3,400 m Human 1,300 m
|
|
Sensor
|
5th generation UFPA VOx sensor
|
|
Resolution
|
640*512
|
|
Spectral response
|
7.5～14μm
|
|
NETD
|
50mK(@25℃ F1.0)
|
|
Focal length
|
31～155 mm
|
|
FOV
|
20°×15°～4°×3°
|
|
Lens control
|
1. Zoom: Electric zoom
2. Focus: manual / auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, precise high speed
3. Optical machine: 3CAM mode and AS+DOE optical machine structure, high infrared transmittance, no virtual focus and small axis in the zoom process
|
|
Image Processing
|
1. Image enhancement: SDE digital image enhancement technology to enhance image details
2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities
3. Image parameters: AGC automatic gain control, brightness, contrast
4. Electronic zoom: 2×, 4×, support global synchronous display
5. NUC correction: automatic / manual correction, background correction
|
|
Visible Camera
|
1. 1/2.8'' target surface star-level CMOS, integrated ICR dual filter day and night switching
2. Resolution: 2 Mega pixels, 1920×1080
3. Illumination: color: 0.05 Lux; black and white: 0.01Lux
4. Encoding: H.265/H.264 video format, support multi-stream
5. Video bit rate: 32Kbps ~ 16Mbps, 60Hz 30 frames / sec
6. Support SD card local storage, support motion detection, occlusion alarm, cross-border detection, regional intrusion detection
Support white balance, electronic shutter, strong light suppression, 3D digital noise reduction, wide dynamic, anti-infrared over exposure
|
|
Visible Lens
|
1. Focal length: 8 ~ 500mm, 2 mega pixel power zoom
2. Focus: manual / auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, precise high speed
3. Aperture: Automatic
4. Day and night type light: 0.4-0.75um visible light wide spectral window and 0.8-0.95um near infrared laser narrow spectrum window day and night independent double pass light window to improve imaging light and stray light signal to noise ratio
Preset position: precision potentiometer, zoom focus feedback
|
|
Laser Source
(optional)
|
1. Power: 8W
2. Wavelength: 810nm tary grade infrared laser
3. Illumination angle: 1 ° ~ 20 °, DSS digital step lighting angle control technology
4. Homogenization: GHT-II high-definition lens group ultra-homogenization patented technology, brightness balance of all focal lengths is >92%
5. Laser safety: ZQB safety laser beam processing patent technology, in line with international IEC60825 safety standards
|
|
Hot target intelligent alarm
|
1. 255 adjustable alarm threshold values
2. Adjustable monitoring area, auto detection of target size
3. 1-16 alarm targets, auto selection of the most obvious one
4. Two types of alarm: screen display and audible alarm
5. Less than 0.01s alarm response ensures no omission
6. All parameters can be modified via OSD menu, universally adaptable
7. Optional IP network coding transmission, and provide free platform and SDK
8. Dedicated platform: (Optional with special fire prevention warning platform, with automatic scanning, alarm, GIS positioning, fire dynamic evolution, fire fighting strategy, etc., forming a professional system)
|
|
Housing
|
1.Material: integral aluminum alloy housing, stainless steel, anti strong wind ;
2.Structure: Integral double window
3.Window glass: 4mm optical glass ,transmission＞98% ；
4.Surface coating: PTA three-proofing coatings ,
5.Protection:IP66(IP67 optional )
6.Applied thermal balance design and wide temperature electronics ,which could operate under high / low temperature ;
7.Interface : waterproof aviation connector ;
|
|
PT
|
1. Load: 30kg PTZ
2. Range: Pan 0 ~ 360 °, Tilt -45 ° ~ +45 °
3. Speed: horizontal 0.01 °/ S ~ 30 °/ S, pitch 0.01 °/ S ~ 15 °/ S,
support lens focal length speed adaptive function
4. Preset position: 255, support lens zoom, focus preset
5. Accuracy: ±0.1°
6. Patrol sweep: support 6 cruises, 1 apple peel, 1 line sweep
7. Watch: Preset / Auto Cruise Route / Auto Scan Route
8. Power-off memory: support (recoverable position before power-off, preset position status, cruise status, line sweep status)
9. Bearing information: support angle query return, positioning
10. Zero point correction: support north direction zero point remote correction function
11. Power consumption: about 80W
12. Weight: 15kg
|
|
Interface
|
1. Network interface: 1 way RJ45, 10/100 Base-T adaptive (integrated video output and RS422/485 control communication)
2. Network protocol: support TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2. 0, GB28181 and other network protocols
3. Power supply: AC/DC24V, anti-reverse protection
4. Physical interface: alloy waterproof aviation plug
|
|
Enhanced Function
|
1. Glare protection: support, anti-sun burn function
2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature
3. Scene mode: support multiple configuration scenarios, adapt to no environment application
4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes
5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes
6. Lens servo: support lens preset position, focal length return, focus positioning function
7. Parameter setting: OSD menu remote call operation
8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance
|
|
Optional Function
|
1. Wiper: (optional built-in wiper)
2. Window cleaning: (optional external small spray device, self-storing water, no damage to ice, no impact on host function)
3. Expansion module: (optional Beidou / GPS, laser ranging and other extended functions)
4. Optical network: (optional built-in fiber module, single-mode fiber output, improve anti-interference)
|
|
Intelligence Function
|
1. Support regional intrusion detection
2. Support cross-border intrusion detection
3. Support multi-scene group cruise detection
4. Support 3D frame selection zoom / positioning

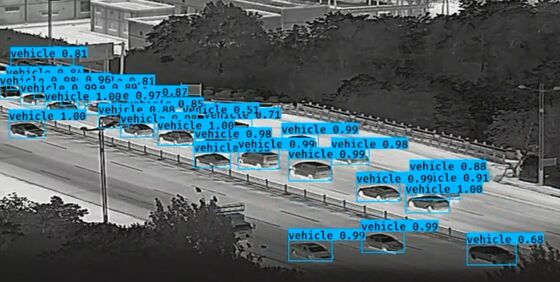

5. Support automatic tracking
6. Support panoramic stitching
7. Support radar linkage
(Note: The above functions need to be coordinated with the key area prevention software)
|
|
Power & Weight
|
1. Total power consumption: 150W
2. Total weight: 35kg (including Pan/Tilt)
|
|
Environment indicator
|
1. Working temperature: -25 ℃~ +60℃ (optional -40 ℃)
2. Storage temperature: -45℃ ~ + 70 ℃
3. Humidity: <90%
4. Earthquake resistance: 0.2g (according to the 5.4 severity level 2 of GB/T15211-2013)
5. Impact resistance: 15g (according to the 5.3 severe level 3 of GB/T15211-2013)
6. Lightning protection: built-in surge protection of interface circuit, power supply 4000V, signal 2000V
7. Anti-salt fog: at pH 6.5 ~ 7.2, continuous spraying for 96 hours, no change in surface
Protection level: IP66
|
Applications:
l Seaport and airport monitoring;
l Water system monitoring;
l Storage monitoring;
l MIL base security monitoring;
l Oilfield & oil depot security;
l Fire source prevention & monitoring;
l Ecological and environmental monitoring;
l Border and coastal defense;
l Urban security and anti-UAV applications;
l Highways and railways monitoring.
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.FAQ:
Q1: What are the key features of the Hope-Wish HP-TVC PTZ Thermal Imaging Camera?
A1: The Hope-Wish HP-TVC features high-resolution thermal imaging, 360-degree pan and tilt capabilities, real-time temperature monitoring, and robust weatherproof design suitable for outdoor surveillance.
Q2: What is the thermal detection range of the HP-TVC model?
A2: The Hope-Wish HP-TVC can detect thermal signatures up to 1000 meters, making it ideal for long-range security and monitoring applications.
Q3: Does the HP-TVC support remote control and monitoring?
A3: Yes, the HP-TVC supports remote operation via a dedicated app and web interface, allowing users to control the pan, tilt, zoom functions and view thermal images in real-time from anywhere.
Q4: What environments is the Hope-Wish HP-TVC suitable for?
A4: The HP-TVC is designed for various environments including industrial sites, border security, firefighting, and wildlife monitoring due to its durable construction and advanced thermal imaging technology.
Q5: What is the power supply requirement for the HP-TVC thermal camera?
A5: The Hope-Wish HP-TVC operates on a 12V DC power supply and also supports PoE (Power over Ethernet) for flexible installation options.
