Product Description:

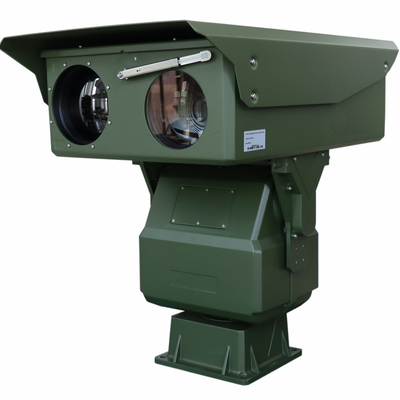

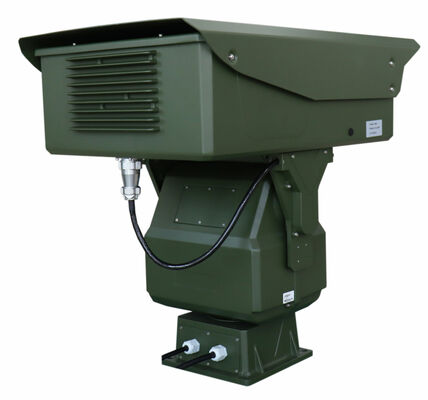

The TTVC121030C-2186 dual-band camera is based on the latest six-generation uncooled infrared technology and high-definition visible light imaging technology, designed for remote day and night monitoring. Infrared thermal imaging with high sensitivity 1280×1024 resolution ultra-fine resolution uncooled focal plane imaging detector, and AS optical technology designed miniaturized infrared lens, advanced digital circuits and image processing algorithms available Fine and smooth image; visible light adopts full HD color black and white dual mode low illumination CMOS sensor and 70 times compact continuous zoom lens, the volume of the whole machine is greatly reduced, which brings great convenience to users' installation applications, supplemented by 360 The full-scale pan/tilt can realize search and observation within 18000m. The internal industrial-grade embedded control electronic system realizes zooming, focusing, mode switching, pan/tilt/rotation high stability control of the camera, and the overall casing adopts super-strong aluminum alloy to achieve IP66 protection level, ensuring the equipment in the harsh environment in the field. Medium and long term operation.
Features:
1. It integrates infrared thermal image, high-definition visible light, video coding, pan/tilt cover and control electronic system. It has integrated design, high concentration and easy installation and use.
2. The latest generation of VOx detectors based on MEMS technology, detection sensitivity (NETD) up to 50mk, higher sensitivity than conventional products, to obtain more delicate picture quality, less affected by fog, rain and snow;
3. Unique AS optical design and high precision optomechanical design for superior image quality;
Excellent non-uniform image correction technology with good image uniformity and dynamic range;
4. SDE image detail enhancement technology, image smooth and noiseless, a variety of pseudo-color and hot black hot white polarity image mode switching, adaptability, easy to find low-contrast hidden targets;
5. Visible light is based on full HD color/black and white dual mode low illumination CMOS sensor design, 70 times compact continuous zoom lens, small size and light weight;
Technical Parameters:
|
Model
|
HP-TTVC121030C-2186
|
|
Detection
|
Vehicle 18000 m Human 8000 m
|
|
Recognition
|
Vehicle 6000 m Human 3000 m
|
|
Sensor
|
UFPA VOx sensor
|
|
Resolution
|
1280×1024
|
|
Spectral response
|
8～14μm
|
|
NETD
|
50mK(@25℃ F1.0)
|
|
Focal length
|
30～300mm
|
|
FOV
|
29.3°×23.5°～2.9°×2.3°
|
|
Lens control
|
1. Zoom: Electric zoom
2. Focus: manual / auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, precise high speed
3. Optical machine: 3CAM mode and AS+DOE optical machine structure, high infrared transmittance, no virtual focus and small axis in the zoom process
|
|
Image Processing
|
1. Image enhancement: SDE digital image enhancement technology to enhance image details
2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities
3. Image parameters: AGC automatic gain control, brightness, contrast
4. Electronic zoom: 1~8X continuous zoom, support global synchronous display
5. NUC correction: automatic / manual correction, background correction
|
|
Visible Camera
|
1. 1/1.8'' target surface star-level CMOS, integrated ICR dual filter day and night switching
2. Resolution: 2 Mega pixels, 1920×1080
3. Illumination: color: 0.0005 Lux; black and white: 0.0001Lux
4. Encoding: H.265/H.264 video format, support multi-stream
5. Video bit rate: 32Kbps ~ 16Mbps, 60Hz 30 frames / sec
6. Support SD card local storage, support mobile detection, occlusion alarm, cross-border detection, area intrusion detection, face detection
7. Support AFR anti fog, electronic stabilization, white balance, electronic shutter, strong light suppression, 3D digital noise reduction, wide dynamic, anti-infrared overexposed, ABF automatic rear coke adjustment function
|
|
Visible Lens
|
1. Focal length: 11~860mm, 2 Mega pixel, electric zoom
2. Infrared correction: Optical infrared correction design, day and night focus consistent
3. Focus: Manual/Auto Focus, 3A Adaptive active Focus algorithm, support a variety of trigger modes, accurate high-speed
4. Automatic aperture: Support
5. Day and night Light: 0.4-0.75um visible Wide Spectral window and 0.8-0.95um near infrared laser narrow spectrum window clock independent double-pass light window to improve the signal-to-noise ratio of imaging light and stray light
6. Preset Position: Precision potentiometer, zoom focus Feedback
|
|
Housing
|
1.Material: integral aluminum alloy housing, stainless steel, anti strong wind ;
2.Structure: Integral double window
3.Window glass: 4mm optical glass ,transmission＞98% ；
4.Surface coating: PTA three-proofing coatings ,
5.Protection:IP66(IP67 optional )
6.Applied thermal balance design and wide temperature electronics ,which could operate under high / low temperature ;
7.Interface : waterproof aviation connector ;
|
|
PT
|
1. Load: 50kg PTZ
2. Range: Pan 0 ~ 360 °, Tilt -45 ° ~ +45 °
3. Speed: horizontal 0.01 ° / S ~ 30 ° / S, pitch 0.01 ° / S ~ 15 ° / S, support lens focal length speed adaptive function
4. Preset position: 255, support lens zoom, focus preset
5. Accuracy: ±0.1°
6. Patrol sweep: support 6 cruises, 1 apple peel, 1 line sweep
7. Watch: Preset / Auto Cruise Route / Auto Scan Route
8. Power-off memory: support (recoverable position before power-off, preset position status, cruise status, line sweep status)
9. Bearing information: support angle query return, positioning
10. Zero point correction: support north direction zero point remote correction function
11. Power consumption: about 120W
12. Weight: 23kg
|
|
Interface
|
1. Network interface: 1 way RJ45, 10/100 Base-T adaptive (integrated video output and RS422/485 control communication)
2. Network protocol: support TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2. 0, GB28181 and other network protocols
3. Power supply: AC/DC24V, anti-reverse protection
4. Physical interface: alloy waterproof aviation plug
|
|
Enhanced Function
|
1. Glare protection: support, anti-sun burn function
2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature
3. Scene mode: support multiple configuration scenarios, adapt to no environment application
4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes
5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes
6. Lens servo: support lens preset position, focal length return, focus positioning function
7. Parameter setting: OSD menu remote call operation
8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance
|
|
Power & Weight
|
1. Total power consumption: 120W
2. Total weight: 25kg (including Pan/Tilt)
|
|
Environment indicator
|
1. Working temperature: -25 ℃~ +60℃ (optional -40 ℃)
2. Storage temperature: -45℃ ~ + 70 ℃
3. Humidity: <90%
4. Earthquake resistance: 0.2g (according to the 5.4 severity level 2 of GB/T15211-2013)
5. Impact resistance: 15g (according to the 5.3 severe level 3 of GB/T15211-2013)
6. Lightning protection: built-in surge protection of interface circuit, power supply 4000V, signal 2000V
7. Anti-salt fog: at pH 6.5 ~ 7.2, continuous spraying for 96 hours, no change in surface
Protection level: IP66
|
Applications:
l Seaport and airport monitoring;
l Water system monitoring;
l Storage monitoring;
l MIL base security monitoring;
l Oilfield & oil depot security;
l Fire source prevention & monitoring;
l Ecological and environmental monitoring;
l Border and coastal defense;
l Urban security and anti-UAV applications;
l Highways and railways monitoring.
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
