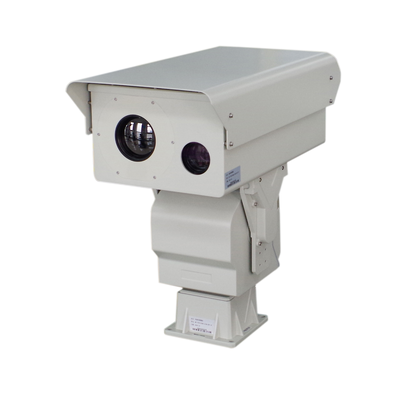

Product Description:
l Unique AS + DOE advanced optical continuous zoom design and 3CAM high precision optical machine design, stable and
smooth zooming, which to conduct to large-scale searching and long-range recognition
l Excellent non-uniform image correction technology with good image uniformity and dynamic range
lSDE image detail enhancement technology, image smooth and noiseless, a variety of pseudo-color and hot black hot white polarity image mode switching, adaptability, easy to find low-contrast hidden targetse.
Technical Parameters:
|
Model
|
HP-TVC6307-2132
|
|
Detection
|
Vehicle: 6.5km,Human:2.5km
|
|
Identification
|
Vehicle:1.8km, Human: 700m
|
|
Thermal Camera System
|
|
Sensor
|
5th generation FPA VOx uncooled detector
|
|
Resolution
|
640*512 (optional 384*288)
|
|
Spectral range
|
7.5～14μm
|
|
NETD
|
50mK (@25℃ F1.0)
|
|
Focal length
|
25mm~75mm, 3X continuous zoom, auto focus
|
|
FOV
|
24°X18°~8°X6°
|
|
Image process
|
1. Image enhancement: SDE digital image enhancement technology to enhance image details
2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities
3. Image parameters: AGC automatic gain control, brightness, contrast
4. Electronic zoom: 2×, 4×, support global synchronous display
5. NUC correction: automatic / manual correction, background correction
|
|
Lens Control
|
1.Zooming: Electrical Zoom. 2.Focusing: Manual/Auto Focus
3. Optical machine: 3CAM mode and AS+DOE optical structure, high infrared over transmission, zoom process without virtual focus, smaller axis.
|
|
Visible Camera System
|
|
Camera
|
1/2.8” star level CMOS, 0.05lux/0.01lux color to B/W CCD
|
|
2 MP ,1920X1080
|
|
Automatic ICR switch
|
|
H.264/H.265 MPEG4/MIPEG
|
|
32Kbps~16Mbps,60Hz30 FPS
|
|
Visible lens
|
8mm～320mm, 2MP electric focus
|
|
Optical IR correction design, diurnal focus
|
|
Housing
|
|
Material
|
High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated
|
|
Structure
|
Integrated single-window design
|
|
Surface coating
|
PTA three-resistance coating, Seawater corrosion resistance
|
|
Temp. Control
|
Built-in thermostat, design of thermal equilibrium
|
|
Interface
|
Aviation waterproof plug
|
|
PTZ
|
|
Load Capacity
|
30kg
|
|
Range/Speed
|
Range:Pan: 0~360°, Tilt: +45°～-45°; Speed: Pan: 0.01～60°/S, Tilt: 0.01～30°/S
|
|
Preset
|
255
|
|
Scan
|
Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising.
|
|
Interface
|
|
Network Interface
|
RJ45
|
|
Network Protocol
|
Support TCP/IP, UDP, IPv4/v6; Support HTTP,RTP,RTSP,NFS,HDCP,NTP,SMTP,,PPPoE,DNS, FTP, Onvif
|
|
Power Supply
|
AC/DC24V, anti-reverse connection protection
|
|
Environment Parameter
|
|
Working/Storage Temp.
|
Working temperature: -25℃~+60℃(-40℃for optional); Storage temperature: -45℃~70℃
|
|
Seismic/Impact Resistance
|
0.2g/15g
|
|
Anti-lighting
|
Built-in auto Fuse-protected device, Power 4000V,Signal 2000V
|
|
Ingress Protection
|
IP 66
|
Applications:
l Seaport and airport monitoring;
l Water system monitoring;
l Storage monitoring;
l MIL base security monitoring;
l Oilfield & oil depot security;
l Fire source prevention & monitoring;
l Ecological and environmental monitoring;
l Border and coastal defense;
l Urban security and anti-UAV applications;
l Highways and railways monitoring.
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
