Product Description:

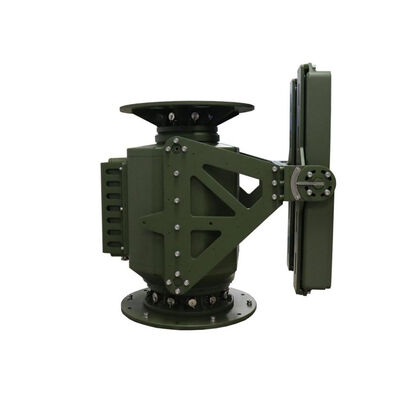

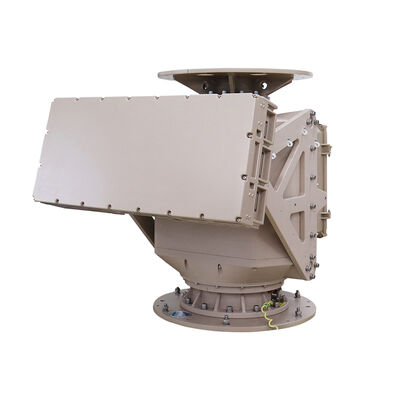

HP Series radar turntable is a servo system, the optical platform consists of a load bracket, a vertical axis, a power assembly, a drive module, a main control module, etc. The single-axis platform adopts a hollow design. The photoelectric load is installed on the top through a connecting flange. The load installed on the
top is directly routed to the bottom of the turntable through the hollow part. The radar load is installed in the middle part, and the bottom is connected to the basic installation platform through a flange.The radar is installed on the bracket of the one-dimensional radar platform and driven by the platform to achieve continuous rotation at any angle of 360°in azimuth.
The fixed part of the platform is equipped with an external electrical interface, and the rotating part is equipped with a load electrical interface. The load mounting bracket has a firm structure, and the mechanical interface can be flexibly customized, which is convenient for loading and unloading of mission loads.
Technical Parameters:
| Model |
HP-RZ701LFZ |
| Optical Platform |
| Rotation |
N*360 ° |
| Max azimuth speed |
≥180°/ S |
| Min azimuth speed |
≤0.1°/S |
| Max azimuth acceleration |
≥90°/s2 |
| Azimuth pointing accuracy |
≤ 0.1° |
| Minimum response time |
≤2s (Stable rotation from 0° to 90°) |
| Pitch bracket adjustment range |
No Less than -25°～10° |
| Communication |
RJ45 |
| Protocol |
Support TCP/IP/ UDP/ IPv4 |
| Power supply |
AC220V±20% |
| Power consumption |
≤100W |
| Dimensions |
≤500*600 (not include support) |
| Working temperature |
-45℃~+65℃ |
| Storage temperature |
-50℃~+70℃ |
| Weight |
≤100kg |
