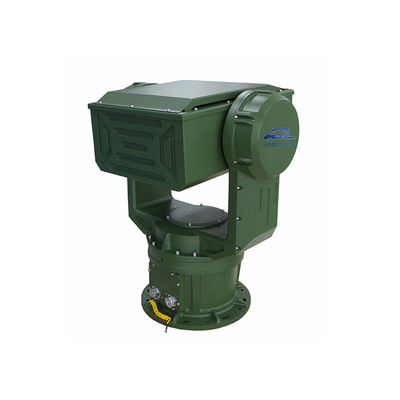

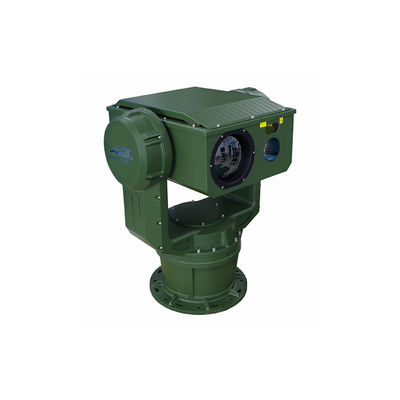

Product Description:
- Combines visible camera, thermal imaging camera (cooled/uncooled), or/and NIR Laser Illumination, multi sensor modules together that suit for long distance monitoring in total darkness and foggy/rainy environment.
- Optional system enhancement like Laser range-finders, GPS, electronic compass, auto-tracking system, AI-analysis module etc... so as to achieve the functions like all-day full dimension monitoring, positioning, tracking, identification etc...
With a detection range of 5-10KM, this thermal imaging camera can detect and identify targets at significant distances, providing early warning and detection capabilities for security personnel and operators. The camera's long-distance capabilities make it a valuable asset for critical infrastructure protection, search and rescue operations, and other surveillance applications that require reliable long-range performance.
In summary, the Long Range Thermal Camera is a powerful and versatile tool for long-distance thermal imaging and surveillance. With its robust design, impressive minimum focus distance, wide spectral range, and extensive detection range, this camera is well-suited for a wide range of applications that demand high-performance thermal imaging capabilities.
Features:
- Wider Detection spectrum: integration of high-definition visible light, medium-wave/long-wave thermal imaging/near infrared laser, complementary advantages of dual sensors detection, combination of active and passive detection, multi-source data aggregation and fusion processing, so that no hidden target, to satisfy the monitoring needs of day, night and all-weather types of environment.
- Faster invert speed adjustment: the rotation speed can reach 80°/s, the acceleration can reach 100°/s2, faster start-stop speed, smooth operation, which helps to quick capture and track moving targets.
- Wider coverage: Pan rotation range of 0° - 360° and Tilt rotation range of - 90° ~ + 90° to achieve dead angle detection and full dimension coverage
Applications:
Anti-UAV control, low-altitude air defense, military base security monitoring, airport monitoring, oil field and oil depot security.
Whether used for military applications to detect potential threats from afar, for monitoring wildlife in natural habitats, or for conducting search and rescue missions in challenging terrains, the Hope-Wish Long Range Thermal Camera excels in providing clear thermal imaging data.
Overall, the Hope-Wish Long Range Thermal Camera is a reliable and advanced solution for professionals and organizations seeking a high-performance thermal imaging camera for long-distance applications.
Technical Parameters:
| Model |
HP-DMA360-TVC4516-2132-LRF |
| Detection |
Vehicle: 13km,Human:4.8km |
| Recognition |
Vehicle:3.4km,Human: 1.3Km |
| UAV Detection |
1.2km~1.5km (Thermal Camera System) |
| UAV Detection |
3km (Daylight camera system) |
| Thermal sensor |
Uncooled Vox sensor, 640*512 resolution |
| Thermal lens |
31~155mm |
| 5X continuous zoom, 8X digital zoom |
| FOV |
Auto focus |
| Image process |
1.Image enhancement: SDE 2.Color: White hot/Black hot
3.Brightness and contrast: 4.AGC, adjustable
5.Digital zoom: 2X/4X 5.Cross: Display 6.Correction: Shutter/Background
|
| Visible camera sensor |
1/1.8'' CMOS |
| 0.0002lux super high sensitive color to B/W CCD |
| 2 megapixels,1920X1080 |
| Automatic ICR switch |
| H.264/MPEG4/MIPEG |
| 32Kbps~16Mbps,60Hz30 FPS |
| Visible camera lens |
12.5～750mm |
| 60X zoom, auto focus |
| LRF |
1km distance |
| PT structure |
U Shape Structure, two/three window design |
| Rotation |
Pan: 0~360°, Tilt: +90°～-45° (Support overhead tracking) |
| Speed |
1.Pan speed: 0.01°～60°/s ; Tilt speed: 0.01°~60°/s
2. Acceleration: 100°/s2 Pan; 100°/s2 Tilt
4. Speed adaptive: with intelligent sensing shifting function, support lens focal length speed adaptive function
5. Speed mode: The highest speed mode can be set
6. Drive mode: direct drive with high torque rare earth permanent magnet synchronous motor, high speed start and stop, smooth and smooth tracking with rad
|
| PT position |
1. Positioning accuracy: 0.01°- 0.02°, high-frequency fine-tuning pulse precision motor drive, digital angle measurement sensor servo
2. Positioning time: less than 4s
|
| Patrol and Scan |
1. Preset: no less than 255
2. Path scanning: support preset point cruise, day and night cruise, line sweep, apple skin scan, scan speed can be set
3. Watch function: support watch preset point line sweep cruise apple skin
|
| Data Feedback |
1. Lens servo: support lens field of view, magnification, ZOOM/FOCUS value query, return, positioning function
2. Pan Tilt angle: support horizontal, vertical angle real-time / query return, positioning function
|
| Track Mode |
1. Support manual control tracking
2. Support radar linkage automatic tracking
3. Support front-end module automatic tracking
4. Support automatic tracking of back-end software
|
| Track Module |
1. Video interface: support visible light/ thermal image video switching tracking
2. Video format: composite video, PAL, NTSC
3. Multi-target detection: support multi-target detection
4. Tracking algorithm: Integrate multiple tracking algorithms, which can be switched manually/automatically according to different scenarios, and support recapture and lock when the target is temporarily lost
5. Target size: adaptive gate, the size of the tracking frame changes automatically according to the target size
|
| Enhance |
1. Heating defrost: oriented industrial window defroster, automatic heating temperature control
2. Power failure memory: support, can restore power off state
3. Motor protection: PT blocking protection, high reliability
4. Fault detection: support power-on self-test, status query and fault code feedback
5. Upgrade maintenance: remote restart, remote upgrade function, convenient system maintenance
|
| Protocol |
1.TCP / IP, HTTP, DHCP, DNS, DDNS, RTP and other network protocols
2. Support ONVIF2.0
3. Pelco-P, Pelco-D and other industry-standard protocol, baud rate 2400,4800,9600,19200 alternative, proprietary protocols can be customized
|
| Power supply |
AC90V~305V to DC48V Turntable rotation power can be controlled in 120W Maximum power consumption 180W |
| Environmental Indicators |
1. Working temperature: -40 ℃ ~ + 60 ℃
2. Storage temperature: -45 ℃ ~ + 70 ℃
3. Humidity: <90%
4. Protection: IP66
|
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.Support and Services:
The Long Range Thermal Camera product is supported by comprehensive Product Technical Support and Services. Our team of experts is dedicated to providing assistance with any technical issues or questions you may have regarding the product. From troubleshooting to software updates, we are here to help ensure that your Long Range Thermal Camera functions optimally.
FAQ:
Q: What is the brand of this long-range thermal camera?
A: The brand of this long-range thermal camera is Hope-Wish.
Q: What is the model number of this thermal camera?
A: The model number of this thermal camera is HP- [insert specific model number here].
Q: Where is this long-range thermal camera manufactured?
A: This long-range thermal camera is manufactured in China.
Q: What is the maximum range of this thermal camera?
A: The maximum range of this thermal camera is [insert range here] meters.
Q: Does this thermal camera come with built-in image processing features?
A: Yes, this thermal camera comes with built-in image processing features to enhance thermal imaging capabilities.
