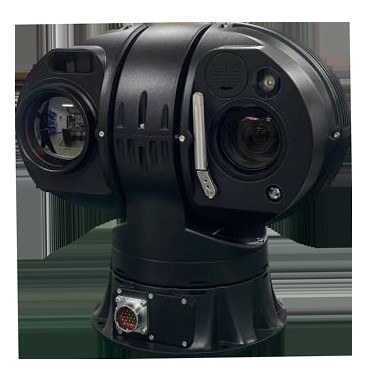

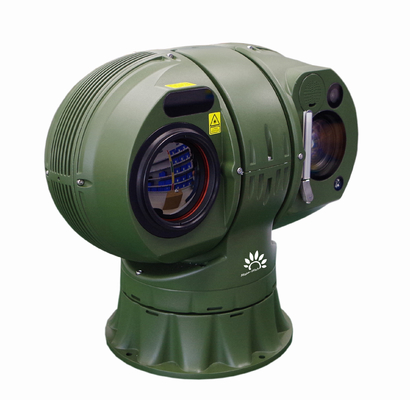

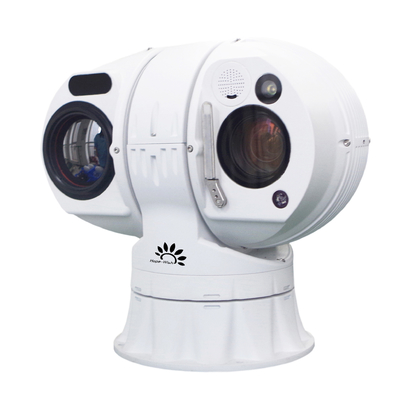

Product Description:
Key Benefits:
- Long range 24-hours monitoring.
- Delicate and smooth images．
- Convenient for installation and application.
- 360 degree of Omni-directional Pan-Tilt
- Super-strong aluminum alloy with IP67
- Higher sensitivity
- Effective in all environments
- Lightweight design: weight ≤ 10kg
The system is equipped with a motorized and manual focus lens, providing users with flexibility and control over the surveillance process. This feature allows for easy adjustment of the lens focus, ensuring clear and sharp images in various scenarios.
Featuring a wide temperature range of -40°C to 1200°C, the Thermal Surveillance System is capable of capturing thermal images across a broad spectrum of temperatures. This capability makes it suitable for diverse applications, including industrial monitoring, firefighting, and security surveillance, among others.
Additionally, with a waterproof rating of IP67, the Thermal Surveillance System offers enhanced protection against water ingress, further enhancing its durability and reliability in challenging conditions. This feature ensures that the system can perform effectively in wet and humid environments without compromising its performance.
In conclusion, the Thermal Surveillance System is a versatile and reliable solution for thermal imaging camera applications that require precision, durability, and performance. With its advanced features, robust construction, and wide temperature range, this system offers exceptional value for users seeking a high-quality thermal surveillance solution.
Features:
- Support image scale, support LRF, support access to multiple sensors.
- Highly intelligent: support hotspots, smoke and fire alarms, temperature detection; support area intrusion detection; support vehicle, boat and human detection, classification and identification; support target tracking, screening and filtering; support AR intelligent information fusion linkage.
- Active defence: support for loud speaker + flashing lights to deter or deny criminals.
- Pitch: -90°to +90°, horizontal 360°continuous rotation, full coverage of 720° three-dimensional space.
- Horizontal: 0.01°/s to 100°/s; pitch: 0.01°/s to 80°/s, high speed start/stop, focal speed adaptive, accurate target positioning.
Technical Parameters:
| Model |
HP-DMS10-12300-50 |
| Detection |
vehicles:4200m
human: 1640m
fire point (@2x2m): 2000m
|
| Recognition |
vehicles:1200m
human: 600m
|
| Thermal imaging Camera |
1.Detector: The sixth generation uncooled focal plane array VOx detector
2. Wavelength: 8～14μm
3. NETD:40mK(@25℃ F1.0)
4. Lens:50mm
5. Image enhancement: SDE digital image enhancement technology, enhance the details of the image, support 255 thermal image enhancement adjustment
6.Pseudo-color polarity: 16 kinds of pseudo-color images, hot black/hot white
7.Image parameters: AGC automatic gain control, brightness, contrast
8.Electronic zoom: 1.0～8.0×continuous zoom (step length 0.1), support global eagle eye diagram
9. Ranging ruler: support for range finding ruler
10.Dead pixel correction: support the function of dead pixel correction
11.Image correction: support manual correction, background correction, automatic correction time interval, adjustable Gamma correction parameters
12.Strong light protection: support anti-sun damage
13.Non-uniformity correction: automatic/hand
|
| Resolution |
Pixel:1280×1024 |
| Visible Camera |
1.Sensor type: back-illuminated ultra-low illumination starlight CMOS
2.Minimum illumination: color: 0.0005Lux @ black and white: 0.0001Lux @ 0Lux(IRON)
3.Lens:7mm～330mm, 47 times optical zoom,16 times digital zoom.
4.Image processing: white balance, electronic shutter, frame accumulation, backlight compensation, glare suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic.
5.Day and night light: 0.4-0.75um visible light wide spectral window and 0.8-0.95um near-infrared spectral window day and night independent double light window, improve the signal-to-noise ratio of imaging light and stray light
6.Support electronic fog penetration and optical fog penetration
|
|
Laser
illuminator
|
1.Laser Homogenization: new infrared GHT-III HD flood light source, no scattered particles
2.Laser angle: 3°~65° switchable
3.Laser distance: 300m
|
| Video audio |
1.Thermal camera resolution:support 1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240
2.Visible camera resolution:2592×1520；2560×1440；1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240
3.Video encoding: H.265/H.264/MJPEG,multi-stream support
4.Video code rate:32Kbps～16Mbps
5.Audio encoding:G.711A/ G.711U/G726
6.Image flip: left and right / up and down / diagonal
7.OSD settings: Support OSD display settings for channel name, time, gimbal orientation, field of view, focal length, and preset bit name settings
|
| Intelligent functions |
1. Fire detection alarm: threshold 255 levels, target size, number of targets 1-16 can be set, automatically select the most prominent target display, hot spot tracking
2. Intelligent analysis: support intrusion detection, boundary crossing detection, entering/leaving area detection, motion detection, wandering detection, people gathering, fast moving, target tracking, items left behind, items taken; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering filtering function; support target temperature filtering filtering function
3. Automatic tracking: support single scene tracking/support multi-scene tracking/support panoramic tracking/support alarm linkage tracking
4. Intelligent information fusion: support 512 AR intelligent information fusion, support fire point, intelligent analysis of the recording logo information fusion, support orientation angle, field of view angle, focal length, multiplier information fusion
5.Image fusion: support 18 kinds of double light fusion mode, support picture-in-picture function
6.Alarm management: support for alarm capture and upload
|
| Enhanced Features |
1. Distance measurement: support passive distance measurement; support optional laser distance measurement.
2. Support sound and light alarm: internal integrated tweeter + flashing light, support alarm sound customization.
3. Support alarm linkage fire fighting device.
4. Camera diagnostic functions: support disconnection alarm, support IP conflict alarm, support illegal access alarm (illegal access times, lock time can be set), support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card), video masking alarm, anti-sun damage (support threshold, masking time can be set).
5. Whole life management: health index record function, support working time, shutter count, working temperature, limit temperature, etc.; zoom lens and head each motor working cumulative time, etc.
6. Support disconnection renewal.
7. Power failure memory: support can restore the position before power failure, preset point state, cruise state, line sweep state.
8. Remote maintenance: with fault query, self-test, remote restart function; online upgrade, remote upgrade.
9. Key frame setting: support key frame interval 100 levels adjustable.
10. Configuration file: support configuration file import and export function.
11. Web access: support WEB full function configuration, remote online upgrade.
|
| PT |
1. Rotation speed: Horizontal: 0.01°/s～100°/s; Pitch: 0.01°/s～80°/s, support focal speed adaption.
2. Rotation angle: horizontal: 360° continuous rotation; pitch: -90°～+90°
3. Structure material: quasi-spherical design of micro-rotary, integrated 5-window multi-channel, fine cast high strength aluminium alloy material.
4. Window glass: infrared/visible high efficiency optical glass, clean film coating.
5. Surface coating: PTA triple anti-corrosion coating, anti-corrosion.
6. Wiper: support intelligent automatic wiper
7. Defrost: visible window defrost
8. Preset position cruise: 3000 preset positions, support 16 cruise routes, each can support 256 preset positions
9. Watch function: preset bit / pattern scan / cruise scan / vertical scan / frame scan / panorama scan / apple skin scan / horizontal fan sweep line scan
10. Support 3D frame selection zoom
11. Orientation information: support angle query/real-time return and positioning; support lens field of view return and positioning
12. Zero point correction: support northward zero point remote correction function
|
| Electrical interface |
1. Communication and control: 1 *RJ45 Ethernet port; 2* alarm inputs, 1 *alarm output; 1 *audio input input, 1 *RS485 interface.
2. Protocol: Support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocols; support ONVIF and GB28181 protocols.
3. Development interface: Support HP-SDK secondary development
|
| Enhanced Function |
1. Glare protection: support, anti-sun burn function
2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature
3. Scene mode: support multiple configuration scenarios, adapt to no environment application
4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes
5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes
6. Lens servo: support lens preset position, focal length return, focus positioning function
7. Parameter setting: OSD menu remote call operation
8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance
|
| Safety control |
1. Support illegal access alarm: the number of illegal access, lock time can be set.
- Support three levels of user rights management, administrator, operator and normal user.
- Security mode: authorized user name and password, support IP whitelist and blacklist, MAC whitelist and blacklist.
- User mis-login lockout
|
| Power supply |
1. Working voltage: DC 9~36V, external AC220V or battery power adapter
- Rated power consumption: ≤40W
- Peak power consumption: ≤60W
|
| Environmental adaptation |
1. Working temperature: -40℃～60℃
- Working humidity: ≤95%
- Protection grade: IP67
- Anti-salt spray: no change in surface after 96 hours of continuous spraying at pH 6.5~7.2
- Electromagnetic compatibility: anti-surge 6KV, anti-static 8KV contact / 15KV air
|
| Volume weight |
1. Weight: ≤10kg
- Size: 312mm×200mm×296mm (L×W×H)
- Mounting: Front / side / wall / hanging / vehicle / tripod pro-rack
|
|
Applications:
· Seaport and airport monitoring;
· Water system monitoring;
· Storage monitoring;
· Oilfield & oil depot security;
· Ecological and environmental monitoring;
· Border and coastal defense;
· Highways and railways monitoring.
With a resolution of 1080p and a 2-megapixel sensor, the HP-DMS delivers sharp and high-definition video footage, making it ideal for security and surveillance applications where image clarity is essential. The system's dimensions of 640 x 512 ensure a compact and versatile design that can be easily integrated into various setups.
Additionally, the thermal surveillance system is equipped with GPS functionality, providing precise positioning accuracy within 10 meters. This feature is particularly valuable in scenarios where accurate location data is crucial for effective surveillance operations.
Overall, the Hope-Wish HP-DMS Thermal Surveillance System is a reliable and advanced solution for a wide range of surveillance applications, offering exceptional performance, durability, and versatility. Whether used for security monitoring, perimeter protection, or other surveillance needs, this system delivers superior capabilities to enhance situational awareness and security measures.
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.Customization:
Product Customization Services for the Thermal Surveillance System:
Brand Name: Hope-Wish
Model Number: HP-DMS
Place of Origin: China
Waterproof: IP67
Image Process: DDE
Type: IP Camera
Protection Grade: IP66, Waterproof And Dustproof
Lens: Motorized & Manual Focus
FAQ:
Q: What is the brand name of this Thermal Surveillance System?
A: The brand name is Hope-Wish.
Q: What is the model number of this Thermal Surveillance System?
A: The model number is HP-DMS.
Q: Where is this Thermal Surveillance System manufactured?
A: This system is manufactured in China.
Q: What are the main features of the Hope-Wish HP-DMS Thermal Surveillance System?
A: The main features include high-resolution thermal imaging, advanced motion detection, remote monitoring capabilities, and weatherproof design.
Q: Is the Hope-Wish HP-DMS Thermal Surveillance System suitable for outdoor use?
A: Yes, this system is designed to be weatherproof and suitable for outdoor surveillance applications.
