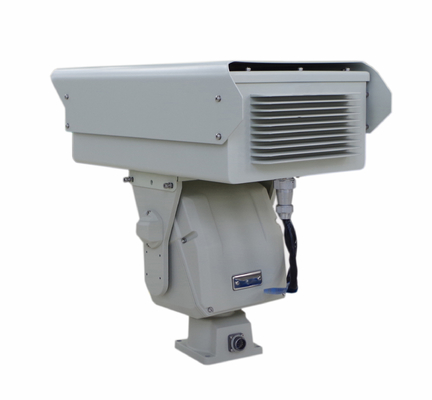

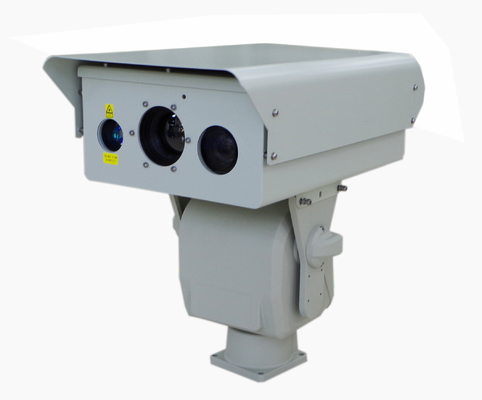

640x512 Resolution Long Range Thermal Imaging Camera With Minimum Focus Distance Of 5-10KM

640x512 Resolution Long Range Thermal Imaging Camera With Minimum Focus Distance Of 5-10KM
640x512 Resolution Long Range Thermal Imaging Camera With Minimum Focus Distance Of 5-10KM 640x512 Resolution Long Range Thermal Imaging Camera With Minimum Focus Distance Of 5-10KM

Large Image :  640x512 Resolution Long Range Thermal Imaging Camera With Minimum Focus Distance Of 5-10KM

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, ROHS, ISO9001
Model Number: HP-TVC6511-2150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 60-180
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 units per month

640x512 Resolution Long Range Thermal Imaging Camera With Minimum Focus Distance Of 5-10KM

Description
Pan: N × 360 ° Continuous Rotation Sensor Type: PTZ Thermal
Detection Range: 5-10KM Minimum Focus Distance: 5-10KM
Spectral Range: 7.5μm To 14μm Tilt: -45 ° ~ + 90 °
Temperature Range: -40°C To +70°C Resolution: 640x512
Highlight:

5-10KM Long Range Thermal Camera

,

640x512 Resolution Thermal Camera

Product Description:

  • Unique AS + DOE advanced optical continuous zoom design and 3CAM high precision optical machine design, stable and smooth zooming, which to conduct to large-scale searching and long-range recognition
  • Excellent non-uniform image correction technology with good image uniformity and dynamic range
  • SDE image detail enhancement technology, image
  • smooth and noiseless, a variety of pseudo-color and hot black hot white polarity image mode switching, adaptability, easy to find low-contrast hidden targetse

The Long Range Thermal Camera operates within a wide temperature range of -40°C to +70°C, ensuring functionality in extreme weather conditions. Whether deployed in hot desert environments or cold arctic regions, this thermal imaging camera remains operational, providing consistent and accurate thermal imaging capabilities.

With its advanced features and robust design, the Long Range Thermal Camera is a versatile surveillance tool suitable for a range of applications. Whether used for border security, perimeter monitoring, or wildlife observation, this thermal imaging camera delivers high-quality thermal imaging for enhanced visibility and detection.

Investing in the Long Range Thermal Camera offers users a reliable and effective solution for long-range surveillance needs. With its exceptional performance, wide detection range, and durable construction, this thermal imaging camera is a valuable asset for security professionals, law enforcement agencies, and surveillance teams requiring reliable thermal imaging capabilities.



Features:

  • Integrates with infrared thermal image, HD visible imaging, video coding, pan/tilt cover and control electronic system
  • Visible imaging adopts with full HD color black and white mode low illumination CMOS sensor and 30 times compact continuous zoom lens.
  • The latest generation of VOx detectors based on MEMS technology, detection sensitivity (NETD) up to 50mk, higher sensitivity than conventional products, to obtain more delicate picture quality, less affected by fog, rain and snow switching of laser switch and camera into day-night mode


Technical Parameters:

Model HP-TVC6511-2150
Detection Vehicle: 8.6km,Human:3.4km
Identification Vehicle:2.4km, Human: 900m
Thermal Camera System
Sensor 5th generation FPA VOx uncooled detector
640*512 resolution (optional 384*288 resolution)
Spectral range 7.5~14μm
NETD 50mK (@25℃ F1.0)
Focal length 25mm~105mm, 5X continuous zoom, auto focus
FOV 30°X23°~6.2°X4.6°
Image process

1. Image enhancement: SDE digital image enhancement technology to enhance image details

2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities

3. Image parameters: AGC automatic gain control, brightness, contrast

4. Electronic zoom: 2×, 4×, support global synchronous display

5. NUC correction: automatic / manual correction, background correction

Lens Control

1.Zooming: Electrical Zoom. 2.Focusing: Manual/Auto Focus

3. Optical machine: 3CAM mode and AS+DOE optical structure, high infrared over transmission, zoom process without virtual focus, smaller axis.

Visible Camera System
Camera 1/2.8” star level CMOS, 0.05lux/0.01lux color to B/W CCD
2 MP ,1920X1080
Automatic ICR switch
H.264/H.265 MPEG4/MIPEG
32Kbps~16Mbps,60Hz30 FPS
Visible lens 8mm~320mm, 2MP, 40X zoom, auto focus
Optical IR correction design, diurnal focus
Housing
Material High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated
Structure Integrated single-window design
Surface coating PTA three-resistance coating, Seawater corrosion resistance
Temp. Control Built-in thermostat, design of thermal equilibrium
Interface Aviation waterproof plug
PTZ
Load Capacity 30kg
Range/Speed Range:Pan: 0~360°, Tilt: +45°~-45°; Speed: Pan: 0.01~60°/S, Tilt: 0.01~30°/S
Preset 255
Scan Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising.
Interface
Network Interface RJ45
Network Protocol Support TCP/IP, UDP, IPv4/v6; Support HTTP,RTP,RTSP,NFS,HDCP,NTP,SMTP,,PPPoE,DNS, FTP, Onvif
Power Supply AC/DC24V, anti-reverse connection protection
Environment Parameter
Working/Storage Temp. Working temperature: -25℃~+60℃(-40℃for optional); Storage temperature: -45℃~70℃
Seismic/Impact Resistance 0.2g/15g
Anti-lighting Built-in auto Fuse-protected device, Power 4000V,Signal 2000V
Weight & Power Consumption
Weight: 35kg (include PT); Power consumption: 150W


Company:



Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

640x512 Resolution Long Range Thermal Imaging Camera With Minimum Focus Distance Of 5-10KM 0
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
640x512 Resolution Long Range Thermal Imaging Camera With Minimum Focus Distance Of 5-10KM 1

Applications:

The Hope-Wish HP-TTVC Long Range Thermal Camera is a high-quality thermal imaging camera suitable for a variety of applications. With its advanced features and specifications, this camera is ideal for use in a wide range of scenarios.

Product Application Occasions and Scenarios:

1. Surveillance and Security: The Long Range Thermal Camera from Hope-Wish is perfect for surveillance and security applications. With its long-distance thermal imaging capabilities, it can detect intruders or potential threats from afar, making it an ideal choice for monitoring large areas such as borders, airports, and military installations.

2. Search and Rescue Operations: The HP-TTVC camera is well-suited for search and rescue operations in challenging environments. Its thermal imaging technology can help locate missing persons or survivors in low-visibility conditions, such as dense forests or dark nights.

3. Industrial Inspections: This Long Range Thermal Camera is also useful for industrial inspections, especially in hazardous or hard-to-reach areas. Its temperature range of -40°C to +70°C allows for accurate thermal analysis of equipment, pipelines, and machinery.

4. Wildlife Monitoring: Researchers and wildlife enthusiasts can benefit from using the Hope-Wish thermal camera for wildlife monitoring. Its long-range capabilities enable capturing clear thermal images of animals in their natural habitat without disturbing them.

5. Fire Detection and Prevention: The HP-TTVC camera can also be used for fire detection and prevention purposes. Its high resolution of 640x512 ensures clear thermal images, making it easier to identify hotspots or potential fire hazards in buildings or forests.

With a weight of 15kg and versatile tilt and pan features (-45 ° ~ + 90 ° tilt, N × 360 ° continuous rotation pan), the Hope-Wish HP-TTVC Long Range Thermal Camera offers flexibility and ease of use in various settings. Designed in China, this thermal imaging camera is a reliable and efficient tool for professionals in different industries.



Support and Services:

The Long Range Thermal Camera product offers comprehensive Product Technical Support and Services to ensure optimal functionality and performance. Our technical support team is available to assist with any troubleshooting, configuration, or maintenance issues that may arise. In addition, we provide regular software updates and firmware upgrades to keep the camera system up-to-date with the latest features and improvements.



FAQ:

Q: What is the brand name of this long-range thermal camera?

A: The brand name of this camera is Hope-Wish.

Q: What is the model number of this long-range thermal camera?

A: The model number of this camera is HP-TTVC.

Q: Where is this long-range thermal camera manufactured?

A: This camera is manufactured in China.

Q: What is the maximum range of this long-range thermal camera?

A: The maximum range of this camera is 5 kilometers.

Q: Does this long-range thermal camera come with night vision capability?

A: Yes, this camera is equipped with night vision capability for enhanced visibility in low-light conditions.
