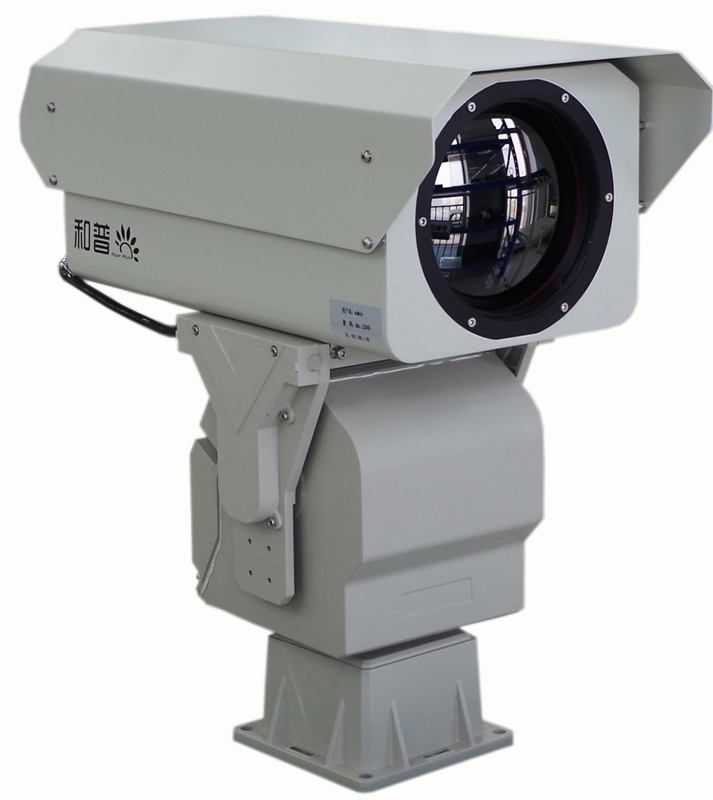

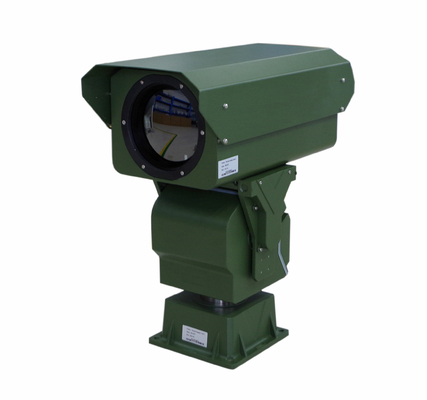

50mK Thermal Camera Outdoor Surveillance Long Range Ptz Camera

50mK Thermal Camera Outdoor Surveillance Long Range Ptz Camera
50mK Thermal Camera Outdoor Surveillance Long Range Ptz Camera
50mK Thermal Camera Outdoor Surveillance Long Range Ptz Camera 50mK Thermal Camera Outdoor Surveillance Long Range Ptz Camera 50mK Thermal Camera Outdoor Surveillance Long Range Ptz Camera

Large Image :  50mK Thermal Camera Outdoor Surveillance Long Range Ptz Camera

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE,FCC
Model Number: HP-TC4516
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: wooden case
Payment Terms: L/C, T/T, Western Union

50mK Thermal Camera Outdoor Surveillance Long Range Ptz Camera

Description
NETD: 50mK INTERFACE: PAL/NTSC Video Output
Sensor: Uncooled UFPA Sensor Resolution: 336*256/640*512
Lens: 31-155mm Interface: PAL/NTSC
Highlight:

50mK Thermal Camera

,

Outdoor Surveillance Thermal Camera

,

long range ptz camera

Feature

  1.  NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather.
  2. SDE digital image processing, no image noise, 10 pseudo color image and B/W, B/W inverse.
  3.  Non-uniform image correction technology, stable working temperature without TEC, good image uniformity and dynamic range.
  4. Special AS optical zooming lens and 3CAM high-precision optomechanical design suit for both large-scale seeking and long-distance watching.
  5. One integral aluminum alloy housing, weatherproof IP 66, waterproof, anti-dust.

Application

Oilfield safety, railway&freeway security, river&airport security, forest fire prevention, city safety.



Technical specification



Model TC4412A TC4516A TC4519A
Detection Vehicle:10000m Vehicle: 13000m Vehicle: 16400m
Human:4000m Human: 4800m Human: 5800m
Identification Vehicle:2800m Vehicle:3400m Vehicle:4200m
Human:1000m Human:1300m Human: 1600m
Sensor 5th generation UFPA sensor
Resolution 336*256 pixel (640*512 optional)
Spectral 7.5 ~ 14μm
NETD 50mK (@25 ℃ F1.0)
Focal length 30 ~ 120mm 31 ~ 155mm 38 ~ 190mm
FOV(H) 11° ~ 2.8° 11.2° ~ 2.2° 9.5° ~ 1.9°
Lens control Motorized zoom and focus(optional auto focus)
Lens design AS+DOE Advanced optical design, High infrared transmittance
Zoom without virtual focus
Image processing Stable operational temperature without TEC, starting time less than 4 seconds
SDE digital image processing
10 pseudo color and B/W, B/W inverse
AGC
2X digital amplification
Housing Material : High strength aluminum alloy shell , waterproof seal , To avoid the growth of mold and moisture generated
Interface : Aviation waterproof plug
PT ( optional ) Duty: 20kg
Rotation: Pan: 0 ~ 355°, Tilt: -60 ~ +10°
Rotation speed: Pan: 9°/S, Tilt: 4°/S ,
Preset 32 ( Optional variable speed PT )
Interface RS-485 ( PELCO D protocol, baud rate 2400bps
Remote OSD setting
PAL/NTSC video output
AC24V ( DC12V optional)
Waterproof connector
Environment Operating temperature : -25 ℃~ +55 ℃( -40 ℃ optional )
Storage temperature : -35 ℃~ +75 ℃
Humidity : <90%
Anti-lighting : built-in auto Fuse-protected device, Power 4000V , Signal 2000V
Ingress protection : IP66

Applications:

  • Seaport and airport monitoring;
  • Water system monitoring;
  • Storage monitoring;
  • Military base security monitoring;
  • Oilfield & oil depot security;
  • Fire source prevention & monitoring;
  • Ecological and environmental monitoring;
  • Border and coastal defense;
  • Urban security and anti-UAV applications;
  • Highways and railways monitoring.

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

50mK Thermal Camera Outdoor Surveillance Long Range Ptz Camera 0
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
50mK Thermal Camera Outdoor Surveillance Long Range Ptz Camera 1







.
