Product Details:
|
| Sensor Type: | PTZ Thermal | Resolution: | 640x512 |
|---|---|---|---|
| Tilt: | -45 ° ～ + 90 ° | Pan: | N × 360 ° Continuous Rotation |
| Minimum Focus Distance: | 5-10KM | Detection Range: | 5-10KM |
| Temperature Range: | -40°C To +70°C | Spectral Range: | 7.5μm To 14μm |
| Highlight: | Long Distance Thermal Camera,Ship Mounted Thermal Camera,Multi Sensor Thermal Camera |
||

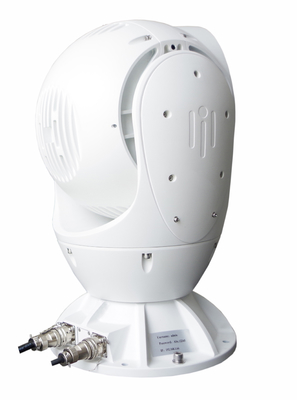

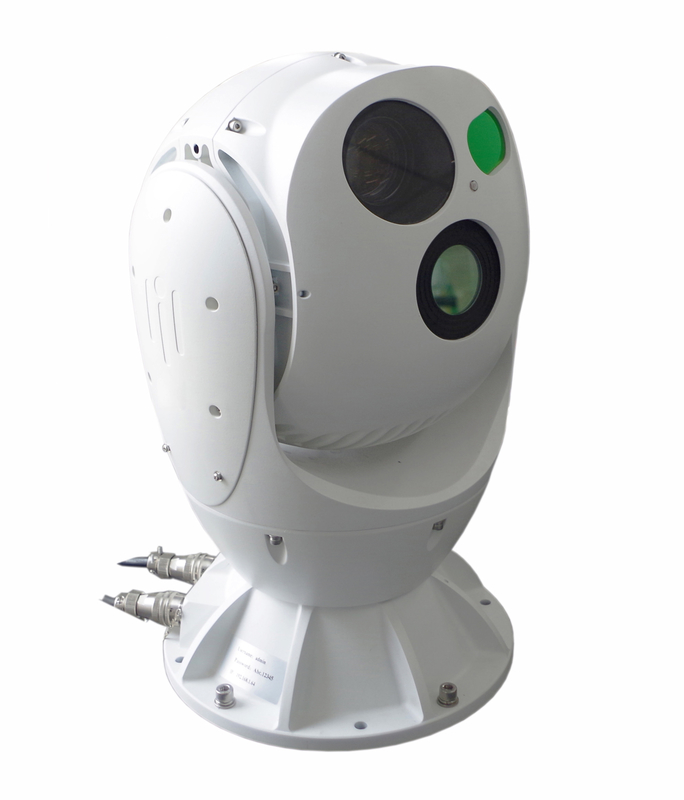

ZS20 Ship Mounted Multi-sensor Camera integrates HD visible light camera, uncooled thermal camera, laser ranging finder, automatic tracking, gyro stabilization, intelligent analysis and precise electronic control. It is designed for ship / shipboard video acquisition and sea surface warning, key target warning, radar linkage and other applications designed long-distance detection system, which can adapt to all-weather,all-time, full-dimensional discovery, positioning, tracking, identification and tracking of the target function, the smallest distance to small ships and islands can be up to 8 km.
Military quality design, the shell is made of super strong aluminum alloy material, spherical low wind resistance design, strong wind resistance, low agitation. Adopting internal and external double-layer "three-proof" technology and vacuum nitrogen-filled sealing technology, the protection grade of the whole machine reaches IP66, and the special salt-spray protection design, the protection grade reaches C5-M level, which effectively ensures the long-term stable operation of the equipment in the harsh ring mirror of the sea.
Overall, the Long Range Thermal Camera is an excellent choice for any outdoor surveillance or security application. With its long-distance thermal imaging capabilities, lightweight design, and impressive temperature range, this camera is sure to provide reliable and accurate surveillance.
This Long Range Thermal Camera is a top-of-the-line thermal imaging camera that boasts a tilt range of -45 ° to + 90 °, a minimum focus distance of 5-10KM, and a N x 360 ° continuous rotation pan. It weighs in at 15kg and has a detection range of 5-10KM, making it an ideal choice for long-range surveillance and monitoring.
Ship / shipboard video collection, sea warning, important target alert, etc.
In conclusion, the Hope-Wish HP-ZS20 Long Range Thermal Camera is a highly advanced and versatile camera that is ideal for a wide range of applications. Whether it is being used for surveillance and security purposes, industrial monitoring, or military applications, the camera's advanced features make it an excellent choice for any situation that requires long-distance thermal imaging capabilities.
The Long Range Thermal Camera product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to provide assistance with installation, operation, and maintenance of the camera system. In addition, we offer regular software updates to ensure that the camera is up-to-date with the latest features and functionalities. We also provide training sessions to help users maximize the capabilities of the camera system. Our goal is to provide reliable and efficient technical support and services to our customers to ensure that they get the most out of their investment in our Long Range Thermal Camera product.
Technical Parameters:
| Model | HP-ZS20 Ship mounted multi-sensor Camera |
| Rotation range |
1. Pan: N × 360 ° continuous rotation 2. Tilt: -45 ° ～ + 90 ° 3. Limit: The pitch has a soft limit function, the program can be set |
| Spinning speed |
1. Horizontal speed: 0.1 ° ～ 80 ° / s 2. Pitching speed: 0.1 ° ～ 80 ° / s 3. Acceleration: horizontal 120 ° / s2, pitch 120 ° / s2 4. Drive mode: direct drive with vigorous torque rare earth permanent magnet synchronous motor, high-speed start-stop, smooth tracking with radar linkage |
| Positioning accuracy | Positioning accuracy: up to 0.02 °, high-frequency fine-tuning pulse precision motor drive, digital angle sensor servo |
| Turntable zero position | 1.Zero setting: support the setting of pan and pitch zero |
| Stability accuracy | 2mrad (RMS), two-axis gyro stable |
| Cruise scan |
1. Preset position: no less than 255 2. Path scan: support preset point cruise, line scan, scan speed can be set 3. Watch function: support watch preset, line scan and cruise |
| Data return |
1. Lens servo: support lens field of view, magnification, ZOOM / FOCUS value query, return, positioning function 2. Turntable angle: support real-time / query return and positioning functions of horizontal and pitch angles |
| Tracking mode |
1. Support manual control tracking 2. Support radar linkage automatic tracking 3. Support front-end module automatic tracking (optional) 4. Support automatic tracking of back-end software |
| Enhancement |
1. Motor protection: turntable blocking protection, high reliability 2. Fault detection: support power-on self-check, status query and fault code feedback 3. Upgrade and maintenance: remote restart, remote upgrade function, convenient system maintenance |
| Electrical Interface |
1. Network interface: 1 channel 10M / 100M adaptive Ethernet port (including thermal image + high-definition visible light + RS422 / 485 control) 2. Power source: 1 way DC24V 3. Physical interface: military-grade aviation waterproof plug, protection grade IP67 |
| Protocol |
1. Network protocol: support TCP / IP, UDP, IPv4 / v6, HTTP, RTP, RTSP; support Onvif, GB28181 network video protocol 2. PTZ control protocol: Pelco-D industry standard and other multi-protocols, baud rate 2400, 4800, 9600, 19200 optional, customizable private protocol |
| Environmental index |
1. Working temperature: -25 ℃ ～ + 60 ℃ 2. Storage temperature: -30 ℃ ～ + 70 ℃ 3. Humidity: <95% RH 4. Anti-lightning surge: power supply 4000V, communication video signal 2000V 5. Anti-salt spray: PH value 6.5 ~ 7.2, continuous spraying for 96 hours, can still work normally 6. Vibration resistance: meets GJB150A.16 shipboard environmental requirements 7. Protection level: IP67 |
| Machine power supply |
1. Power supply: equipped with ultra-wide input power adapter, AC90V ～ 305V to DC24V 2. Power consumption: The maximum power consumption of the turntable ≤250W, the stable power consumption ≤50W |
| Volume and weight |
|
| Cameras | |
| Visible Camera |
1. Detector: 1/3 "low illumination CMOS 2. Resolution: 1920 × 1080 (2 million pixels) 3. Illumination: color 0.002 Lux ＠ (F1.2, AGC ON), black and white 0.0002Lux ＠ (F1.2, AGC ON) 4. Lens focal length: 8 ～ 256mm continuous zoom 5. Action distance: Under the conditions of atmospheric visibility greater than 10km, air humidity less than 50%, and background imperviousness, the action distance to small ships or islands and reefs can reach 8km. 6. Lens control: electric zoom, manual / auto focus 7. Interface and video format: IP network output, H.265 / H.264 |
|
Cooled Thermal Camera (Optional) |
1. Detector: Cooled Mercury Cadmium Telluride (MCT) infrared focal plane 2. Spectral range: 3μm ～ 5μm 3. Resolution: 640 × 512 4. Pixel size: 15μm 5. Temperature sensitivity (NETD): better than 15mk (@ F4.0, 25 oC) 6. Lens focal length: 30 ～ 300mm continuous zoom 7. Action distance: when the atmospheric visibility is greater than 10km, the air humidity is less than 50%, and the target and background temperature difference is greater than 5K, the action distance to small ships or islands and reefs can reach 8km. 8. Focusing mode: manual / automatic focusing (automatic focusing supports zoom trigger, lens temperature trigger, scene detection trigger) 9. Electronic zoom: 2X, 4X, support global synchronous display 10. Polarity: hot white, hot black and 16 kinds of false colors, support multi-configuration scene mode 11. Correction: automatic / manual / background correction 12. Image adjustment: brightness, contrast, AGC automatic control 13. Image enhancement: SDE digital detail enhancement function 14. Strong heat source protection: support 15. Starting time: ≤7min (under normal temperature) |
|
Uncooled Thermal Camera(Optional) |
1. Detector: The fifth generation of VOx uncooled detector 2. Spectral range: 8μm ～ 12μm 3. Resolution: 640 × 512 4. Lens focal length: 25 ～ 75mm, 8X electronic zoom, optical-electronic fusion relay zoom 5. Sensitivity: NETD is better than 40mk; 6. Focus control: electric zoom, manual / auto focus 7. Strong light protection: anti-sun burn function 8. Ranging ruler: adaptive optical zoom proportional zoom 9. Life index: recording function (cumulative working time, shutter times, limit temperature, environment 10. temperature, core device temperature), can be viewed in real time through the web |
|
Laser Ranging (Optional) |
1. Wavelength: 1570nm 2. Measuring range: 100 ～ 5000m 3. Ranging accuracy: ± 3m 4. Repetition frequency: 0.2Hz 5. Control: RS422 |
|
Laser lighting (Optional) |
1. Wavelength: 808nm 2. Power: 5W 3. Laser lens: 2 ° -30 ° 4. Angle control: DSS digital step lighting angle control technology |
| Recommended configuration of monitoring workstation | |
|
Host configuration (Recommended only, provided by user) |
CPU: 6 cores (i7 8700 and above) Memory: 16GB or more Hard Disk: 1TB SATA Display: resolution 1920 * 1080 Network: LAN or 100M Ethernet System: Windows 7 or Windows 10 Database: MySQL 5.1 and above Other: Windows SDK, MFC bottom support library Power supply; keyboard, mouse, etc. |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Here are some frequently asked questions and answers about the Hope-Wish HP-ZS20 Long Range Thermal Camera:
Q: What is the maximum range of the HP-ZS20 Long Range Thermal Camera?
A: The maximum range of the HP-ZS20 Long Range Thermal Camera is 20 kilometers.
Q: What is the resolution of the HP-ZS20 Long Range Thermal Camera?
A: The resolution of the HP-ZS20 Long Range Thermal Camera is 640 x 512 pixels.
Q: Can the HP-ZS20 Long Range Thermal Camera be used in harsh weather conditions?
A: Yes, the HP-ZS20 Long Range Thermal Camera is designed to withstand harsh weather conditions and has an IP66 rating.
Q: What is the operating temperature of the HP-ZS20 Long Range Thermal Camera?
A: The operating temperature of the HP-ZS20 Long Range Thermal Camera is -40°C to 60°C.
Q: Where is the HP-ZS20 Long Range Thermal Camera manufactured?
A: The HP-ZS20 Long Range Thermal Camera is manufactured in China.
